EOC COLLET
4 month ago
EOC Collet Chuck EOC OZ Collet , We produce alll size of 1mm-20mm EOC collets, and full range of EOC6A, EOC8A, EOC10A, EOC12A, EOC16A, EOC20A, EOC25A, EOC32A, EOC40A and EOC50A collets. We have exported to humorous countries, and establish good cooperate relationship. Accuracy is from 0.005mm to 0.015 for your reference. We also manufactures kinds of CNC machine tool accessories including collet chucks, pull studs, retention knob, spanner and wrench and other related products.
EOC Collet Specification
1.EOC Collet Product Name: high precision and high life EOC (OZ) collet
2.Precision Collet .Material: 42CrMo
3.Eoc Milling Collet Product hardness: 46-50HRC
4.EOC Collet Surface roughness: Ra0.4
5.Collet Type: EOC
6.EOC Collet appearance: light coating (anti-corrosion, abrasion resistance, cleanliness number, accuracy and stability, smooth surface, feel comfortable, look more beautiful)
7.Eoc Spring Collet accuracy: 0.01mm, 0.015mm
When ordering, please indicate the accuracy grade

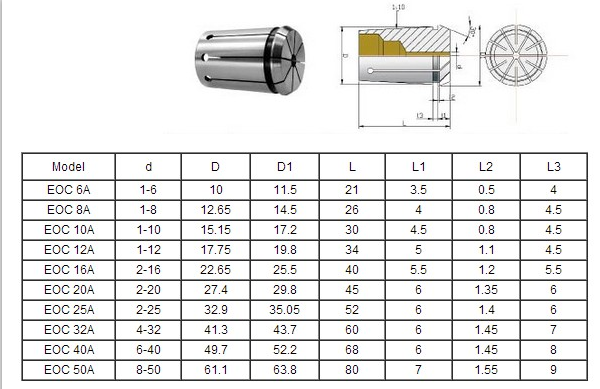

| Modle No. | D | D1 | Dh7 | l | L1 | L2 | L3 |
| EOC 6A | 10 | 11.5 | 1--6 | 21 | 3.5 | 0.5 | 4 |
| EOC 8A | 12.65 | 14.5 | 1--8 | 26 | 4 | 0.8 | 4.5 |
| EOC 10A | 15.15 | 17.2 | 1--10 | 30 | 4.5 | 0.8 | 4.5 |
| EOC 12A | 17.75 | 19.8 | 1--12 | 34 | 5 | 1.1 | 4.5 |
| EOC 16A | 22.65 | 25.5 | 2--16 | 40 | 5.5 | 1.2 | 5.5 |
| EOC 20A | 27.4 | 29.8 | 2--20 | 45 | 6 | 1.35 | 6 |
| EOC 25A | 32.9 | 35.05 | 2--25 | 52 | 6 | 1.4 | 6 |
| EOC 32A | 41.3 | 43.7 | 4--32 | 60 | 6 | 1.45 | 7 |
| EOC 40A | 49.7 | 52.2 | 6--40 | 68 | 6 | 1.45 | 8 |
| EOC 50A | 61.1 | 63.8 | 8--50 | 80 | 7 | 1.55 | 9 |
