Product details

Introducing the Vial Medical Glass Plastic Bottle Filling Machine - your ultimate solution for precise and efficient bottle filling. Seamlessly integrate it with the Vial Filling Machine, Pharmaceutical Medical Filling Machine, and Vial Bottle Filling Machine for a complete production line. Experience accurate dosing and reliable filling for vials, medical glass bottles, and plastic bottles. Achieve unmatched precision and quality in every fill. Elevate your pharmaceutical and medical production with the Vial Medical Glass Plastic Bottle Filling Machine.

Structure and performance specification

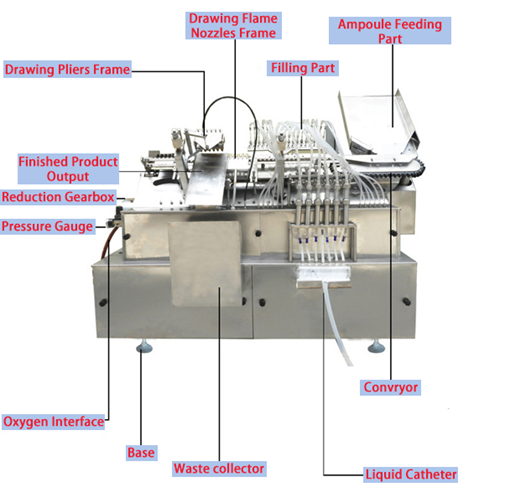

This machine is a new generation single machine multi nozzles drawing and filling sealing machine. It adopts the rectangular feeding instead of the traditional ampoule feeding methods. In such case, the feeding is steady with no easy broken ampoule. The ampoule feed hopper has the modern clutch. Therefore, the ampoule feeding can be stopped at any time while the machine is still running. So the ampoule lost can be reduced. In the part of stopping filling where changes electromagnetic switch into mechanical switch. It is reliable and durable. The output mechanism has abandoned the traditional bottle output method, which makes the bottle management more reasonable and the yield of products higher.
It is suitable for ampoule filling, sealing and drawing in pharmaceutical factories. This machine is an eight position stepping drive system. Each time, eight bottles are sent to each process point as a group to complete the bottle preheating, drawing, nitrogen filling before, liquid filling, nitrogen filling after, preheating, drawing and sealing processes.

Product Model	6 nozzles	8 nozzles
Specification	1-2ML 5-10ML 20ML	1-2ML
Production capacity	100-200 pcs/min	250-300 pcs/min
Power Supply	380v 50HZ	380v 50HZ
Power	0.75kw	0.75kw
Sealing gas	A. Gas+oxygen B. Liquefiedgas+oxygen	A. Gas+oxygen B. Liquefied gas+oxygen
Gas consumption	Pipeline gas 3-4m ³/ h LPG0.08-0.1Mpa	Pipeline gas 3-4m ³/ h LPG0.08-0.1Mpa
Combustion supporting gas volume	Oxygen 1m ³/ h 0.1Mpa	Oxygen 1m ³/ h 0.1Mpa
Dimension	1850(L)×1100(W)×1300(H)mm	1850(L)×1100(W)×1300(H)mm
Weight	About 450kg	About 450kg
