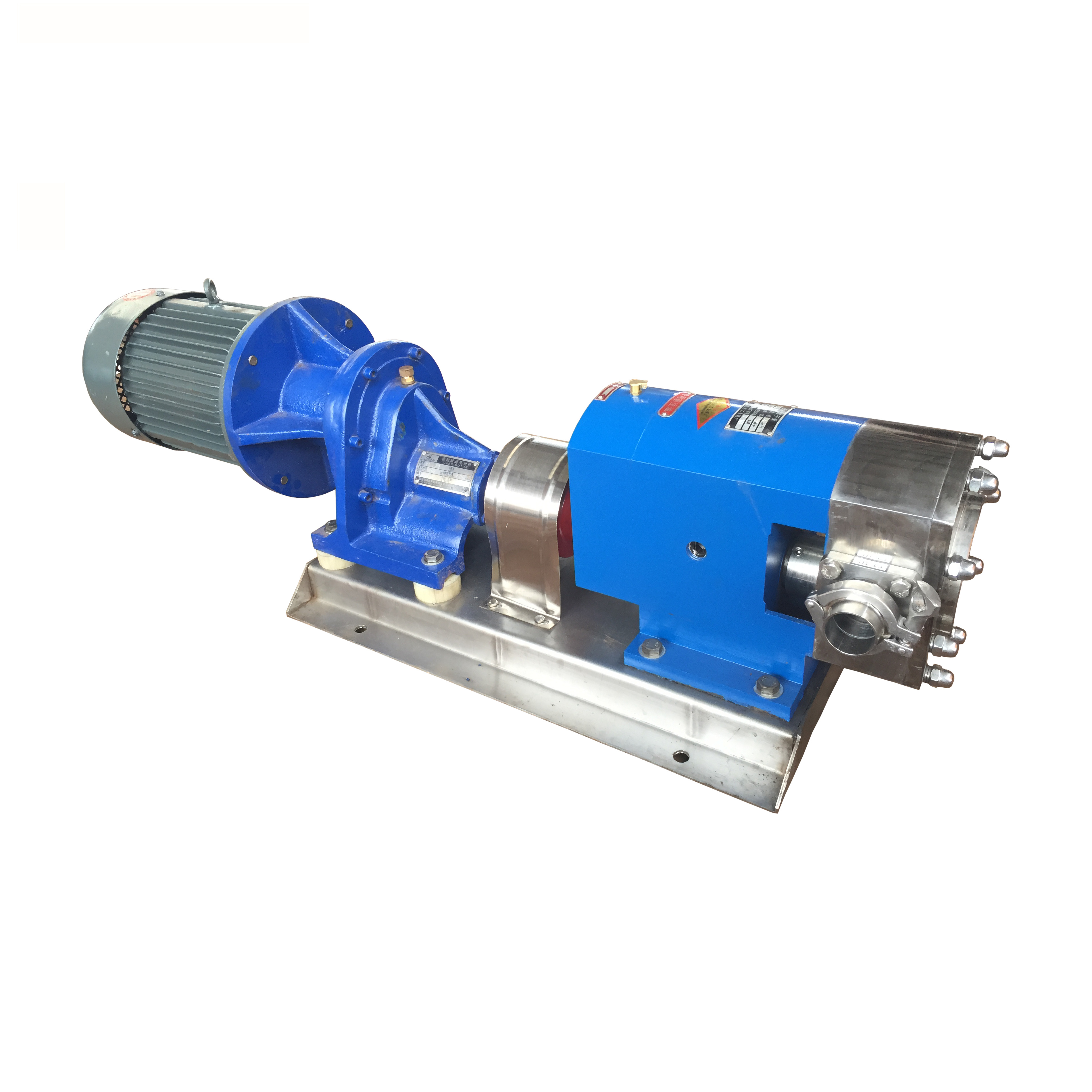

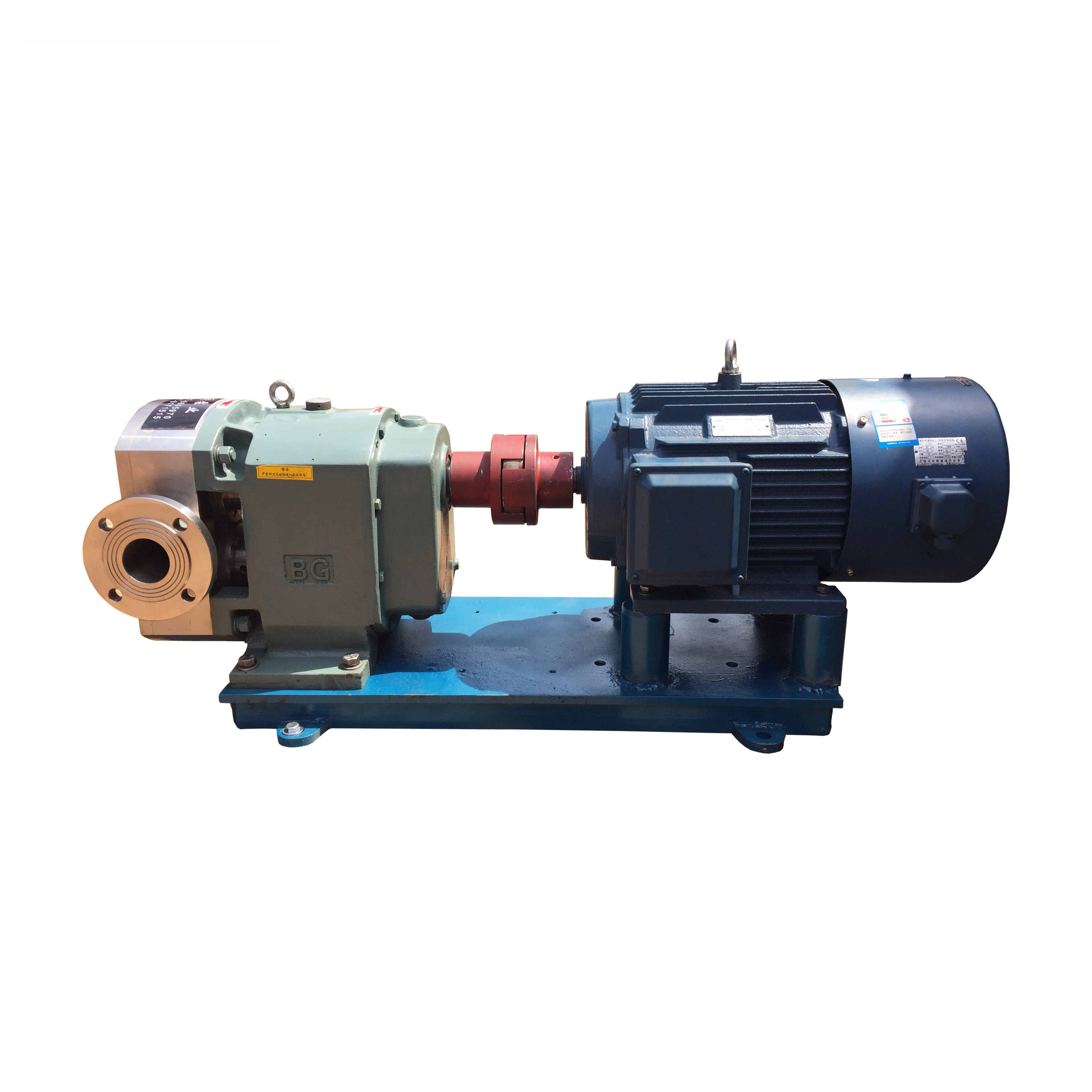

Stainless Steel Liquid Food Pump Lobe Pump Cam rotor pump for Concentrated juice,honey1

Rotary pump

The rotary pumps are multi-functional and bi-directional pumps. They are manufactured after years of research and with advanced technologies.

The products use two synchronic rotors, the rotors are driven by a pair of outer-set synchronic gear boxes and the transmission shaft. They move

synchronically in counter-clockwise directions. Consequently, builds up high vacuum capacity and emission pressure. It is particularly suitable for

the pumping of pharmaceutical grade, high-corrosive and high-viscous materials.

The product is classified into sub-standard medical grade, corrosion-resistant, sludge three series; the structure of the high-pressure high-viscosity,

high-pressure and low viscosity two categories; ordinary type, food grade, chemical and oil based, special five series according to the different

characteristics of different media, using different materials and different forms enclosed manufacturing, and materials to meet the characteristics of

different media, using different materials and different formsenclosed manufacturing and materials to meet the various needs of the production process

to improve the delivery of professional products. Our motor design has 12 varieties and each rotor can be used interchangeably on the same pump.

1. The pharmaceutical pumps are made of stainless steel 316, in full compliance with the GMP requirements of FDA.

2. Corrosive-resistant pumps are made of corrosive-resistant stainless steel and high-polymer reinforced materials.

3. Sludge pump make breakthrough not only in structure, but also in the use of special wear-resistant materials. They are very helpful to the

wear-resistance of the pumps and the transmission of slush.
