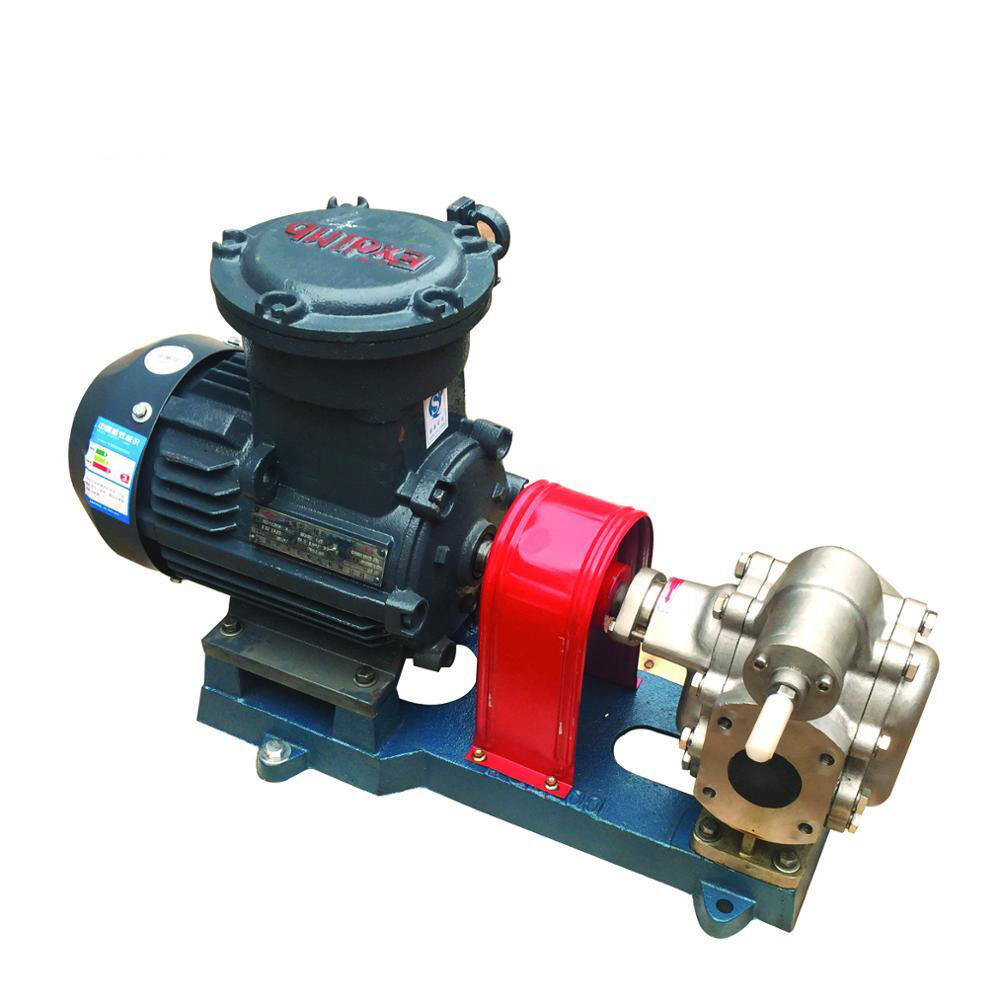

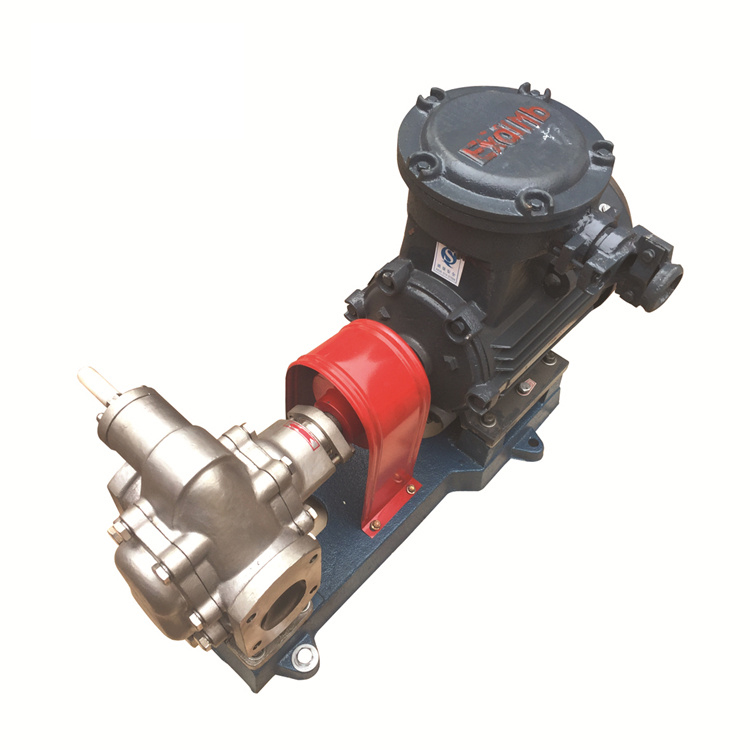

KCB Marine Hydraulic High Pressure Transfer Gear Oil Pump1

KCB Marine Hydraulic High Pressure Transfer Gear Oil Pump

Product parameters and introduction

    KCB series gear pump are mainly composed of gears, axles, pump cover, safety valve and axle-end seals etc. The heat-treatment gears have the advantage of higher hardness and intensity, and rotate with the axles inside the replaceable bearing sleeves. All of pumps’s parts can be lubricated by delivered medium when working.

        The pump is properly designed with leakage and return chute, which lets the gears bear the least torque force and reduces load and wear on bearings in order to raise pumps’ efficiency.

It is also designed with safety valve for protection against overload. The full return flow pressure of the safety valve is higher than the rated exhaust pressure of the pump. It can be also adjusted within the allowance of exhaust pressure range according to circumstances. But please note the safety valve can't be applied as pressure reducing valve for long time. You may install pressure reducing valve separately on pipe-line if needed.

The direction of rotation is clockwise viewed from coupling end
