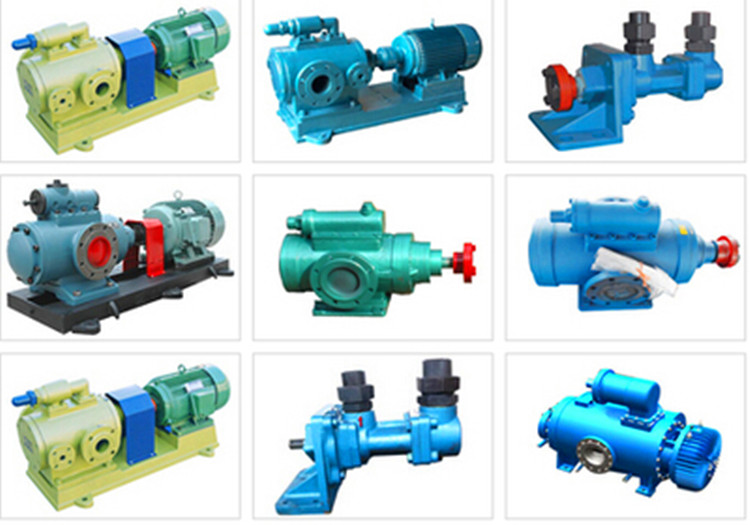

3G series three screw pump

  Introduction

3 G series Marine three-screw pump is used to transfer temperature below 150 °C, the viscosity 3- 760 cst, containing no solid particles, non-corrosive, has the lubrication performance of the medium.Jacketed heat preservation screw pump.

Apply pressure range: 0.6 to 2.5 Mpa;

Applicable flow range: 0.6-123 m3 / h.

Is mainly used in oil transportation, hydraulic engineering, Marine engineering, petrochemical and other industries.

 3G series three screw pump advantages

(1)Medium is delivered in axial direction continuously without agitation and pulsation.

(2)Small vibration and low noise

(3)High pressure and high efficiency

(4)Simple structure,easy disassembly and assembly

(5)Small volume and lighe weight

(6)Slight wear and long life of the pump

 3G series three screw pump Application Scope

Structure

The pumps are sealed generally by mechanical seal and driven by the motor through the claw coupling.

Jacketed heat preservation screw pump.

Material: The driving and driven screw 16MnCrS5,40Cr,45,38CrMoALA Pump casing: HT200,QT450-10,ZCuSn10Pl,ZG270-500
