Scissor Car Lift

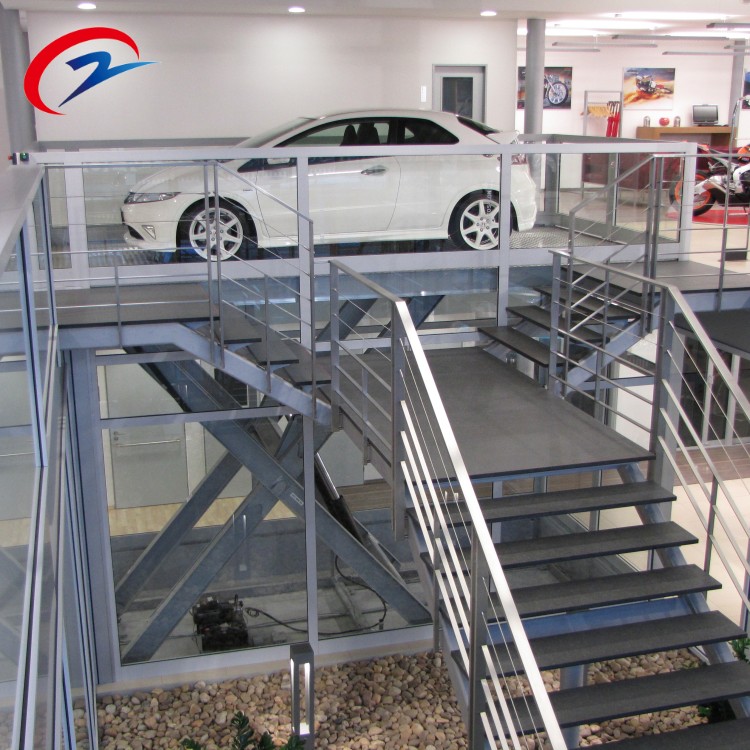

Zhongcan Stationary Scissor Lift move cars between split levels within showrooms or garages on different levels.
Stationary Scissor Lift Table is mainly used to convey goods from one working level to another, and it can be installed on the ground or in the pit. Stationary Scissor Lift is an important component in material handling area, it is one of professional high-altitude operation equipment.
Model of scissor lift table
MODEL
LOAD CAPACITY
PLATFORM SIZE
TRAVEL HEIGHT
MIN.HEIGHT
POWER
ZCSL3-3
3000kg
5000x2500mm
3000mm
650mm
5.5KW
ZCSL3-4
3000kg
5000x2500mm
4000mm
800mm
5.5KW
ZCSL3-6
3000kg
5000x2500mm
6000mm
800mm
7.5KW
ZCSL5-3
5000kg
6500x2600mm
3000mm
680mm
7.5KW
ZCSL5-4
5000kg
6500x2600mm
4000mm
680mm
7.5KW
Scissor Lift Platform is customizable in loading capacity, platform size and travel height.
BENEFITS
Safe: explosion-proof lock valve to avoid a sudden drop if emergency occurs.
MULTIPLE SAFETY FEATURES PACKED
- The Stationary Scissor Lift is fitted with protective side barriers to secure the car during elevation and descent.
- Each car lift comes equipped with handrails, a kick plate, and a barrier chain across each end.
- The platform is equipped with overload alarm and partial load protection device to ensure the safe lifting of the platform.
- The hydraulic system is equipped with an explosion-proof valve to prevent the platform from falling due to rupture of the oil cylinder.
- Manual lowering device after power failure.
- Scissor arms are made of high-strength manganese steel: high strength, no deformation, to ensure long-term safety.

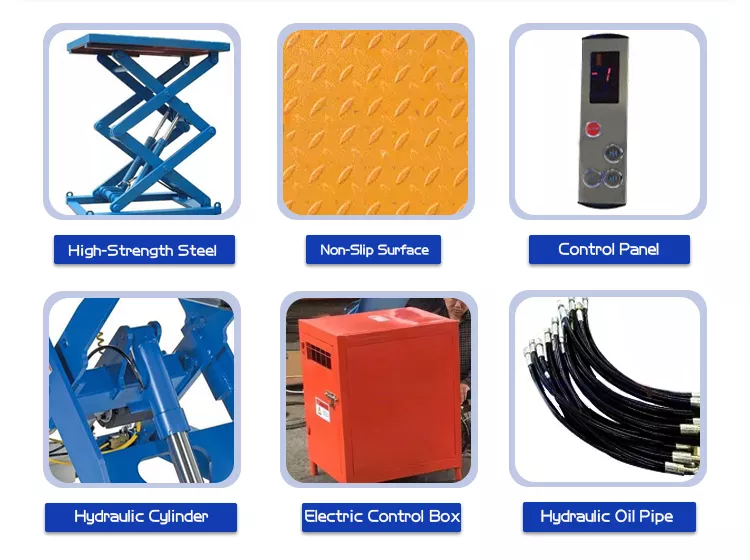

HIGH GRADE PARTS ENSURE HIGH QUALITY OF STATIONARY SCISSOR LIFT

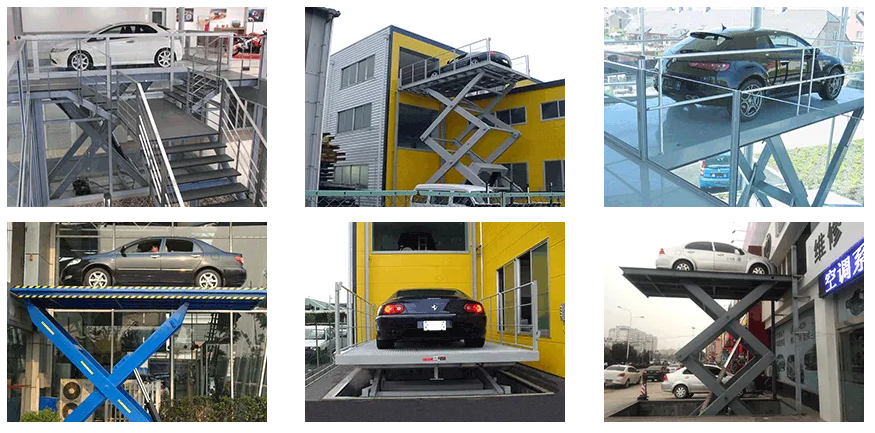

PROJECTS
Beside, we also have Home Lift, Hydraulic Cargo Lift, Mast Lift, Loading Dock Leveler and so on. If you need, please contact me.
