ZPS-800 tire shredder with DCT-500

1.Introduction
The Tire Shredder is a special tyre recycling machine for crushing the whole waste steel wire radial tyre under normal temperature.
The tire rubber chips are less than 50x50mm.
Recycle the waste tires (truck tires, car tires, etc) into clean rubber crumbs and powders.
Capacity per hour: 800~2000kg/hour (feed-in)
Max outer diameter of the waste tires: 800mm
2.Main Technical Parameter

Model	ZPS-800 Tire Shredder Machine
Capacity(T/hour)	0.8-2
Specification of feeding(mm)	≤800
Specification of discharging(mm)	≤50x50
Main Motor(Kw)	17.5x2
Discharging Motor (Kw)	3
Cutter rotate speed(r/min)	16
Dimension (LXWXH)(mm)	3100x2500x2550
Weight(T)	5

3.Structure and principle
The shredding chamber of Tyre Shredder adopts folio compact structure for easy maintenance;
The shredding blades of Car Tyre Shredder edges are made of hard alloy after special hardness treatment, wear-proof. Heavy-duty, advanced technology and high output;
The Tyre Recycling Shredder adopts low noise, steady and high torque planet-gear speed reducer, easy and safe operation;
The rotary screener is of steel net structure which has large area for screening qualified size of tire chips to discharge quickly.
Low consumption, high output and advanced technology.

4.Successful Case

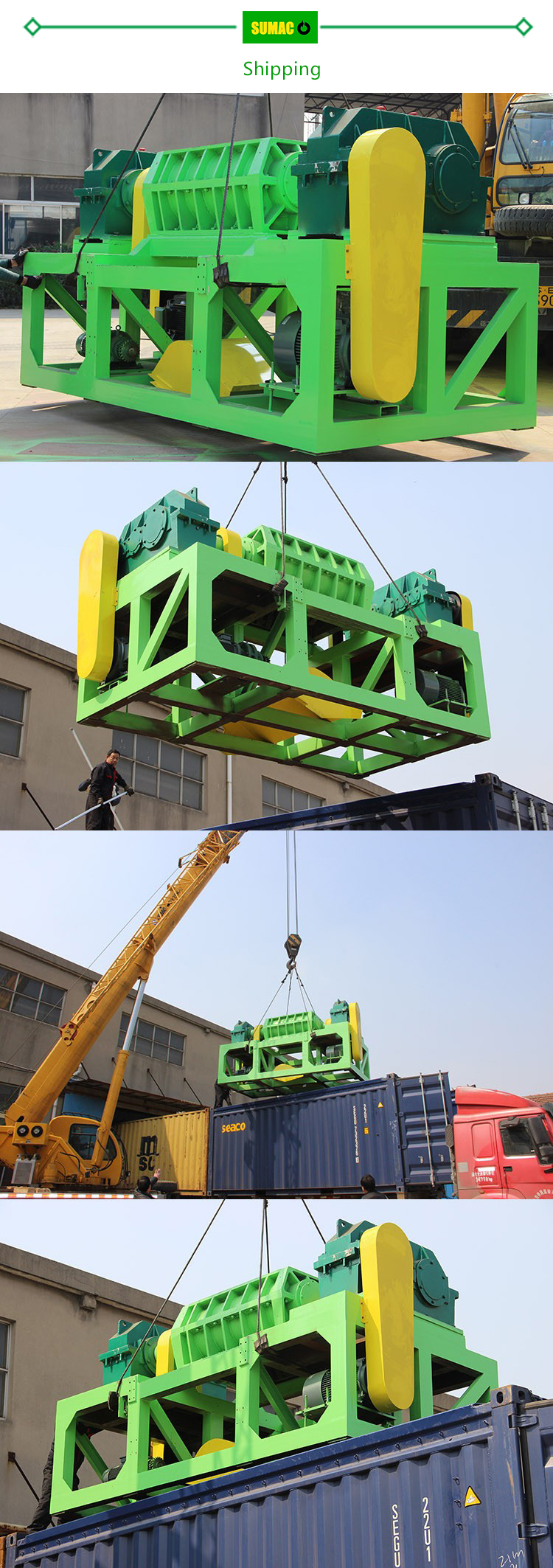

5.Shipping
