Product details

ZLP Series Hanging Wire Rope Platform Cradle

Suspended platform, as temporary suspended cradle platform, are widely applied in maintenance applications such as curtain fecade cleaning in high rise building, painting, glazing repairs, bill- board painting, cable installation and other outer working of high rise building up to 150 meters about 30 floors high. Our ZLP series suspended platform cradle, ZLP1000, ZLP800, ZLP630, ZLP500, ZLP400 and ZLP150, are good choices for fulfill above outside of wall work.

Based on the different material, suspended platform could be divided into aluminum suspended platform, steel suspended platform, galvanized suspended platform. We could provide Suspended Platform Parts as well.

- Technical Data of Suspended Cradle Platform

Model	ZLP150	ZLP400	ZLP500	ZLP630	ZLP800	ZLP1000
Material	Steel/Aluminum Alloy/Galvanized	Steel/Aluminum Alloy/Galvanized	Steel/Aluminum Alloy/Galvanized	Steel/Aluminum Alloy/Galvanized	Steel/Aluminum Alloy/Galvanized	Steel/Aluminum Alloy/Galvanized
Height	100m	100m	100m	100m	100m	100m
Rated load	150kg	400kg	500kg	630kg	800kg	1000kg
Length of platform	1.2m	4m	5m	6m	7.5m	7.5m
Safety Lock Type	LST20	LST20	LST20	LST20	LST20	LST20
Volume	1.6m³	2.3m³	2.9m³	3.0m³	3.2m³	3.3m³
Weight	800kg	1700kg	1650kg	1850kg	2000kg	2300kg
20 Feet GP Container	12 pcs	12pcs	11pcs	10pcs	9pcs	8pcs

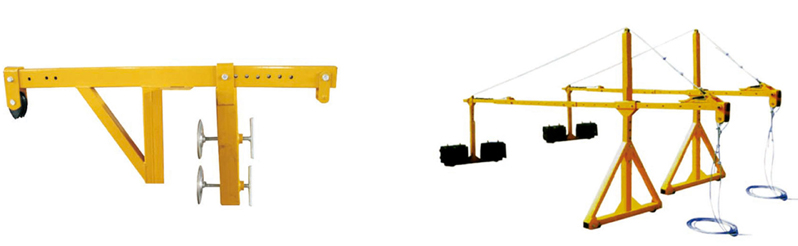

- Suspended platform

suspended platform hoist

The height of the platform could be adjusted within 1150-1800mm with arm which can be stretched out and drawn back. It could be widely used on parapet and complicated building in different height.

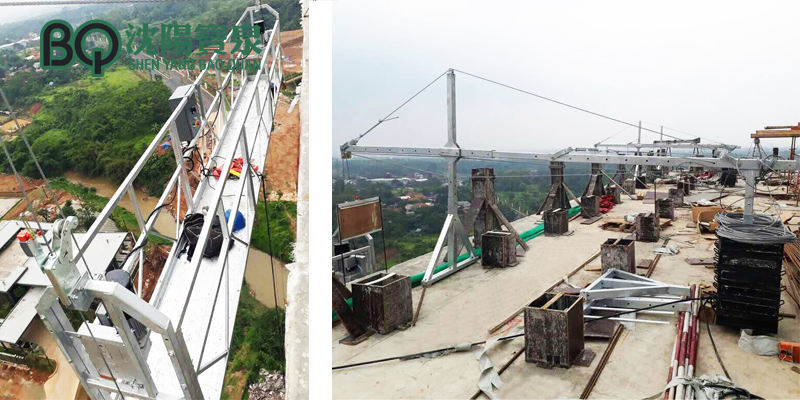

- Product Photo of Aluminum Working Platform

suspended platform price

We also provide all kinds of Suspended Platform Spare Parts , welcome to contact with us !
