CMV Series Mueller Type Refrigeration Magnetic Check Valve
Refrigeration Magnetic Check Valve 1/4'' to 3-1/8'' Solder
Magnetic type refrigeration check valve is designed for installation in commercial refrigerating systems and in residential or industrial air conditioning plants. They are used to control the unidirectional flow of refrigerant to prevent backflow; the magnetic actuator guarantees a high reliability standard.
Technical Data of CMV Series Magnetic Check Valve:
| Model |
Connection Size (ODF) |
Max Working Presure
(bar)
|
Cv Value | Max. Internal Leak |
| CMV-4S | 1/4'' | 55 | 0.7 | <2.3 ml/min |
| CMV-6S | 3/8'' | 55 | 1.2 | <2.3 ml/min |
| CMV-8S | 1/2'' | 48 | 2.7 | <3.3 ml/min |
| CMV-10S | 5/8'' | 48 | 3.3 | <3.3 ml/min |
| CMV-12S | 3/4'' | 48 | 7.2 | <6.6 ml/min |
| CMV-14S | 7/8'' | 48 | 8.0 | <6.6 ml/min |
| CMV-18S | 1 1/8'' | 48 | 13.2 | <13.1 ml/min |
| CMV-22S | 1 3/8'' | 48 | 18.9 | <13.1 ml/min |
| CMV-26S | 1 5/8'' | 48 | 27.8 | <19.7 ml/min |
| CMV-34S | 2 1/8'' | 48 | 49.9 | <19.7 ml/min |
| CMV-42S | 2 5/8'' | 48 | 61.9 | <26.2 ml/min |
| CMV-50S | 3 1/8'' | 45 | 64.1 | <26.2 ml/min |

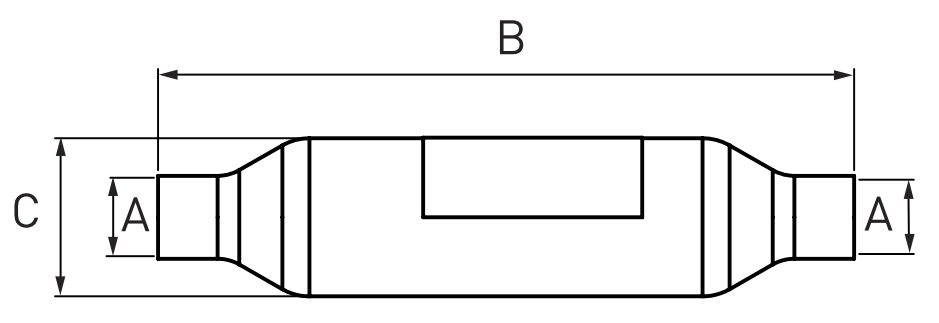

Main Dimension of CMV Series Magnetic Check Valve:
| Model | Connection Size | Dimension | ||||||
| inch | mm | A | B | D | ||||
| inch | mm | inch | mm | inch | mm | |||
| CMV-4 | 1/4'' | 6 | 4.02 | 102 | 0.88 | 22 | 0.34 | 9 |
| CMV-6 | 3/8'' | 10 | 4.02 | 102 | 0.88 | 22 | 0.34 | 9 |
| CMV-8 | 1/2'' | 13 | 5.18 | 131 | 1.13 | 29 | 0.41 | 10 |
| CMV-10 | 5/8'' | 16 | 5.18 | 131 | 1.13 | 29 | 0.53 | 13 |
| CMV-12 | 3/4'' | 19 | 7.04 | 179 | 1.63 | 41 | 0.65 | 17 |
| CMV-14 | 7/8'' | 22 | 7.04 | 179 | 1.63 | 41 | 0.78 | 20 |
| CMV-18 | 1 1/8'' | 29 | 8.43 | 214 | 2.13 | 54 | 0.94 | 24 |
| CMV-22 | 1 3/8'' | 35 | 9.41 | 239 | 2.63 | 67 | 1.00 | 25 |
| CMV-26 | 1 5/8'' | 41 | 10.55 | 268 | 3.13 | 79 | 1.12 | 28 |
| CMV-34 | 2 1/8'' | 54 | 12.06 | 306 | 3.63 | 92 | 1.37 | 35 |
| CMV-42 | 2 5/8'' | 67 | 13.05 | 331 | 4.13 | 105 | 1.50 | 38 |
| CMV-50S | 3 1/8'' | 79 | 13.05 | 331 | 4.13 | 105 | 1.69 | 43 |
Cross Reference Numbers of Refrigeration Magnetic Check Valves
| MUELLER | EMERSON | HENRY | SUPERIOR |
| CMV-4S | ACK-4 | MS-4 | 900MA-4S |
| CMV-6S | ACK-6 | MS-6 | 900MA-6S |
| CMV-8S | ACK-8 | MS-8 | 900MA-8S |
| CMV-10S | ACK-10 | MS-10 | 900MA-10S |
| CMV-12S | ACK-12 | MS-12 | 900MA-12S |
| CMV-14S | ACK-14 | MS-14 | 900MA-14S |
| CMV-18S | ACK-18 | MS-18 |
900MA-11S |
| CMV-22S | ACK-22 | MS-22 | 900MA-13S |
| CMV-26S | ACK-26 | MS-26 | 900MA-15S |
| CMV-34S | ACK-34 | MS-34 | 900MA-21S |
| CMV-42S | ACK-42 | MS-42 | 900MA-25S |
| CMV-50S | / | / | / |
