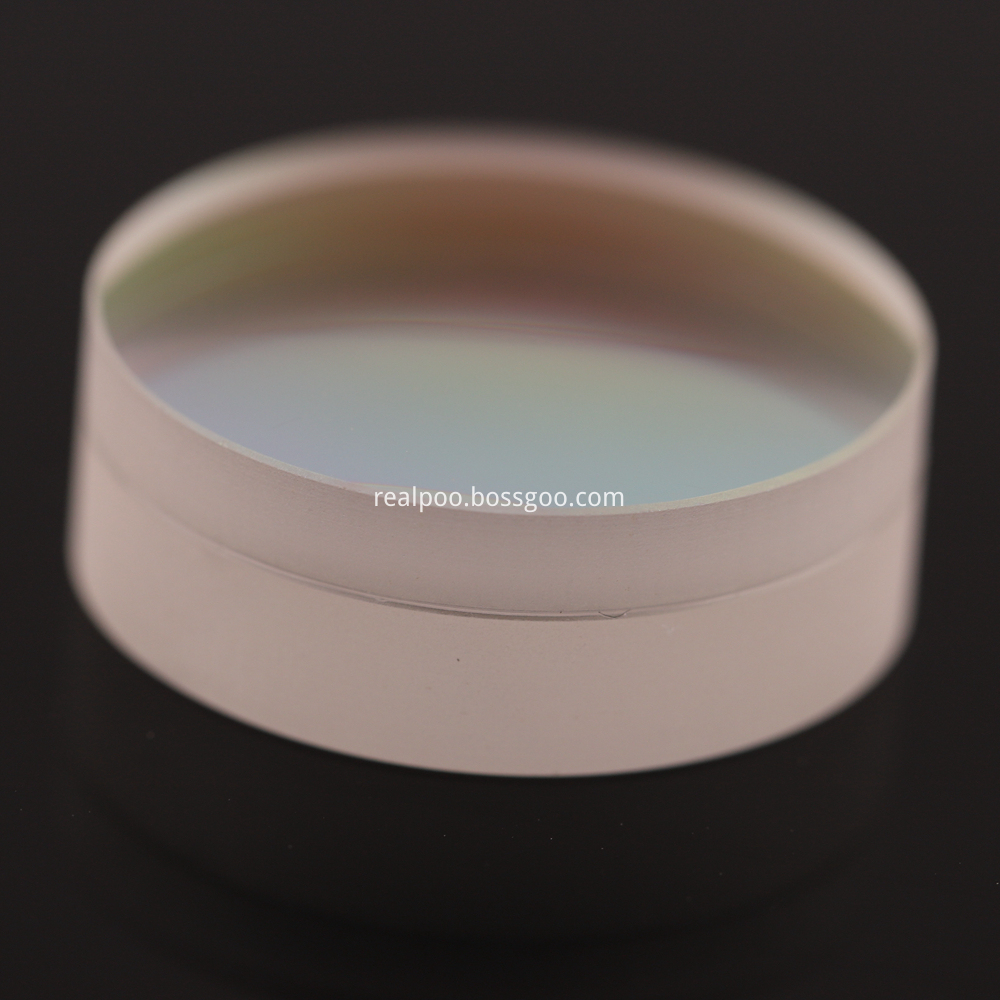

D54 achromatic lens

Realpoo Optics can manufacture the achromatic lens that the diameter is bigger than 50mm . Achromatic lens can be used as collimators, focusing lenses or light collectors. They are designed to eliminate chromatic and spherical aberrations and perform well for all paraxial imaging tasks. These lenses are coated with single layer antireflection coating to reduce surface losses in the visible regions. Achromatic lenses are widely used today in achromatic telescopes, microscopes, and photographic lenses.

Specification :

Material : Crown Glass and Flint Glass

Diameter Tolerance : +0.0 , -0.05

Center Thickness Tolerance : ±0.1

Surface Quality : 40-20 scratch and dig

Centration : ±1 arc minutes

Surface Figure : lambda/4 @ 632.8nm

Clear Aperture : >90% of diameter

Bevel : protective chamfer

Coating : Upon requirement

Realpoo Optics is a professional manufacturer of optics. Optics includes Spherical Lens, aspherical lens, Optical prism and flat lens. Spherical lens such as Cylindrical Lens, Ball Lens, Convex Lens etc. Flat lens includes Optical Window and Mirror.
