External LED Emergency Driver

This LED Emergency Kit will be the most ideal light source to replace the traditional light source, with a wide range of uses. It can be used in all kinds of led lamps with external driver.

Description

The CE and RoHS certified LED emergency driver can be easily added to the normal LED lighting and convert the light into the emergency lighting fixture. Each LED emergency module is consist of emergency driver and a battery cell. Once there is main power failure, it can light up the lamp within 2 seconds and supply the continuous power more than 120 minutes.

LED emergency backup driver specifications:

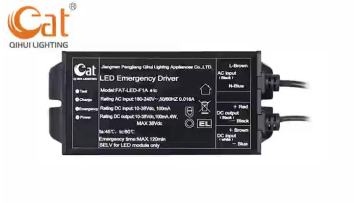

1. Item No.：FAT-LED-F1A-2

2. Material: Aluminum cover

3. Product Size: 130*58*22 mm

4. Suitable for lamp: LED light with external driver, 3-40W(Max 60W)

5. Battery: Built-in lithium battery 3.7V/2400mAh

6. Input Voltage: AC 85V-265V

7. Emergency Output: DC12V-160V

8. Emergency Power: 3-5W

9. Emergency duration time: 120 minutes

10. Charge Time: ≤24 Hours

Product Features:

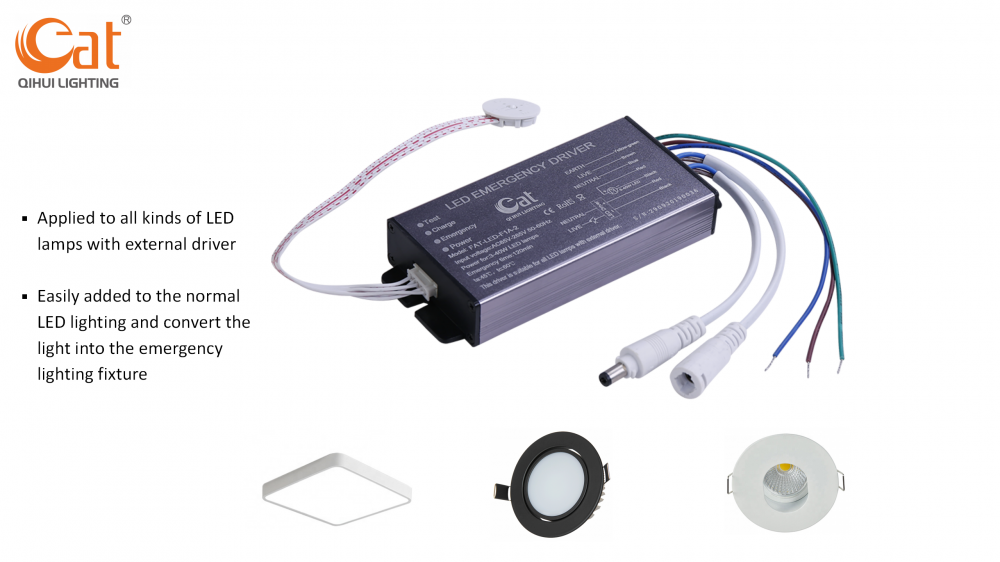

●  Applicable to all kinds of LED lamps with external driver.

●  Self-check function,the system automatically charges and discharges once every 30 days and every year.

●  High quality rechargeable lithium ion batteries can be charged and discharged above 500 times.

●  Overload protection, short circuit protection, overcharge and over discharge protection,no loading protection to protect the whole emergency devices .

●  Aluminum housing, intelligent heat dissipation.
