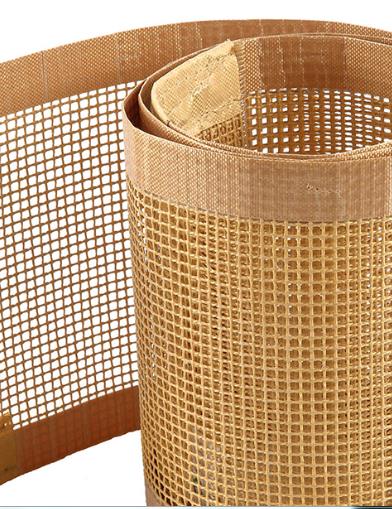

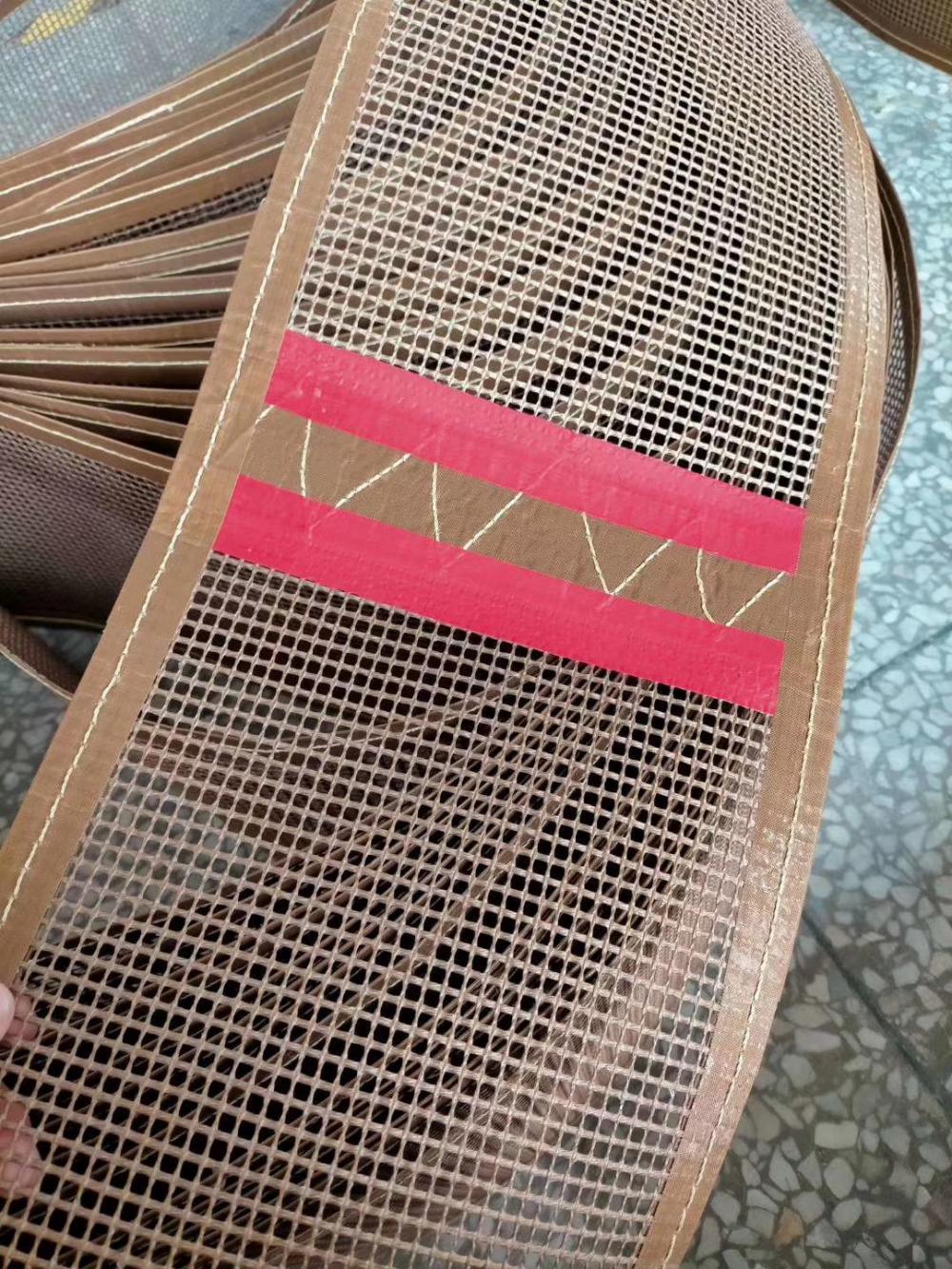

PTFE fiberglass open mesh conveyor belt series
We select fine fiberglass Or Kevlar as basic weaving material, coated with excellent PTFE resin to make it into various PTFE open mesh conveyor belts.
Features Of PTFE conveyor belts:
1. High temperature resistance—It Can continuously work under-140 to 320℃,max resist high temperature up to 360℃.
2. Permeability—It can avoid wasting heat and improve drying efficiency for it’s permeability.
3. Chemical resistance—It can resist all most of chemical medicines.
4. Non Stick—It can easily remove all kinds of adhesives such as resin, paint and chemical medicine, easy to clean.
5. Good flex fatigue resistance—It has high tensile strength and excellent flex fatigue resistance. It’s better for small wheels.
Applications:
1. Drying machine for non-woven textile, textile printing, silk-printing and dyeing machine.
2. Shrinking machine for garment fabric, high-frequency and UV dryer.
3. Conveyer belt for hot-air dryer, various of food baking, quick-frozen machines.
4. Oiling machine for paper glazing and waxing, plant engineering.
5. Separating sheet for hardboard production etc.
|
Item No |
Mesh Size |
Material |
Thickness |
Weight |
Temp Resistance |
Max-Width |
Tensile Strength |
|
YX3001 |
1x1mm |
glass |
0.5mm |
370g/m² |
-140 to 320 |
4000mm |
310/290N/cm |
|
YX3002 |
2x2mm |
glass |
0.7mm |
450g/m² |
-140 to 320 |
4000mm |
350/310N/cm |
|
YX3003 |
4x4mm |
glass |
1.0mm |
400g/m² |
-140to 320 |
4000mm |
390/320N/cm |
|
YX3004 |
4x4mm |
glass |
1.0mm |
450g/m² |
-140to 320 |
4000mm |
390/320N/cm |
|
YX3007 |
4x4mm |
Kevlar&fiberglass |
1.2mm |
600g/m² |
-140to 320 |
4000mm |
895/370N/cm |
|
YX3008 |
4x4mm |
glass |
1.0mm |
500g/m² |
-140to 320 |
4000mm |
395/370N/cm |
|
YX3010 |
4x4mm |
Kevlar fabric |
1.0mm |
500g/m² |
-140to 320 |
4000mm |
900/600N/cm |
|
YX3012 |
4x4mm |
glass |
1.0mm |
550g/m² |
-140to 320 |
4000mm |
395/370N/cm |
|
YX3013 |
10x10mm |
glass |
1.2mm |
450g/m² |
-140to 320 |
4000mm |
360/300N/cm |
|
YX3014 |
0.5x1mm |
glass |
0.5mm |
420g/m² |
-140to 320 |
4000mm |
310/290N/cm |
|
YX3015 |
2x2.5mm |
glass |
0.9mm |
600g/m² |
-140to 320 |
3000mm |
390/320N/cm |
