Galvanized Ground Screw for bridge foundation basement in the sea,the Ground Screw with size of 219*4*5800 mm ,with big flange of 400*20 mm ,and 30 circles threads ,with complex workmanship.

We are specialized to make Ground Screw Anchor for more than 15 years,there are more than 80 workers in our factory,we can make different size and design Ground Screw Pile according to drawings or pictures or samples.

According to our clients' use,Ground Screw Pile can be used in many fields,such as below :

• Solar energy mounting systems .
• Fencing post
• Playground and parks
• Underpinning for retaining walls
• Drainage, pipelines
• Bridges construction
• Portable buildings and structures
• Shade structures, tree support
• Use in vineyards, orchards, crop farming
• Wind turbines
• Scaffolding
• Power Lines, telephone poles, masts, towers
• Temporary buildings
• Timber buildings
• flag poles

The Flange Ground Screw with flange,flange size is 8*200 mm or 6*160 mm or according to clients' request.

Material of Helix Ground Screw: S 235 carbon steel

Length of the F Series Ground Screw: 550-6000 mm.

Ground Screw Pile's diameter: 50 mm, 68 mm, 76 mm, 89 mm, 102 mm,114 mm ,219 mm, according to clients' request.

Thickness of steel tube: 2.75 mm,3.00 mm,3.75 mm,4.00 mm,5.00 mm.

Surface treatment: Hot dip galvanized, according to DIN EN ISO 1461-1999, thickness of coating zinc: more than 80 micron average.

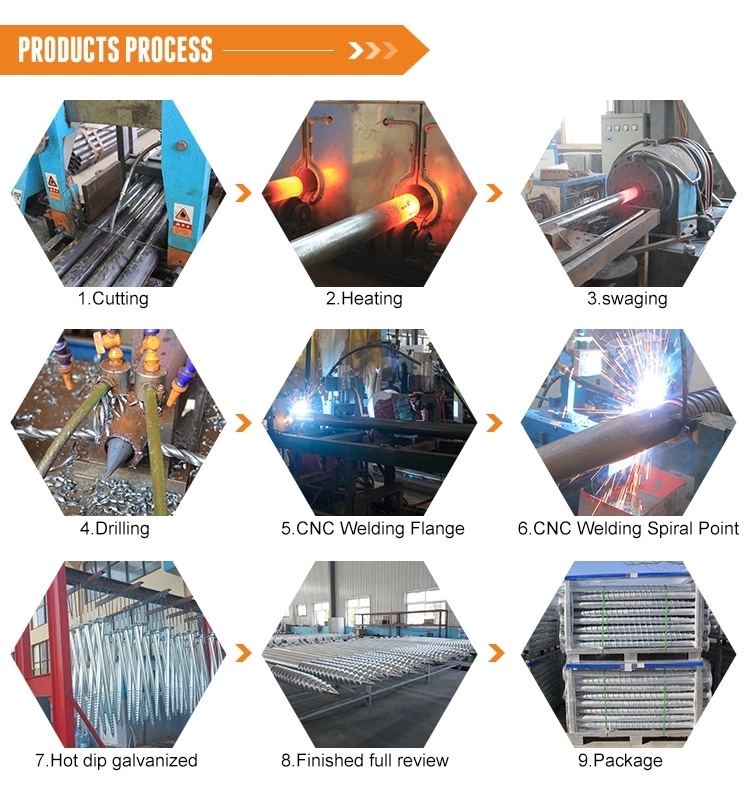

Production Chart: Automatic cutting pipe machine cut length according to design, forming the pipe according to the design, automatic welding robot welding nut, flange, blade and assemble, acid pickling and hot dip galvanized treatment, QC and packing, shipments.

Size of Flange Ground Screw are like the below :

76*3*1000*200*8

76*3*1200*200*8

76*3*1500*200*8

76*3*1800*200*8

76*3*2000*200*8

76*3*2500*200*8

89*3.75*1200*200*8

89*3.75*1800*200*8

89*3.75*2000*200*8

114*4*1500*200*8

114*4*1800*200*8

114*4*2000*200*8

114*4*3000*200*8
