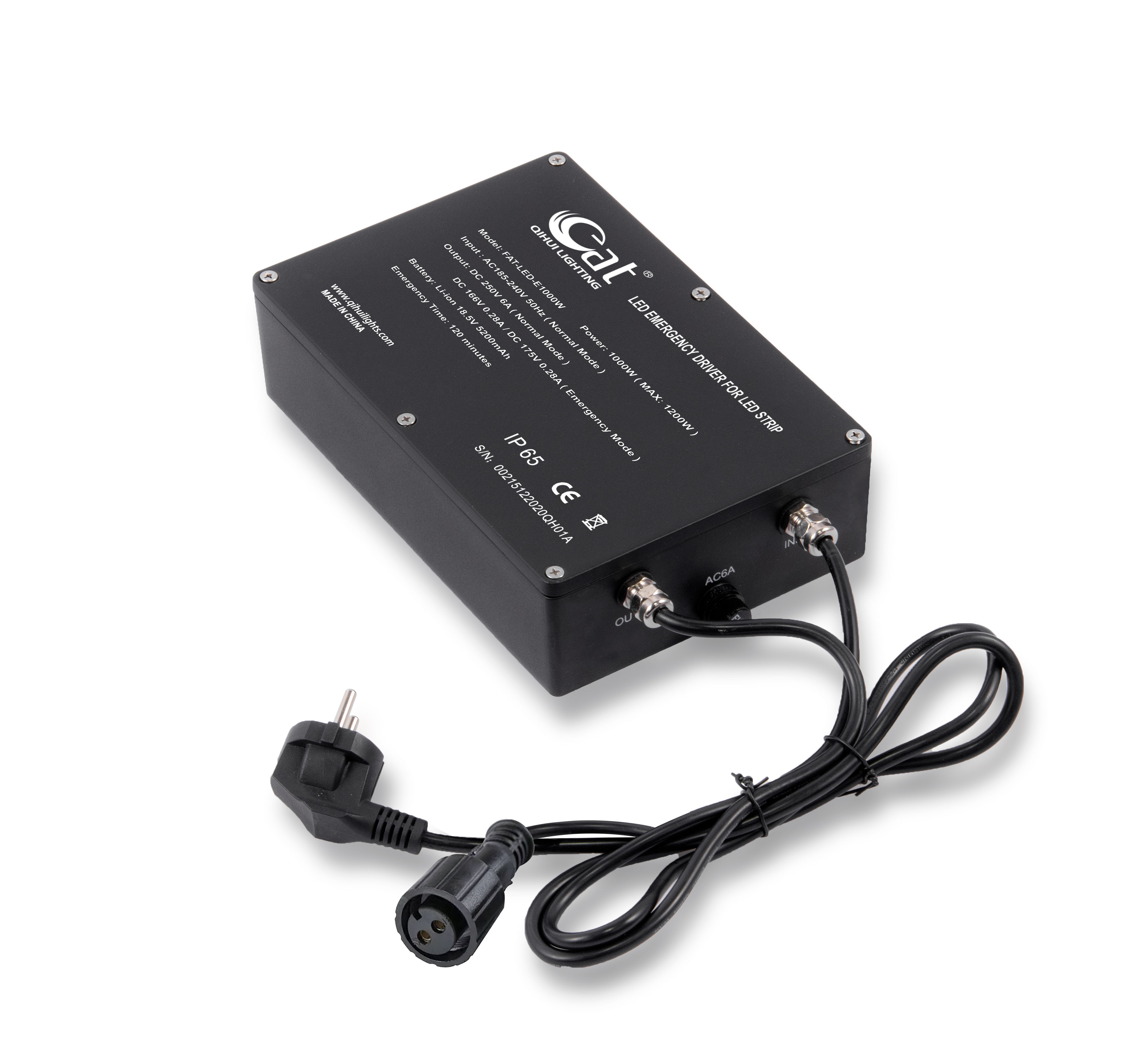

LED emergency driver compressive strength test
3 year ago
Power: for 1000W max. LED strip
Input Voltage: AC 85-265V 50/60HZOutput Voltage: DC230V Emergency Conversion Kit
Emergency Output: FULL POWER Led Power Converter
Battery: Li-ion 18650 18.5V (8000mAh-15600mAh)
Emergency Time: 60-180mins Battery Backup Led Light
Charge Time: 24 Hours
Material: Aluminum alloy+Battery+PCB Emergency Light Conversion Kit
Size: 345 x 135 x 85 mm
Certification: CE, RoHS
Warranty: 3 Years on Emergency Module With Battery Pack
Our Services
More LED EMERGENCY KITS:

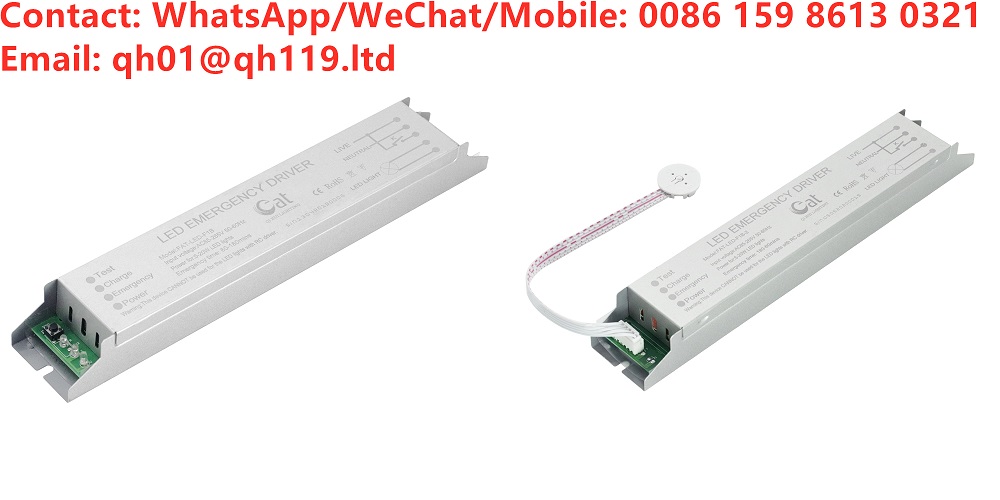

FAT-LED-F1A: Led Emergency Module
Aluminum alloy external housing: high-performance heat dissipation. Emergency Backup Lights
FAT-LED-F1A-2: with external test button indicators 40w Led Emergency Power Supply
FAT-LED-F1A-CB: PASS CB FROM TUV.
FAT-LED-F1C: for 3-30W LED with external driver.
FAT-LED-F1C-2: with external test button and indicator; for 3-30W LED with external driver.
Led Emergency Power Unit
Battery and light source Emergency Pack Module
Note: The positive and negative of battery should not be connected reverse, and we should avoid directly short-circuit the battery. Explosion will be caused if using unmatched battery. Please abide by local rules when discarding old battery.
Warning: As the inner PCB includes 220V/50HZ high voltage, so it must be unloaded/opened ONLY by professional technician.
Test button
- Can test if emergency driver working properly during regualar inspection.
Indicator Light
- Red indicator: charging status
- Blue indicator: emergency status
- Green indicator: main power status
|
Problems |
Analysis |
Solution |
|
Green Light not working
|
Something wrong with the led driver |
Checking the led driver |
|
Green light is broken or the circuit is disconnected |
Checking circuit or changing green light |
|
|
Red light is off
|
Not being charged |
Checking the charging circuit or battery |
|
Red light is broken or the circuit is disconnected |
Checking circuit or changing red light |
|
|
Battery is full charged |
Disconnecting the main power supply, make the led lights work in emergency status for 30 minutes, make the led light return to work in main power status again |
|
|
Blue light is off
|
The battery is open circuit |
Checking the battery |
|
Light source is open circuit or short circuit |
Ensuring light source is connected correctly |
|
|
PCB is broken |
Checking the Maintaining the circuit board |
Certification
With Certificate of design patent and utility model patent. CE RoHS CB approved.
