Weichai electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring high intelligence and efficiency, high parts interchangeability, and low maintenance cost.

The machine is provided with three power modes, namely no-load, medium-load, and heavy-load modes, at choice depending on the actual working load to realize the reasonable match among power, efficiency, and energy consumption.

The Hangzhou Advance 6t special planetary transmission + torque converter or ZF200 transmission + torque converter is applied to realize more reasonable match and faster response.

The KD gear, 1st gear, and 2nd gear of the electronic control transmission are shifted automatically to ensure simple and flexible operations.

The new generation cab with all-new design optimization and large door structure is mold formed to guarantee broader vision and more fashionable appearance.

All-new cushioned seat with large adjustment range provides the driver with the most comfortable operating posture.

The locations of joysticks, pedals, and seat are reasonably arranged to achieve higher operating comfort. The standard pilot control system features handy and comfortable operations.

The standard radio and audio provides more abundant personalized driving/riding experience and guarantees the comfortable and safe driving/riding environment.

factory all other machinery like bulldozers ,motor graders ,road rollers with high quality .

Main Specifications

Rated Loadkg5000

Operating Weight with Standard Bucketkg16900

Bucket Capacitym³2.7-4.5

Wheel Basemm3300

Overall Dimensionmm8279*2963*3457

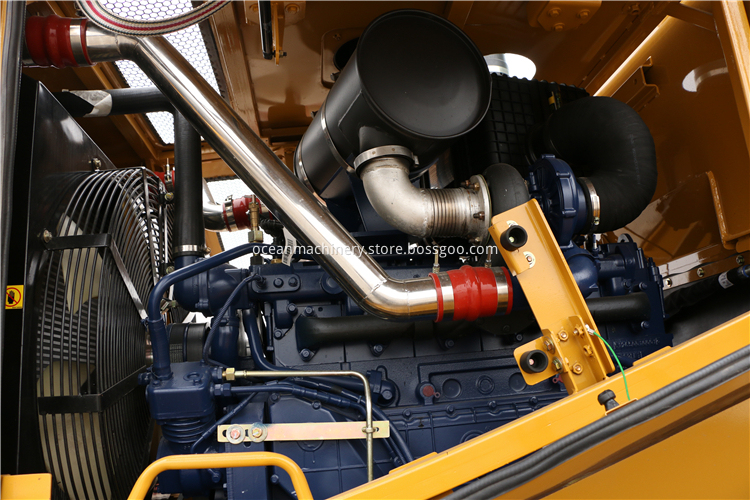

Engine

Model Weichai WD10G

Rated Power 162 kW

Rated Speedr/min2000

DisplacementL9.726

Operating Specifications

Breakout ForcekN178

Dump Clearancemm3113

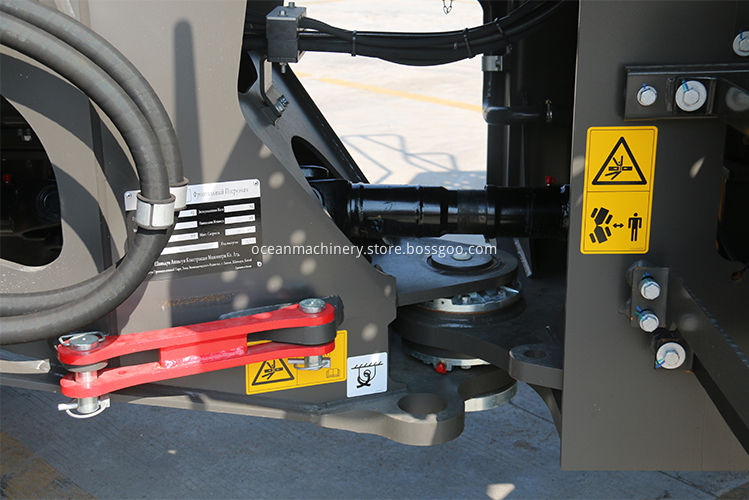

Articulated Angle°38±1 °

Implement Hydraulic

Implement System Type Single load sensing flow sharing system

Boom Raise Times5.13

Hydraulic Cycle Times9.3

System Presure SettingMPa18

Transmission

Type Countershaft

Transmission Gears F4/R4

Torque Converter Type Sigle stage 3 elements

Maker & Type TR200

Forward I/ Reverse Ikm/h7.8/7.8

Forward II/ Reverse IIkm/h15/15

Forward III/ Reverse IIIkm/h22/22

Forward IV/ Reverse IVkm/h39/39

Brake System

Service Brake Dry & caliper, air to oil control

Parking Brake Drum type shoe brake, spring applied & oil released

Steering System

System Type Flow amplifying

Steering Pump Type Piston pump

System Presure SettingMpa16

Steering Angle (L/R)°38±1 °

Axle SO32

Main Drive Type Spiral bevel gear, single stage

Final Drive Reduction Type Planetary type, singe stage

Rear - Oscillating +/-°±11 °

Tires

Size 23.5-25

Type Bias

also the excavator spare parts and engine spare parts for free .

Certification:

It will be work smoothly toghter with our motor graders ,road rollers, crawler bulldozers etc.

we will treat our all customers like family! Welcome your new inquiry!
