led panel GEM2x1 series

Description:

The newest generation of 1'x1' bi-color led soft light panel features an increased density of LED, providing twice the amount of light output, comparing with tranditional studio panels. The technological enhancements also translate in new, high quality LEDs that meet the high standards of professional broadcast industry in terms of color rendering accuracy (CRI 96 | TLCI 98).

Features:

• ultra-efficient LED technology with high CRI level 96 Ra / TCLI 98 Qa

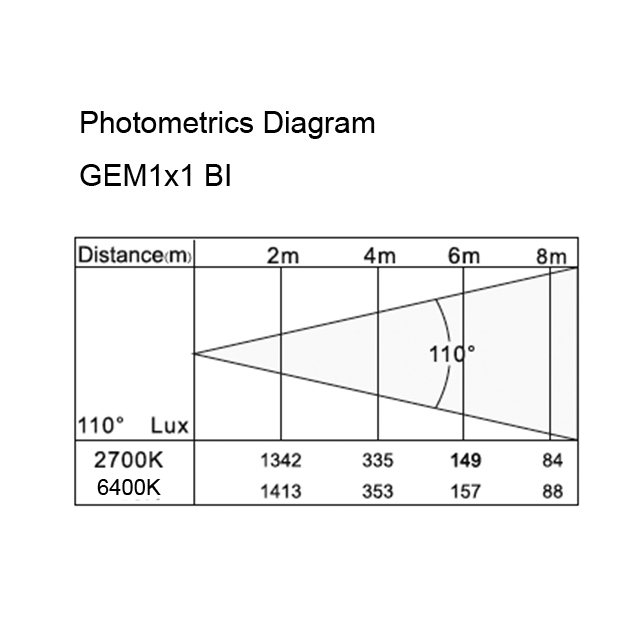

• flood led's (110 degree beam angle) equal wider effective beam spread
• bi-color function, variable color temperature from 2700K to 6400K
• dimming output from 100% to 0% with no flicker

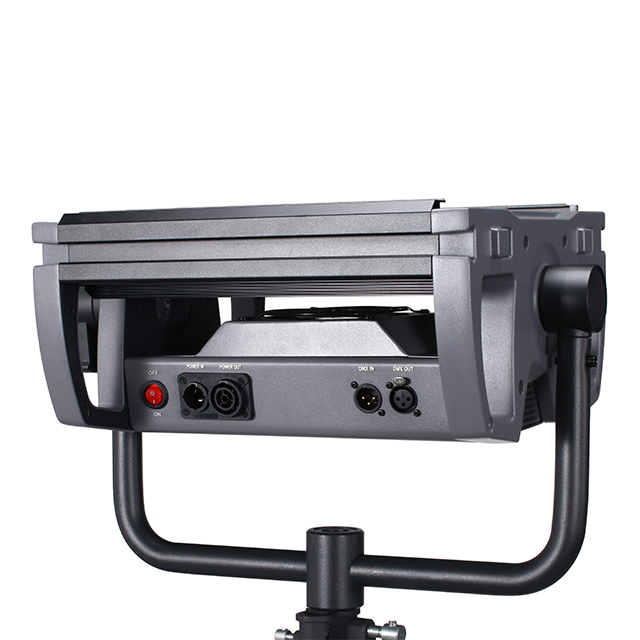

• built-in DMX512 function with XLR 3P IN / OUT ports
• RDM function can be remote changing setting.
• 1x1 led panel, die cast aluminum housing
• Removable barn door. Modular yoke design.
• Ultra quiet fan cooling, controllable fan speed by software.

Specification:

Voltage: AC100-240V

Max.power: 200W

CCT: 2700K-6400K

LED Source: CW WW

Color Rendering Index(CRI): Ra≥96

Field angle：110°

Control mode: DMX512, RDM

Display: LCD

DMX connection: 3pin XLR or 5Pin XLR

Power connection： powerCON TRUE1 in/out

IP rate： IP20

Dimension：449*506*178.5 mm

N.W：7 Kgs

FAQ:

Q 1.What's the MOQ?

 A. 2pcs.

 Q 2. What’s the cooling system about this fixture?

 A. ultra low noise fan.

Q 3. Can you provide IES file?

 A. Yes.

Q 4. What's the payment term?

 A. We accept TT bank transfer, L/C, western union.  30% deposit and 70% balance before shipment.

Q5. What’s the sample time and lead time for mass productions?

A:Normally, sample time is about 2-5 days after receiving your details. Lead time for mass productions (500pcs) is about 20-30 days.

Q6, What is included in the package?
A:  GEM1x1 BI led fixture: x1
     AC power cable : 1.5M length x1

     DMX cable 3pin XLR: 1.5M length x1
     user manual: x1

Q7, how about other optional accessories?

      clamps with tube
      stand

      net cable
