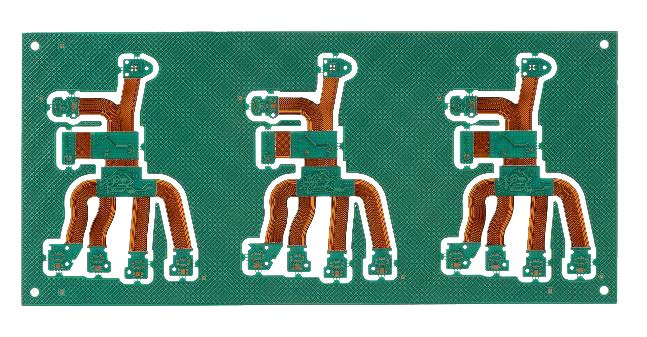

2Layers Rigid-Flex PCB(R-FPCB)

Introduction to Rigid-Flex PCB

The birth and development of FPC and PCB gave birth to the new product of Rigid-Flex PCB. Therefore, the combination of flexible circuit board and hard circuit board is a kind of circuit board with FPC characteristics and PCB characteristics, which is formed by combining flexible circuit board and hard circuit board together according to relevant process requirements through pressing and other processes.

Advantages and Disadvantages of Rigid-Flex PCB

Advantages

Rigid-Flex PCB has the characteristics of FPC and PCB at the same time. Therefore, it can be used in some products with special requirements, which not only has a certain flexible area, but also has a certain rigid area, which is of great help to save the internal space of the product, reduce the volume of the finished product, and improve the product performance.

Disadvantages

The production process of Rigid-Flex PCB is various, the production is difficult, the rate of good products is low, and there are many materials and manpower. Therefore, the price is relatively expensive and the production cycle is relatively long.

Applications of Rigid-Flex PCB

Application: mobile phone PCB, Keyboard PCB, Side button PCB, Computer PCB, LCD screen PCB, Main board PCB, Display PCB, Disk drive PCB, NOTEBOOK PCB, Hard disk drive PCB.

Rigid-Flex PCB Technical Capability

You can refer to the link to understand the PCB technical capability of UGPCB: Rigid-Flex Technical Capability
