General Description

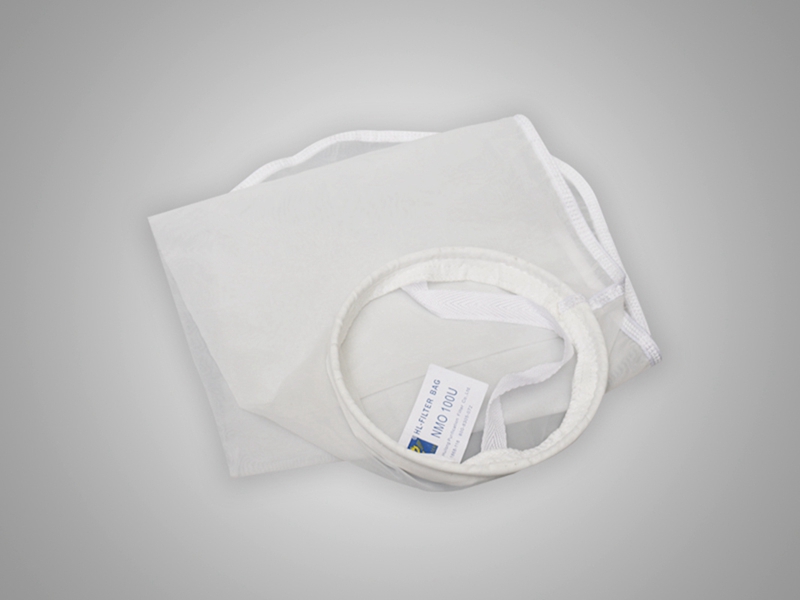

Sillicon Free Polyester Monofiliament Filter Bag is made of polyester monofilament Without Sillicon.It is a kind of surface prefiltration filter bag,the mesh is wovened specific net with non-deformable fiber,the openning hole are fixed through special process , with good tensile strength , can effectively intercept various kinds of larger particles, it can be washable and low consumption cost.
● Fixed aperture
● Good stretch-proof performance
● Strengthened outer lining hem
● Filtration rate ranging 25μm-1250μm
● Maximum continuous operation temperature：170℃
● Suitable to intercept rigid impurities
● Suitable to high viscosity fluid
● Without Sillicon
Specifications
Item
1# filter bag
2# filter bag
3# filter bag
4# filter bag
Size(mm)
180*450
180*810
105*230
105*380
Size(inch)
7''*17''
7''*32''
4''*9''
4''*15''
Tolerance
≤0.3 - 0.8(mm)
Bag Area(sq.m)
0.25
0.5
0.09
0.16
Material
100% nylon mesh / 100% polyester mesh
Neck Material
Stainless Steel or Plastic ( PP/PE )
Pressure 1.03-1.72(kg/sq.m)
Temperature Nylon Mesh Filter Bag works<140℃,Polyester Mesh Filter bag works<130℃
Applications
● Food and beverage
● Waste water treatment
● Auto coating and paint
● Metal finishing
● Resins , adhesives, oils and solvents
● Pharmaceutical industry
● Chemical Industry
