1.Dongfeng Vacuum Sewage Suction Description
A vacuum sewage suction truck is a specialized vehicle designed for the extraction,transportation, and disposal of liquid and semi-liquid waste. These trucks are commonly used for cleaning septic tanks,sewers,and industrial waste systems, as well as for environmental cleanup tasks. The vacuum sewage suction truck is essential tools for waste management,providing a reliable and environmentally responsible solution for maintaining sanitation and handling liquid waste efficiently.
| Vehicle Model | YZR5045GXWE6 |
| Vehicle Brand | XDR |
| Chassis Brand | DONGFENG |
| Overall Dimension(mm) | 5000*2000*2300 |
| GVW/Curb/Rated Loading weight(kg) | 5500/3000/1500 |
| Cab seat | 2 |
| Air conditioner | YES |
| Fuel type | Diesel |
| Engine model | JE493ZLQ3A |
| Engine brand | JMC ISUZU |
| Power(kw/hp) | 75/102 |
| Displacement(cc) | 2771 |
| Emission standard | Euro 3 |
| Drive type | 4*2 |
| Transmission | 5speed,manual |
| Wheelbase(mm) | 2800 |
| Tyre Specification | 6.5R16 |
| Tyre No.(pcs) | 6+1 |
| Max.Speed(km/h) | 110 |
| Paint | Blue and White |
| Tank Volume | 1500liters |
| Tank material | Carbon steel |
| Vacuum pump | Jurop PN45 |
| Suction Pipe | 8m |
Features of a Vacuum Sewage Suction Truck
1. Vacuum system
Powered by a high-capacity vacuum pump,which creates suction to extract waste materials.
Capable of handling both liquid and sludge waste with varying levels of viscosity.
2. Waste Tank
A large sealed tank designed to store extracted waste during transportaion.
Constructed from corrosion-resistant materials such as stainless steel or high grade carbon steel.
3. Suction Hose
A flexible,heavy-duty hose used to access and extract waste from septic tanks,sewer lines,or industrial pits.
Can be extended or retracted as needed for hard-to reach areas.

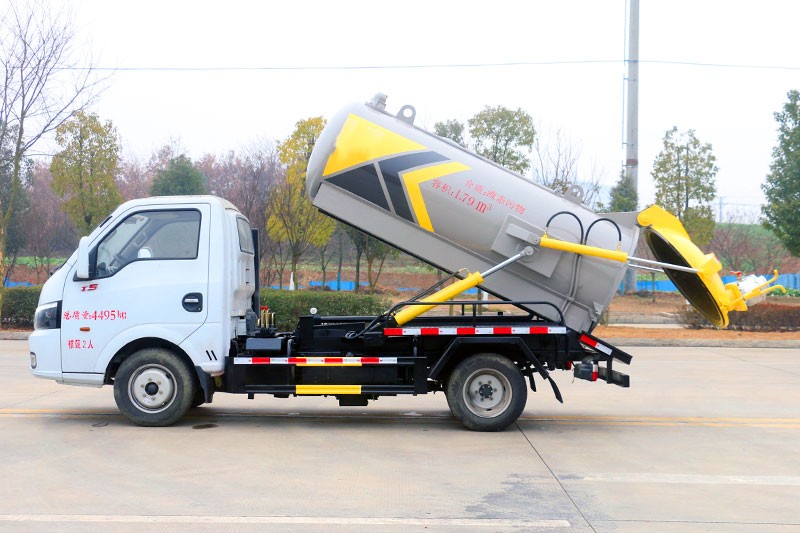

4. Discharge system
Features a hydraulic or phenumatic mechanismfor controlled emptying of the waste tank at disposal sites.
Some models allow for pressurized discharge to clear blockages in sewer lines.
5. Power system
Operated using a PTO (power take-off) system from the truck;s engine or a dedicated auxiliary engine.
Provides power for the vacuum pump,hydraulic systems,and other functions.
6. Safety features
Overfill protection to prevent spillage.
Emergency shutoff systems for safe operation.
Sealed tanks and hoses to control odors and prevent leaks.
7. Driver's cabin
Ergonomically designed with controls for operating the vacuum pump,suction hose and other systems.
Modern models may includ monitoring displays,GPS,and cameras for precision and ease of use.
1. Standard suction trucks:Designed for general-purpose waste extraction and transportation.
2. High-pressure jetting trucks: Combine vacuum suction with high-pressure water jets for cleaning sewer lines and removing blockages.
3.Combination trucks: Equipped with both vacuum and jetting systems for versatile cleaning and waste extraction tasks.
Applications
1. Septic tank cleaning: Extracting sludge and waste from residential and commercial septic systems.
2. Sewer maintenance: Cleaning blockages and cleaning municipal sewer lines.
3. Industrial waste management: Handling waste from factories, refineries and processing plants.
4. Environmental cleanup: Removing liquid waste or hazardous materials during environmental restoration projects.
Benefits
1.Efficiency: High suction power enables quick and effective waste removal.
2. Versatility: Suitabe for various waste types,including liquid,sludge,and semi-solid materials.
3.Hygiene and safety: Sealed systems prevent exposure to harmful waste and control odors.
4.Environmental compliance: Designed to safely transport waste to authorized disposal or treatment facilities.
