PLC Band Knife Splitting Machine BD-L520

PLC Band Knife Splitting Machine BD-L520

Product Description

USE

The machine adapts to splitting the hard or soft leather symmetrically, which the width is less than 420mm and the thickness is less than 8mm, according to the required thickness in the industry of leather products. It can adjust the splitting thickness freely, improve the quality of

products and strengthen the competitiveness of markets.

CHARACTERS

1.BD-L520W inherits the BD-L620W great function and all advantages.

2.With automatic feed registration device, no need to adjust cutting tool.

3.With function of dropping out when it is splitting.

4.Automatic pause system when leather material entangles in and automatic detection system of electronic phase.

5.Freestanding set of dust absorbing and knife grinding dust absorbing device.

6.The outsize flying wheel makes the operation of band knife more steady andexact.

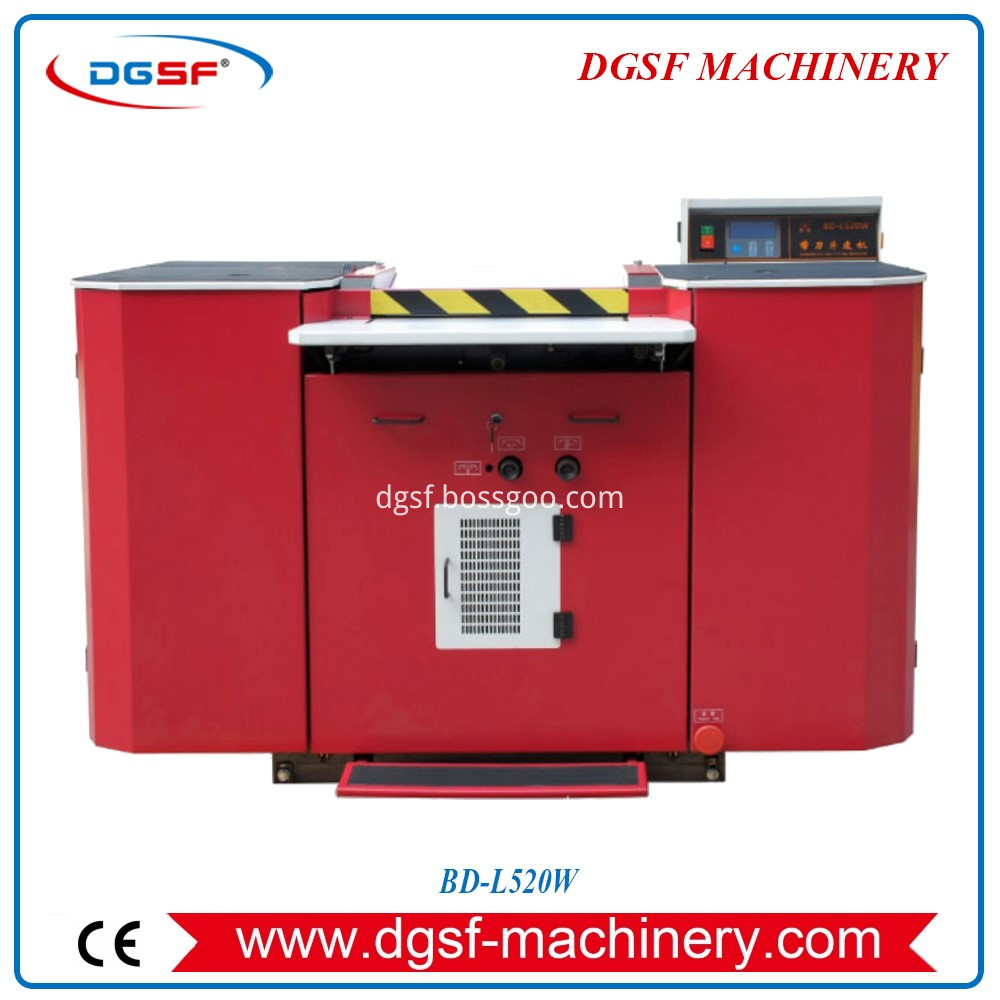

Model: BD-L520W

Max width of split:520mm

Max thickness of split:8mm

Min thickness of split:0.15mmwith top bar,0.5mm with top feed roller

Specification of band knife:3810×50×0.6mm

Package size:1900×1500×1130mm

Gross weight / Net weight:850kg/760kg
