SDLG G9138 Road Machinery 138hp rear ripper grader

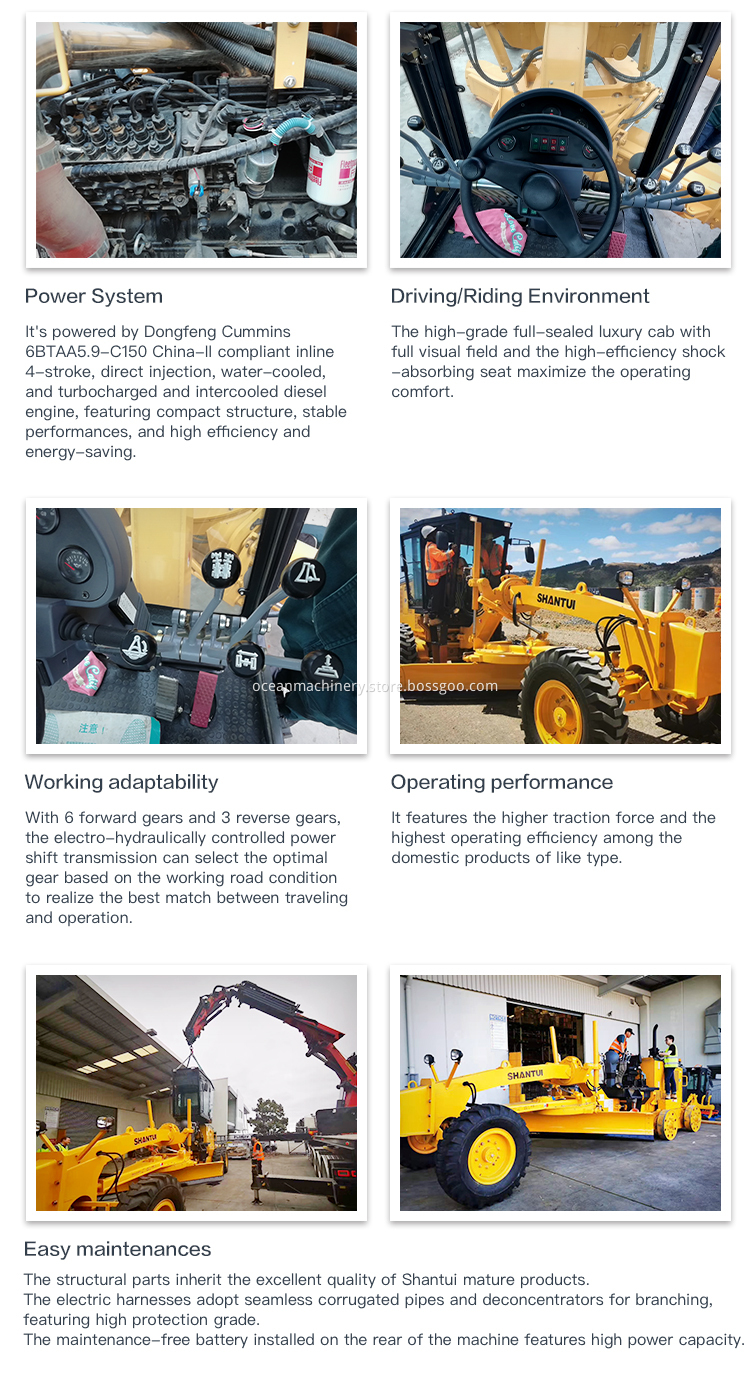

Power System
● It's powered by Dongfeng Cummins 6BTAA5.9-C180 China-II compliant inline, 4-stroke, direct injection, water-cooled, and turbocharged and intercooled diesel engine, featuring compact structure, stable performances, and high efficiency and energy-saving.
● The high torque reserve enables the machine to output stable power under severe working conditions and meet your working needs.
All the motor grader spare parts ,wheel loader spare parts ,engine spare parts with excellent quality .
Product Paramenters
|
Parameters
|
|||||
|
L*W*H
|
8120*2410*3235mm
|
||||
|
Min ground clearance of front axle
|
590mm
|
||||
|
Ground clearance of rear axle
|
400mm
|
||||
|
Wheelbase
|
6040mm
|
||||
|
Wheel tread
|
2070mm
|
||||
|
Balance box center distance
|
1538mm
|
||||
|
Overall parameters
|
|||||
|
Overall working weight
|
12100kg
|
||||
|
Max. inclination angle of front wheel
|
18°
|
||||
|
Max. swing angle of front axle
|
16°
|
||||
|
Max. steering angle of front wheel
|
50°
|
||||
|
Steering angle of articulated frame
|
25°
|
||||
|
Cutter diameter
|
1375mm
|
||||
|
Cutter size
|
3048*580*16mm
|
||||
|
Swing angle of blade
|
360°
|
||||
|
Lift height of blade
|
380mm
|
||||
|
Cutting depth of blade
|
575mm
|
||||
|
Blade cutting angle
|
Front 47/rear 5°
|
||||
|
Blade lateral distance
|
500/500mm
|
||||
|
Max. tractive force
|
75.4kN
|
||||
|
Engine
|
|||||
|
Model
|
BF4M1013-15T3R/2
|
||||
|
Type
|
Four-stroke, Inline, water-cooled, direc injection
|
||||
|
Rated Power@Revolution Speed
|
2100r/min
|
||||
|
Displacement
|
4764mL
|
||||
|
Cylinder bore × stroke
|
108*130mm
|
||||
|
Emission standard
|
Tier3
|
||||
|
Max. torque
|
680
|
||||
|
Transmission system
|
|||||
|
Transmission type
|
Fixed shaft power shift
|
||||
|
Torque converter
|
Single-stage single-phase three-element, integrated with gearbox
|
||||
|
Gears
|
Forward 6 reverse 3
|
||||
|
Hydraulic system
|
|||||
|
Type
|
Open-type system
|
||||
|
System pressure
|
18MPa
|
||||
|
Fill capacity
|
|||||
|
Fuel
|
210L
|
||||
|
Hydraulic oil
|
80L
|
||||
Technical Features
● The motor grader with Cummins engine features reliable performances and high efficiency and energy-saving.
● The 6-speed electronically controlled shift hydraulic transmission with ZF technology features reasonable speed ratio distribution to ensure that the whole machine has three working gears at choice to ensure operating reliability and flexibility.
● The box-type structure welded from integral plates features high strength. and the construction machinery parts all excellent .
● The extern ring gear adopted features high transmitted torque, larger blade cutting angle, and better material handling capability and is especially useful while handling dry materials and clays.
● Featuring simple operations and high impact resistance against external forces, it’s applicable for the working conditions with high operating volume and severe operating environment.
● The international advanced hydraulic brake control technologies and international renowned hydraulic units are adopted to ensure braking safety and reliability.
● The full-hydraulic front wheel steering equipped features small turning radius and high mobility and flexibility.
● The high-grade full-sealed luxury cab with total visual field and the high-efficiency shock-absorbing seat maximize the operation comfort.
It will be work smoothly toghter with our Heavy Machinery Rock Bulldozer,heavy excavators ,dump truck ,crane trucks etc .
We will treat our customer like family! Welcome your inquiry!
