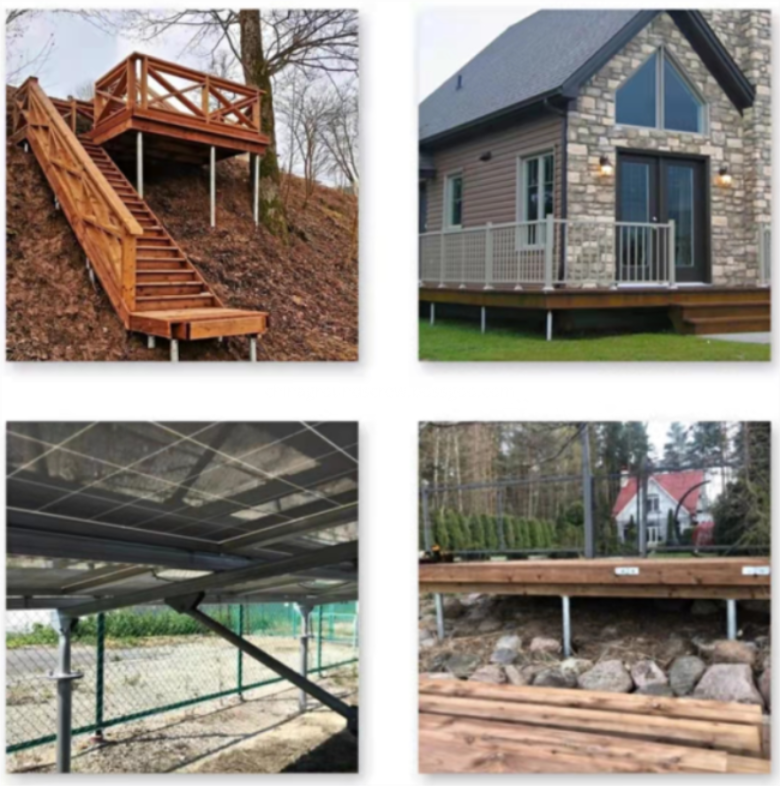

The Flange Ground Screw with flange, flange size is 8*200 mm ,or 6*160 mm,or according to clients' request.Ground Screw also known as Ground Anchor,Screw Pile,Helical Piers,etc.Hot dip galvanized Flange Ground Screw for lighting pole,timber construction,farm and fencing,house construction,solar energy system.

Easy install by spiral piling machine,no digging,no concrete,no waiting,much convenient,cost effective,save time,suitable for different soil.These are unique advantages of using Ground Pile,so in recent years,Ground Screw Piles has been more and more widely used and recognized.

Material of Ground Screws: S 235 carbon steel.

Length of the F Series Ground Screw:550-6000 mm.

Ground Screw Pile's diameter: 48 mm,68 mm,76 mm,89 mm,114 mm,according to clients' request.

Thickness of pile:2.75 mm,3.00 mm,3.75 mm,4.00 mm.

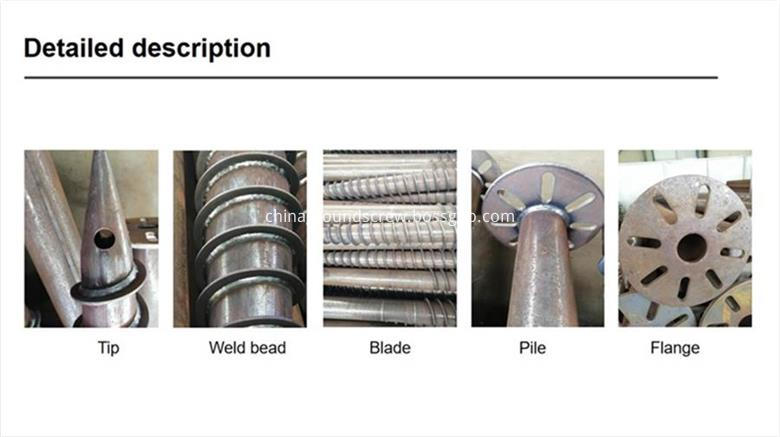

Flange diameter:200 mm or 220 mm, thickness:8 mm or according to clients' request.

Continuous welding with auto welding machine .

Surface treatment :High dip galvanized,according to DIN EN ISO 1461-1999,thickness of coating zinc :more than 80 micron.

Ground Screw Anchor's common size as follow:
