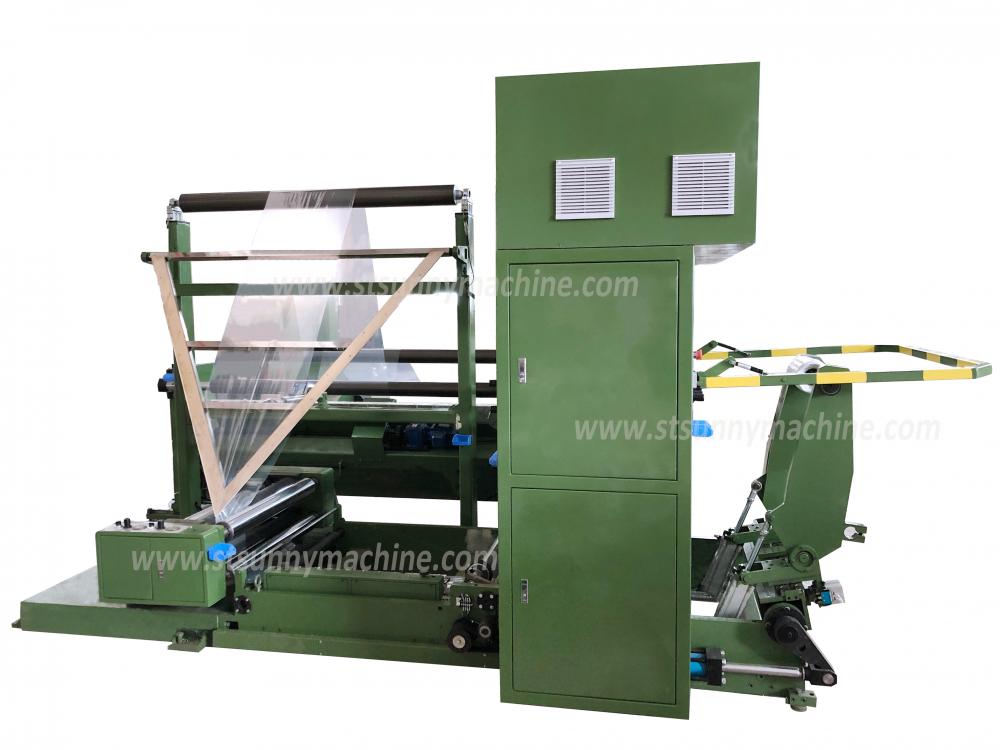

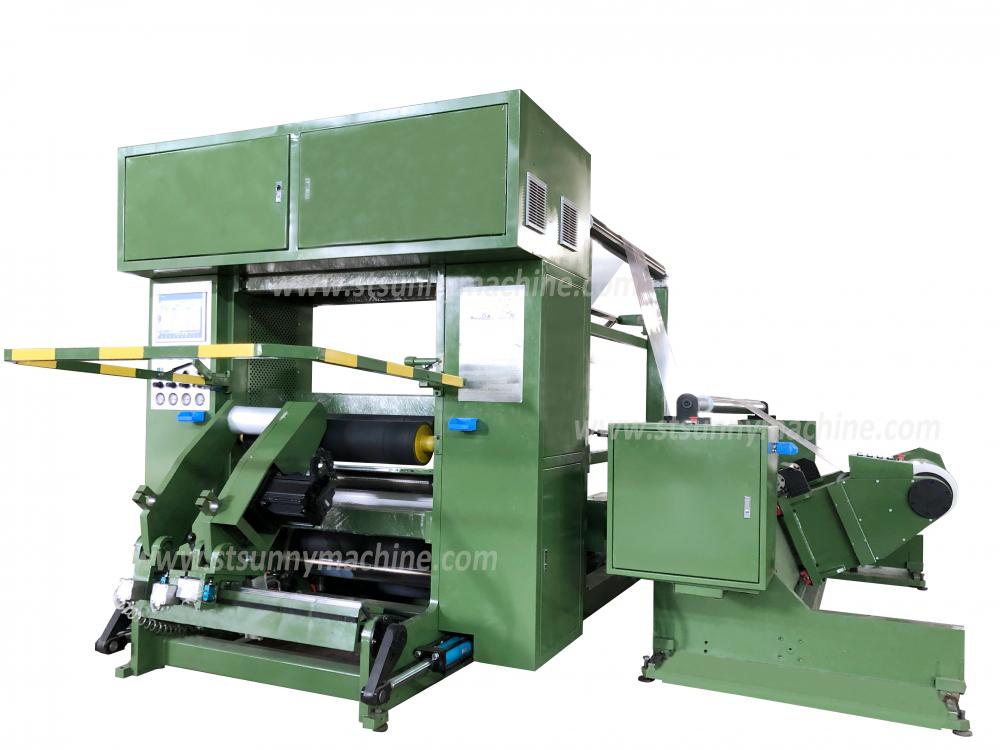

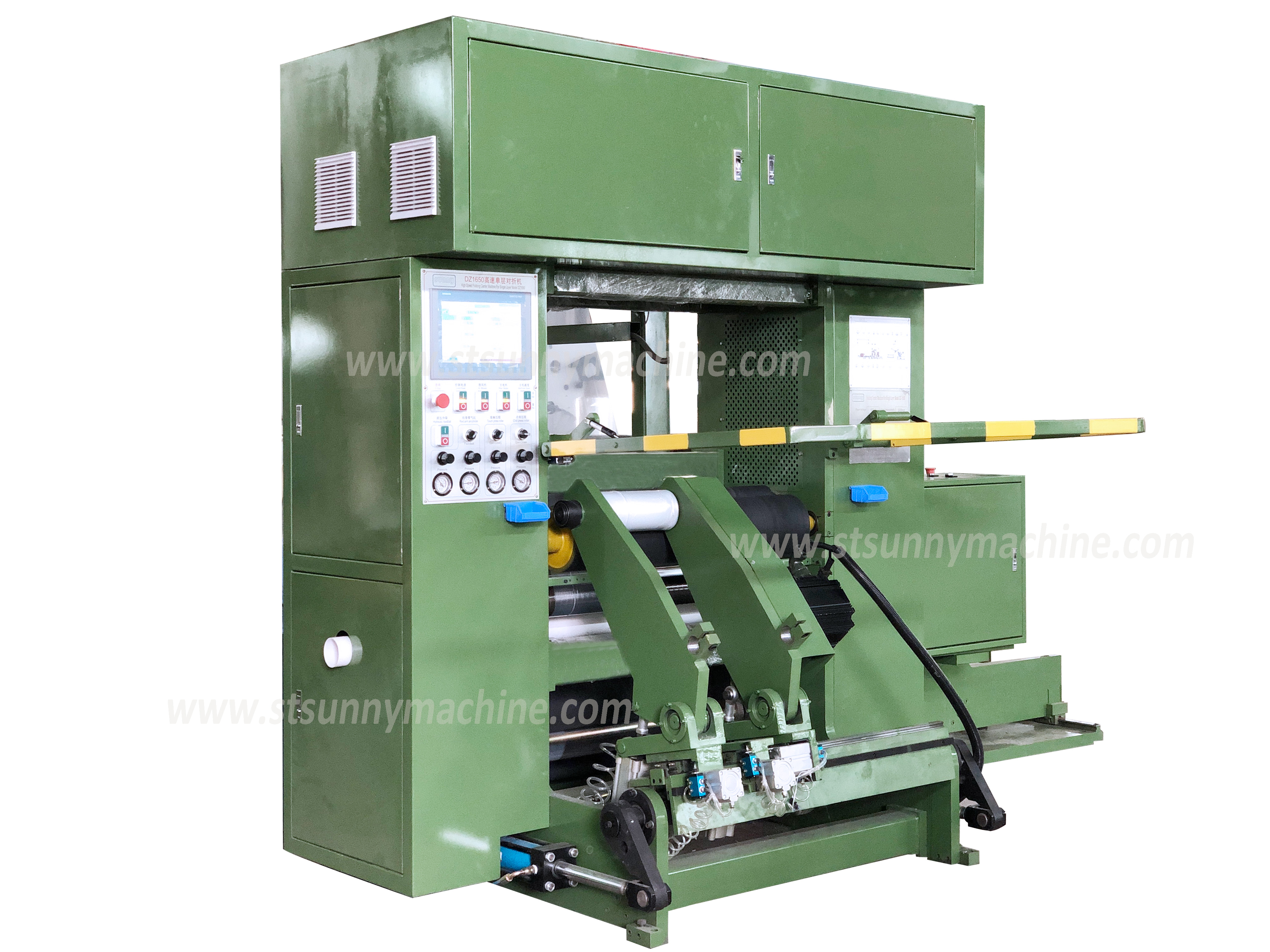

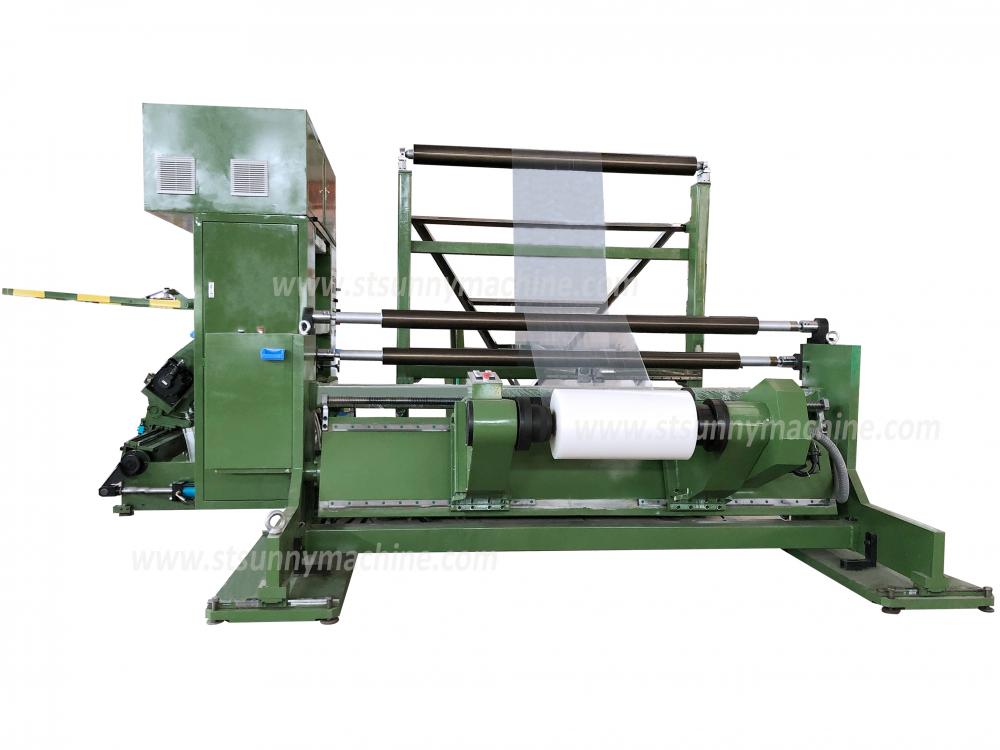

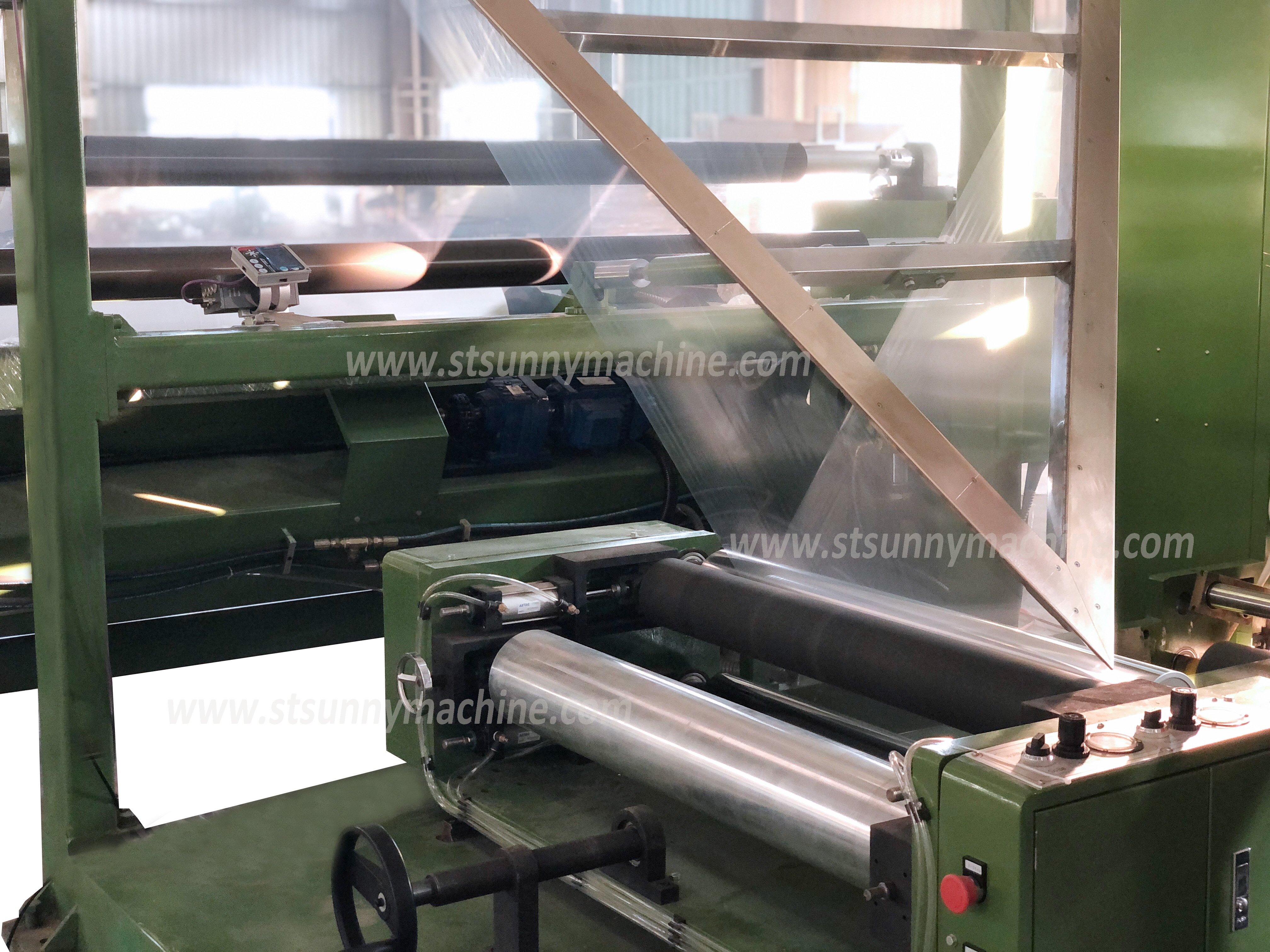

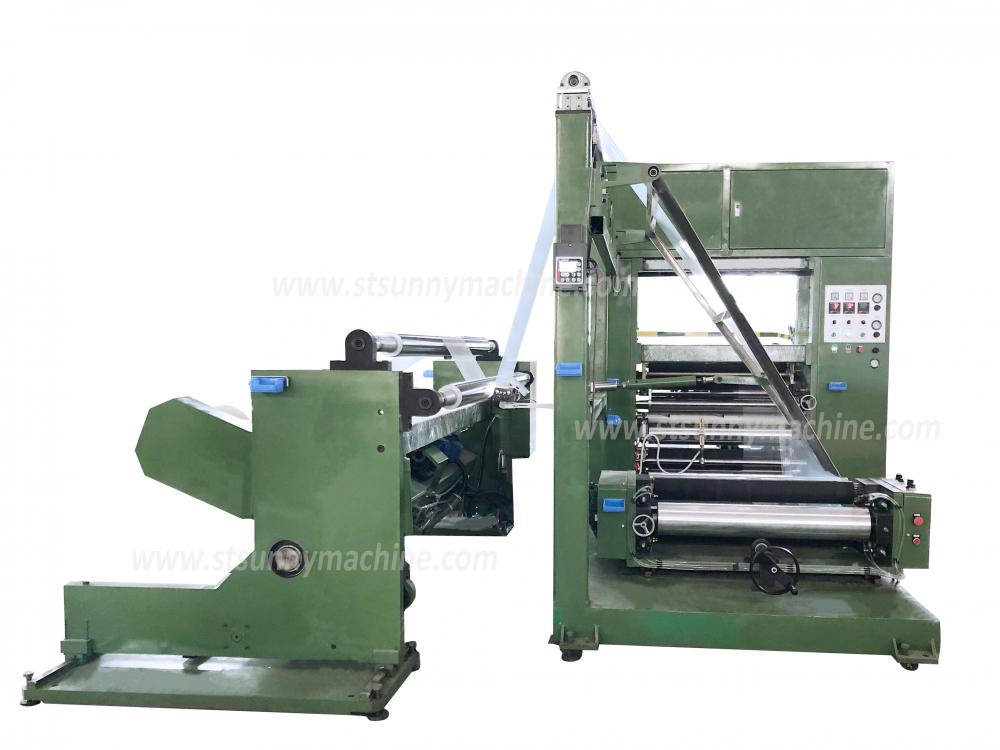

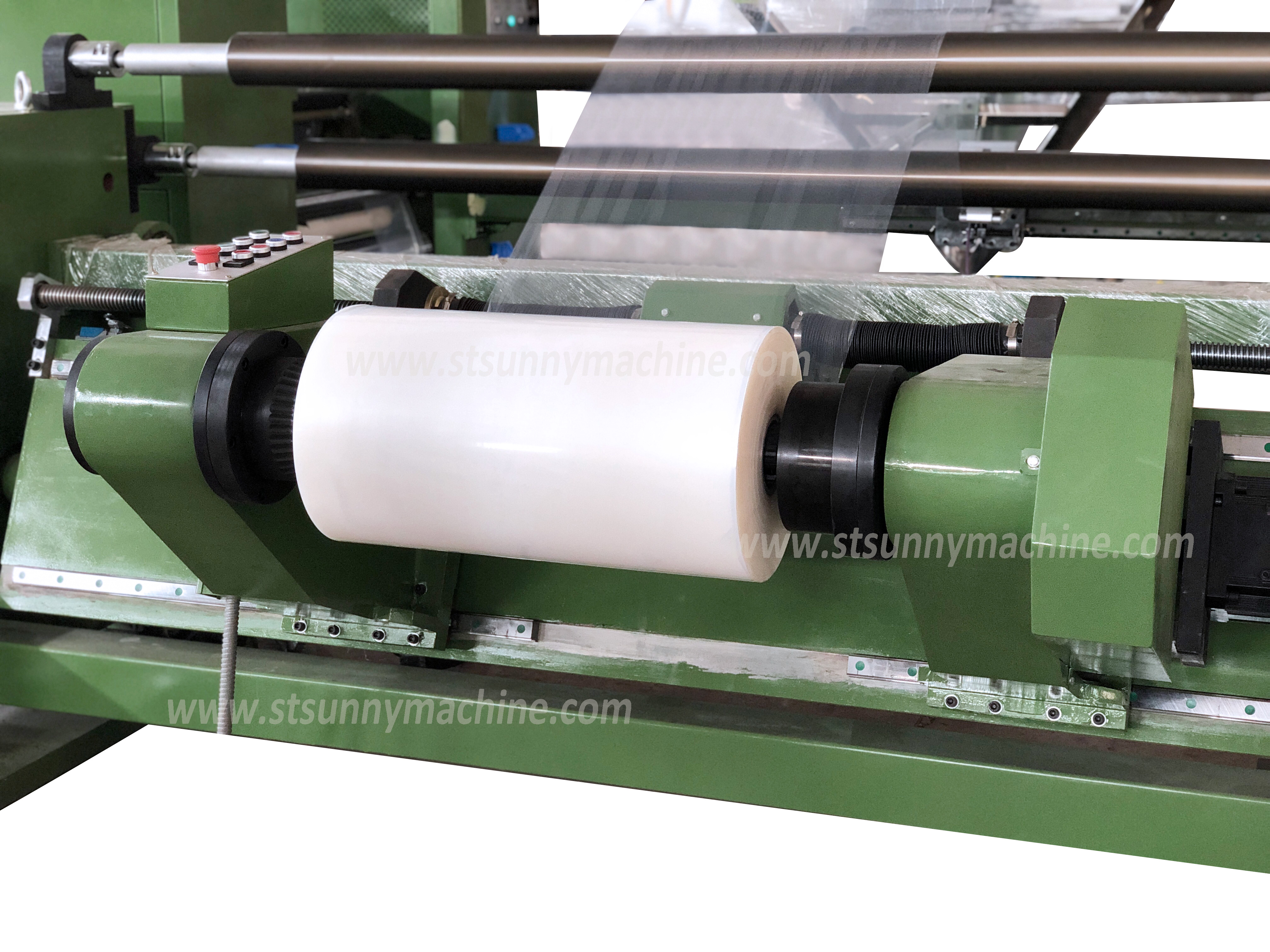

PP Film Triangle Folding And Rewinding Machine
Application: APP Film Triangle Folding And Rewinding Machine provided raw material by Unwind device. By Folding device andTraction heating cutting device to produce different specification material of customer. whole machine adopts PLC, Ditital module and SIMENS HMI achieved full automatic control, full automatic tension control ensure machine run in high speed and with high degree of automation and stable performance.
Features at glance
PANASONIC AC SERVO MOTOR DRIVE to Rewind, PANASONIC AC SERVO MOTOR DRIVER achieved dynamic condition automatic control between the
line-speed of whole machine and 2segments tension. It could achieve soft start and soft stop.
changeable of rolling diameter, which ensure the tension uniformity.
Product specifications:
|
Folding Material |
10-150μm, POF / HDPE / LDPE / CPP / BOPP |
|
Maximum machine speed |
400 m/min |
|
Normal running speed |
300 m/min |
|
Unwind Max. Load-bearing |
1000KG |
|
Max. Unwind diameter |
1000 mm |
|
Min. Unwind width |
400mm |
|
Rewind Max. Diameter |
1000 mm |
|
Max. Effective width |
1600mm |
|
Unwind rolling core |
3- inch and 6- inch chuck |
|
Machine total power |
480 V AC, 3Phase, 60 Hz |
Product configurations
