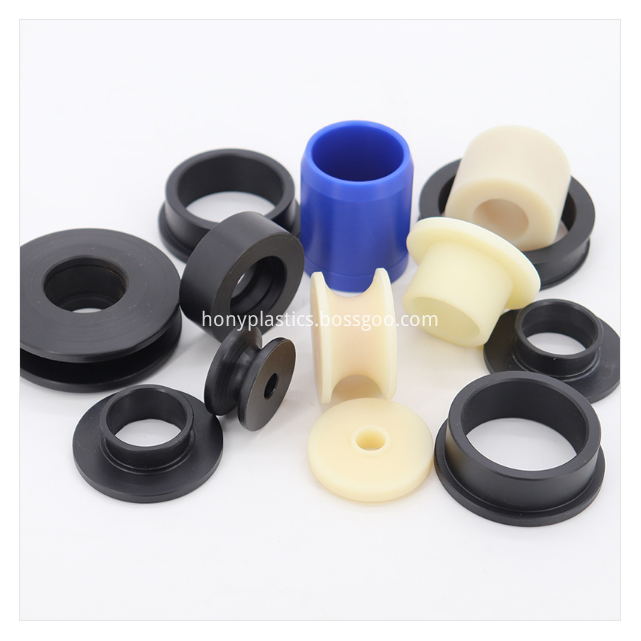

Nylon bushing plain bush flange sleeves

HONY®Customized plastic Nylon sheet MC Nylon plus fiber sheet Polyamide PA66 Sheet board plate panel Overview: Chinese name polyamide, a material with superior comprehensive properties, including mechanical strength, stiffness, toughness, mechanical shock absorption and wear resistance, plus good electrical insulation and chemical resistance, used for mechanical structural parts And the manufacture of maintainable parts, the use temperature is -40-105℃

Color: beige, white, black, blue

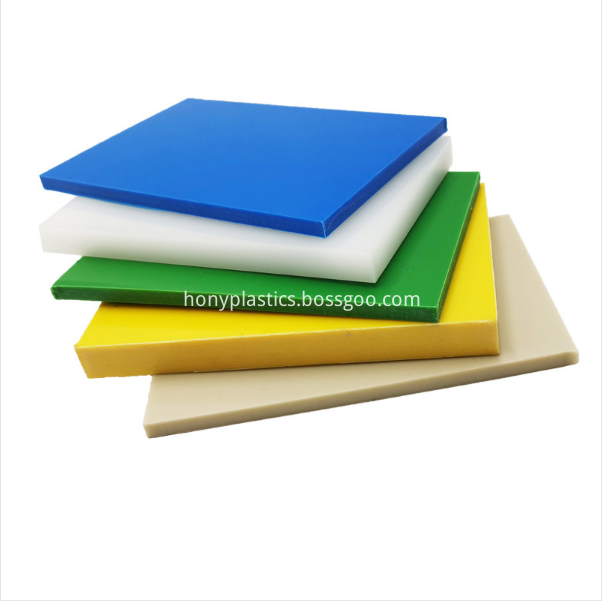

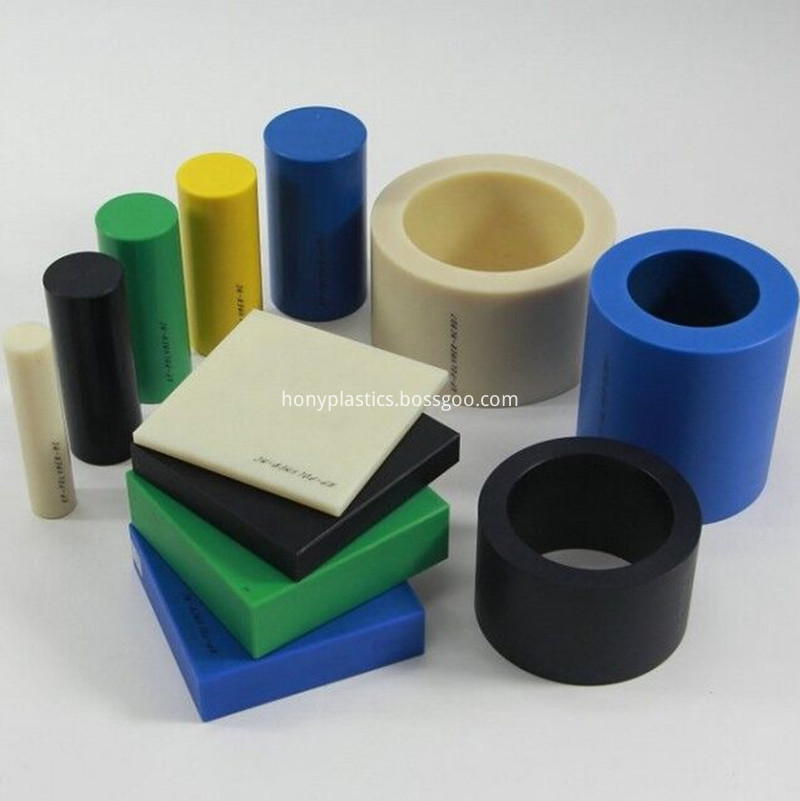

Specification: Plate: Thickness×Width×Length 6-200mm×620/1000mm×1230/2000mm

                     Bar: Diameter×Length 6-200mm×1000/2000mm

Main Types：

At present, the commonly used Plastic Nylon Sheet rod on the market mainly include the following:

1: PA6 (white): This material has the most superior comprehensive properties, including mechanical strength, stiffness, toughness, mechanical shock absorption and wear resistance. These characteristics, coupled with good electrical insulation and chemical resistance, make nylon 6 a "universal grade" material for the manufacture of mechanical structural parts and maintainable parts

2: PA66 (cream color): Compared with nylon 6, its mechanical strength, stiffness, heat resistance, wear resistance, creep resistance are better, but the impact strength and mechanical shock absorption performance are reduced, which is very suitable for automatic lathe machinery Processing;

3.PA 4.6 (red-brown)Compared with ordinary nylon, nylon 4.6 is characterized by strong rigidity preservation, good creep resistance, and is more resistant to heat aging in a wider temperature range. Its stiffness, creep resistance, heat aging, fatigue strength and resistance Grinding performance can reach "higher temperature range" (80 -150 ℃)

4.PA 66+GF30 (black): Compared with pure nylon 66, this hard plastic nylon sheets is reinforced with 30% glass fiber, and its heat resistance, strength and rigidity. Creep resistance, dimensional stability, wear resistance and other properties have been improved, and its maximum allowable use temperature is higher

5.PA 66+MOS2 (gray black): This nylon plate is filled with molybdenum disulfide. Compared with nylon 66, its rigidity, hardness and dimensional stability are improved, but the impact strength is reduced. The crystal grain formation effect of the crystalline structure improves the crystalline structure, and improves the material bearing and wear resistance.

6.1010 nylon rod：1010 nylon sheet is a bar material extruded through advanced technology. It has high strength, high rigidity, high impact and groove toughness, heat resistance and no deformation, high evaporation, high wear resistance and toughness, extremely high non-lubricating properties, high chemical stability, resistance to organic solvents and fuels It is mainly used in bearings, gears, pump parts, auto parts (such as car locks, sprocket gears, cover parts, etc.), slide rails, rollers (decibel that can reduce noise) hardware, etc.

Features:

♦ High strength and stiffness

♦ High impact and notch impact strength

♦ High heat deflection temperature

♦ Good at dampening

♦ Good abrasion resistance

♦ Low coefficient of friction

♦ Good chemical stability against organic solvents and fuels

♦ Excellent electrical properties, ease of printing and dyeing

♦ Food safe, noise reduction

Applications:

1. Chemical Machinery

2. The gears and parts of corrosion equipment.

3. Wearing parts, transmission structure parts

4. Home appliance parts

5.Automotive parts

6. The mechanical parts of screw rod

7. Chemical Equipment

8. Gears, bearings, star wheels

1 What is Excellent Rigidity Glass fiber reinforced PA66 plastic nylon sheet / polyamide material?

Nylon PA6 Sheets & Rods that made the with 100% Virgin Raw Materialby has the best performance, such as: very tough, even at low temperatures, and high hardness in the surface, toughness, mechanical lower shock, and abrasion resistance. Combined with these characteristics and good insulation, and chemical properties, it has become common-level materials. Its widely used in a variety of mechanical structures and spare parts. Nylon PA6 products, has the higher hardness, rigidity, a good resistance to wear and heat deflection temperature.

2 What is Characteristics of Excellent Rigidity Glass fiber reinforced PA66 plastic nylon sheet / polyamide material?

1.Good Tensile strength;

2. High impact and notching impact strength;

3. High heat deflection temperature ;

4.High strength and stiffness;

5. Good glide and limp home characters;

6. Good chemical stability against organic solvents and fuels;

7. Resistant to thermal aging (applicable temperature between -50°C and 110°C;

8. Size alternation by humidity absorption must be considered;

3 What is application of Excellent Rigidity Glass fiber reinforced PA66 plastic nylon sheet / polyamide material?

1. Widely substituted for wear parts of mechanical equipment, or used as quick-wear partsof equipment instead of copper and alloy;

2. Shaft sleeve, bearing bush, lining, lining plate, gear;

3. Worm gear, roller copper guide rail, piston ring, seal ring, slide block;

4. Spheric bowl, impeller, blade, cam, nut, valve plate,

5. Pipe, stuffing box, rack, belt pulley, pump rotor, etc.

Remark:

1."+" Tolerable ,   “-”Intolerable , "0"  Depends on the situation

2. The above data is obtained from raw material test data, which is not completely consistent with the performance of the finished product, and the uniqueness of the data is not guaranteed

Main production

Color choose

Package
