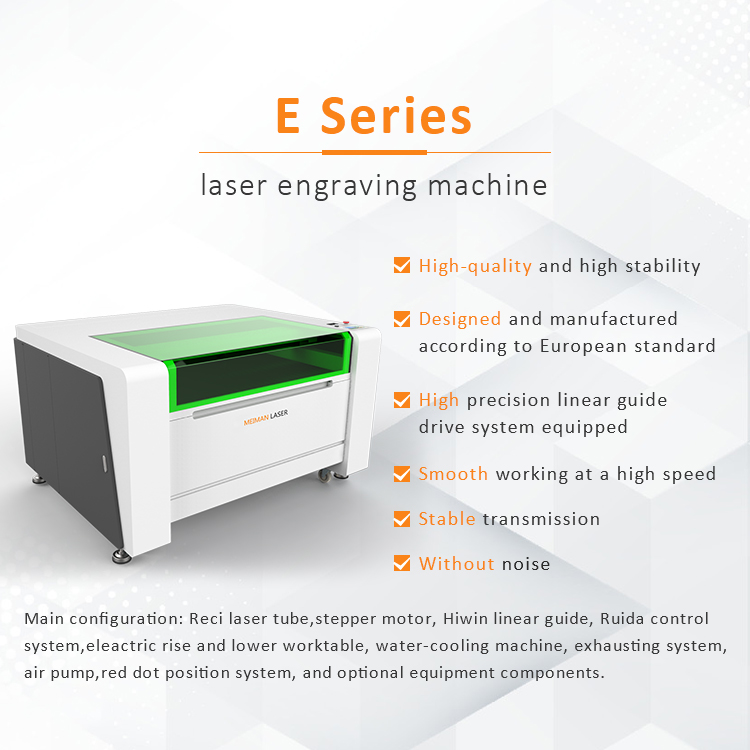

laser engraver details
5 year ago
|
Model
|
FM-E1309
|
FM-E1610
|
|
Working Area
|
1300*900mm
|
1600*1000mm
|
|
Laser Power
|
80W/100W/120W/150W/180W
|
|
|
Laser Type
|
CO2 Sealed Laser Tube,10.6μm
|
|
|
Cooling Type
|
Water Cooling
|
|
|
Engraving Speed
|
0-60000mm/min
|
|
|
Laser Output Control
|
0-100% Set by Software
|
|
|
Min.Engraving Size
|
Chinese:2.0mm*2.0mm,English Letter:1.0mm*1.0mm
|
|
|
Highest Scanning Precision
|
4000DPI
|
|
|
Locating Accuracy
|
≤+0.01mm
|
|
|
Controlling Software
|
DSP Control System
|
|
|
Graphic Format Supported
|
DST PLT BMP DXF DWG AI LAS,etc
|
|
|
Compatible Software
|
TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,All type of AUTOCAD Sofeware in Cloth
|
|
|
Drive System
|
High-precision Stepper Motor
|
|
|
Auxiliary Equipments
|
Exhaust Fan and Air Exhaust Pipe
|
|
|
Power Supply
|
AC110V/220V±10%，50HZ/60HZ
|
|
|
Working Environment
|
Temperature:0-45C,Humidity5-95%(No Condensate Water)
|
|
|
Option
|

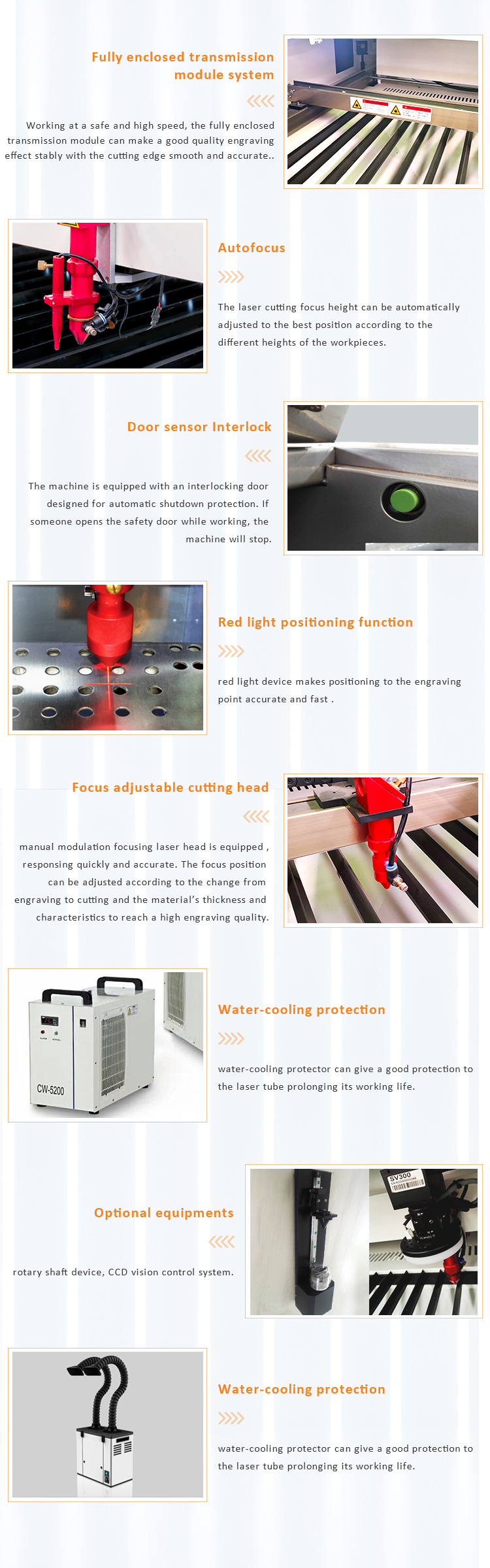

Up&Down Table, Honeycomb Worktable, Rotary Device, Auto-focus Device
|
|
|
Material
|
Cut
|
Engrave
|
|
Acrylic, Plexiglass, Pmma, Perspex, Organic board, Double color plate
|
√
|
√
|
|
Plastic, PP, PET, PC, PMMA, PS, PES, PA, Plastic Foils&Films, Polycarbonate, polyester or polyimide membrane keyboards
|
√
|
√
|
|
Wood, Bamboo, Veneer, MDF, Blasa wood, Plywood
|
√
|
×
|
|
Leather, Pig leather, Cow Leather, Sheep leather
|
×
|
×
|
|
Textile, cotton, silk, felt, lace, synthetic & technical textiles, aramid, polyester, fleece
|
×
|
×
|
|
Foam& Filter, Mats Polyester (PES), Polyethylene (PE), Polyurethane (PUR)
|
√
|
√
|
|
Neopren
|
√
|
√
|
|
Paper, Cardboard, Chipboard, Press Board
|
√
|
√
|
|
Stone, Ceramic, Granite, Marble, Natural stone, Pebble stone, Slate
|
√
|
√
|
|
Rubber stamps, Synthetic & Silicone Rubber, Natural rubber, Microporous foam
|
√
|
√
|
|
Silicone rubber, Synthetic rubber
|
√
|
√
|
|
Glass,Pressed glass, Float glass, Crystal glass, Mirror glass
|
×
|
√
|
Q1: As I don’t know anything about this machine, how can I choose?
Q2: After I buy this machine, I don’t know how to use it. What should I do?
Q3: Are you a factory or trading company?
Q4: How can your factory do regarding quality control?
Q5: How can I do if the machine goes wrong?
