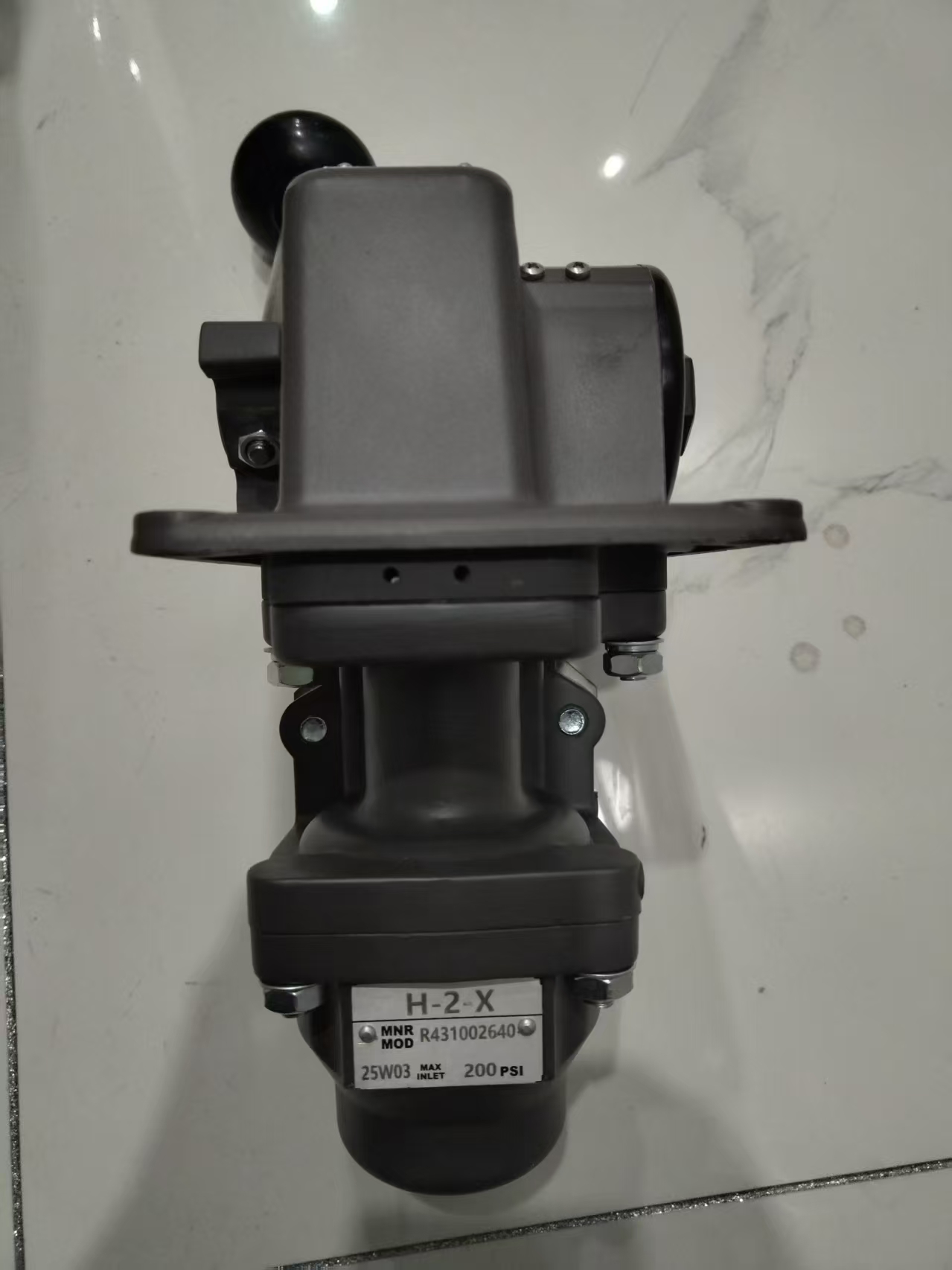

pneumatic valve replacement Aventics R431002640

Rexroth Valve  H-2-FX/P-50494-003
Rexroth Valve  H-2-EX/P51692-1
Rexroth Valve  H-2-LX

Models
There are six models with similar valve functions, but
different handle operating characteristics.
HD-2-X Controlair Valve -Handle is spring returned
to neutral position from all positions in the handle
travel. Some special models exist. See notes on
Identity schedule on page 7.
HD-2-LX Controlair Valve - Handle is spring returned
to neutral position from all positions except at
the maximum pressure setting on both sides of center.
The handle is held in both extreme positions by
a mechanical detent.
HD-2-FX Controlair Valve - Handle is equipped with
a friction brake that will hold the handle in any position
selected in the handle travel.
HD-2-XS Controlair Valve - Handle detents in both
maximum pressure positions. The handle is spring
returned to neutral position from all other positions in
the handle travel. Graduated pressure to port (8) is
only delivered in one direction of the handle movement.
HD-2-FXR Controlair Valve - Handle function is
similar to the HD-2-FX Valve. The difference is the
two directional valves are supplied instead of being
exhausted when the handle is in the neutral position,
HD-2-LS Controlair Valve- Handle holds in full travel,
neutral and detent positions.
