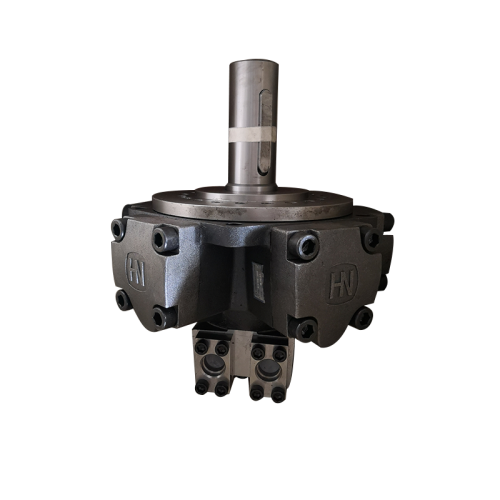

Hydraulic motor

2 month ago

0 0 

3 year

Product details

6.2.5 Low Temperature Performance.

The plush press machine can start normally under environmental changes and oil temperatures ranging from -25℃ to -20℃, or under low temperature conditions agreed upon by the user and the manufacturer.

6.2.6 High Temperature Performance.

When the inlet oil temperature of the motor reaches 90℃ to 100℃, the hydraulic motor and reducer of the press motor should be able to operate normally for more than one hour without any abnormal phenomena.

6.2.7 Overspeed Performance.

When the motor operates at 110% of its rated speed or the maximum speed specified in the design, it should be able to run normally for more than 5 seconds without any abnormalities.

6.2.8 Overload Performance.

The hydraulic motor should be able to operate continuously and normally for more than one minute without any abnormal phenomena when subjected to maximum pressure or rated pressure and 125% of the rated speed.

6.2.9 Shock Resistance Performance.

The hydraulic motor should be able to withstand shock loads, and the tested motor should show no abnormalities within the specified number of shock test cycles.

6.2.10 Sealing Performance.

(a) Static Seal: Under normal operating conditions, the static seal should not leak oil.

Dynamic Seal: Each dynamic seal should not drip oil within 4 hours under normal operating conditions.

6.2.11 Durability.

6.2.11: Durability should meet the following plan:

A 1000-hour full-load test (for bidirectional motors, 500 hours of forward and reverse testing). A 100,000-cycle test run, and a 10-hour overload test.
