Product details

A325M Hex Head Heavy Structural Bolt

Yokelink-Manufacturer of Astm F3125 Grade A325 hex / anchor and structural bolts at best price in china. ASTM A325 Bolts are heavy hex structural bolts that are made up of steel and are heat treated. The minimum tensile strength ranges from 105 to 125 ksi. Viha Steel & Forging is a leading manufacturer and supplier of the different types of astm a325 bolts and nuts with sizes ranging from ½ inches to 1 ½ inches in the imperial system or from 13mm to 38mm in the metric scale.

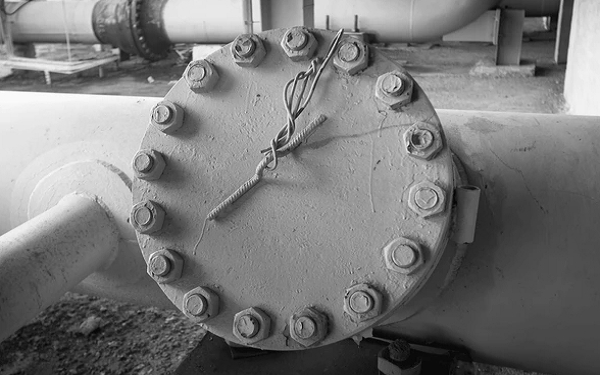

Multi-A325 bolted manhole cover for gas pipel

A325 Multi-bolted manhole cover for gas pipeline inspection

There are different types of Astm F3125 Grade A325 Bolts such as the type 1, 2, 3, T and M. The type 2 is withdrawn and obsolete but the others have different properties and are in use. Each of these bolts also has different connections types as well. The A325 Bolts type 3 bolts are made up of weathering steels. The weathering steel made bolts don’t need coating as the surface become oxidized and the patina acts as a coating against corrosion. The astm a325 type 1 bolts are made of medium carbon, carbon boron or medium carbon alloy steels. These bolts have high toughness as well. But they can be used with different types of coating for corrosion resistance.

Types of ASTM A325 Structural Bolts

TYPE 1	Medium carbon, carbon boron, or medium carbon alloy steel.
TYPE 2	Withdrawn November 1991.
TYPE 3	Weathering steel.

T	Fully threaded A325. (Restricted to 4 times the diameter in length)
M	Metric A325.

high strength bolts ASTM A325 type 1 Stockist in Mumbai, India, View fully threaded astm a325 bolts price and specification

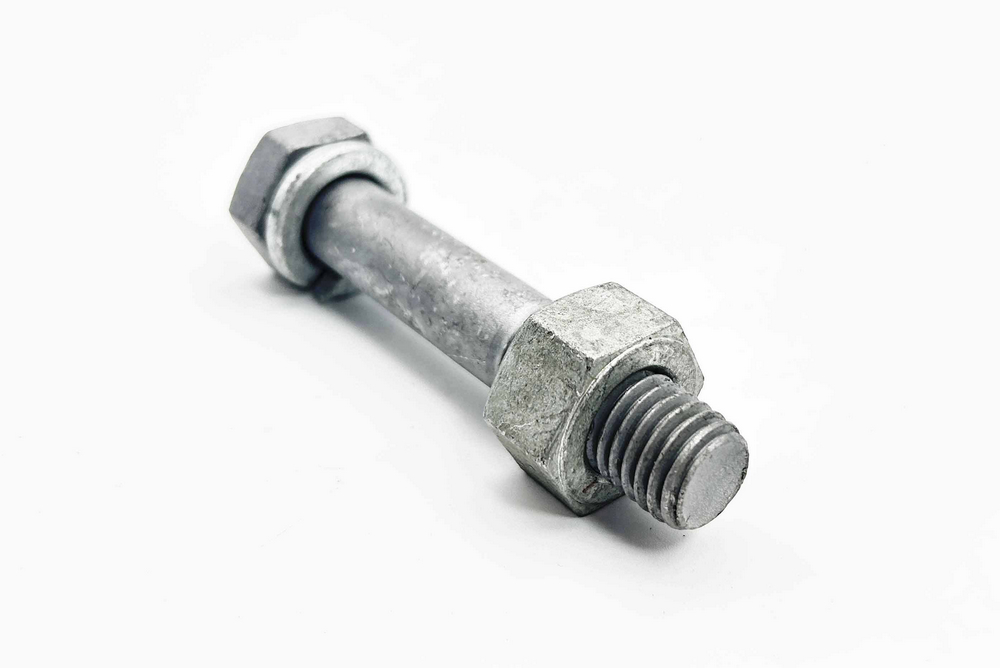

Yokelink ASTM A325 Structural Hex Bolt

A325 Structural Bolt Astm F3125 grade A325 Hex Heavy Bolt (2)

A325 Structural Bolt Astm F3125 grade A325 Hex Heavy Bolt (1)

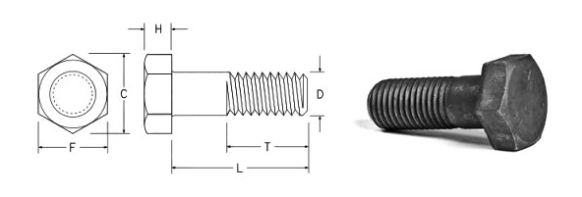

astm f3125 grade a325 bolts Dimensions

ASME B18.2.6 2011, A325 heavy hex bolts

(Dimensions per ASME B18.2.6 2011).

Diameters Allowed:	1/2" – 1-1/2"
Available Lengths:	Up to 6" – 10" maximum (depending on diameter)
Available Finish:	Plain Finish or Hot Dip Galvanized
Origin:	Import or Domestic

The a325 hex bolts have bearing type connection with the shear plane having threads on it. There are SC type connection which is slip critical and the X type connection which has threads excluded from the shear plate. The astm a325 structural bolts are common in outdoor applications to avoid corrosion. As a leading manufacturer and supplier, we produce the bolts in all types and connection types. Please feel free to contact us for more information on the astm a325 stainless steel bolts and the pricing.
