Product details

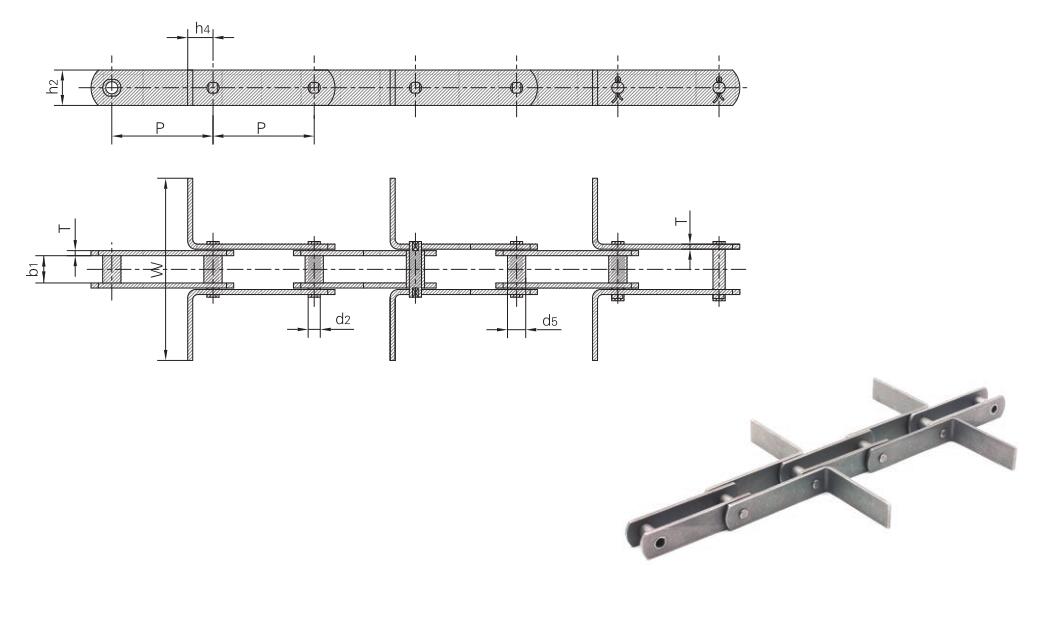

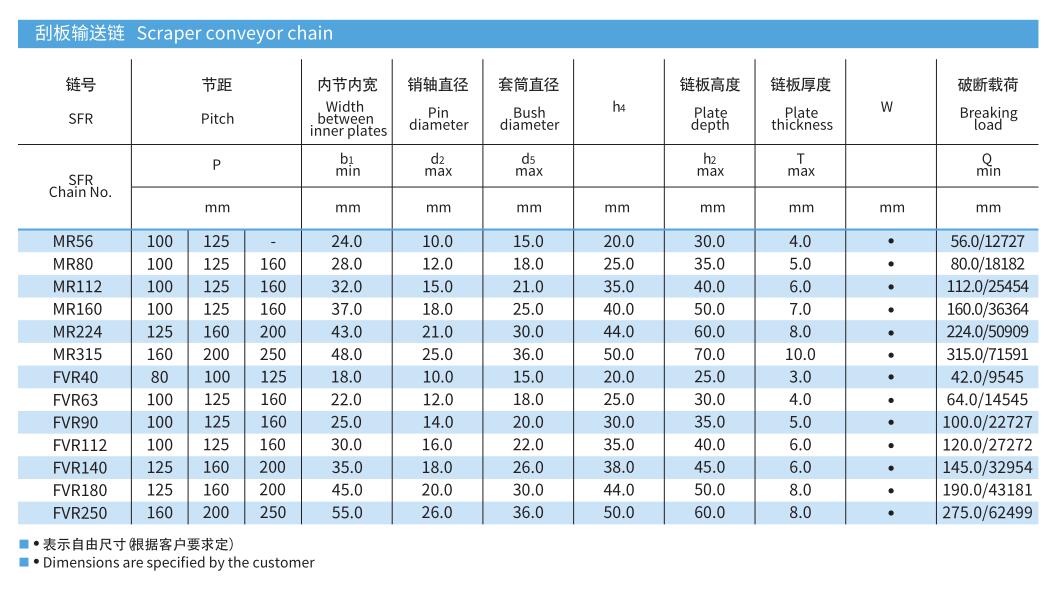

Scraper conveyor chain

Scraper conveyor chain plays a vital role in the conveyor ‌, mainly reflected in the following aspects:

Material conveying ‌ : the scraper conveying chain drives the chain movement through the motor and other driving devices. The scraper contacts with the bottom surface of the trough, and pushes the materials in the trough forward to achieve continuous conveying of materials. This design is suitable for conveying powder, granular, block and other bulk materials ‌

Prevent material leakage ‌ : There is usually a certain gap between the scraper and the conveyor trough, but through the design of a reasonable scraper shape and installation Angle, you can effectively reduce the leakage of materials from the gap, and keep the conveying process clean and efficient. In addition, the scraper can play a role in the turning or inclined section of the conveyor to prevent the material from sliding due to gravity or inertia ‌

Cleaning conveyor trough ‌ : the scraper can continuously clean the residual materials in the conveyor trough during the conveying process, prevent the accumulation of materials in the trough, reduce the risk of blockage, and extend the service life of the conveyor. For materials that are easy to adhere, the scraper reduces the adhesion of materials on the wall of the conveyor trough by continuous scraping, and maintains the smooth operation of the conveyor ‌

Control material flow ‌ : by adjusting the distance or speed of the scraper, the conveying amount of materials can be controlled, and the accurate control of the material flow can be achieved to meet different production needs ‌

Improve the conveying efficiency ‌ : reasonable scraper design can improve the conveying speed and conveying capacity of materials, especially in the long-distance or large inclination of the conveying, the role of the scraper is more significant. In addition, optimizing the shape and layout of the scraper can reduce the resistance during the conveying process, reduce energy consumption, and improve the conveying efficiency ‌

Suitable for a variety of materials ‌ : scraper conveyor can adapt to a variety of materials transport, including powder, granular, block and other different forms of materials, widely used in mining, chemical, grain, building materials and other industries ‌
