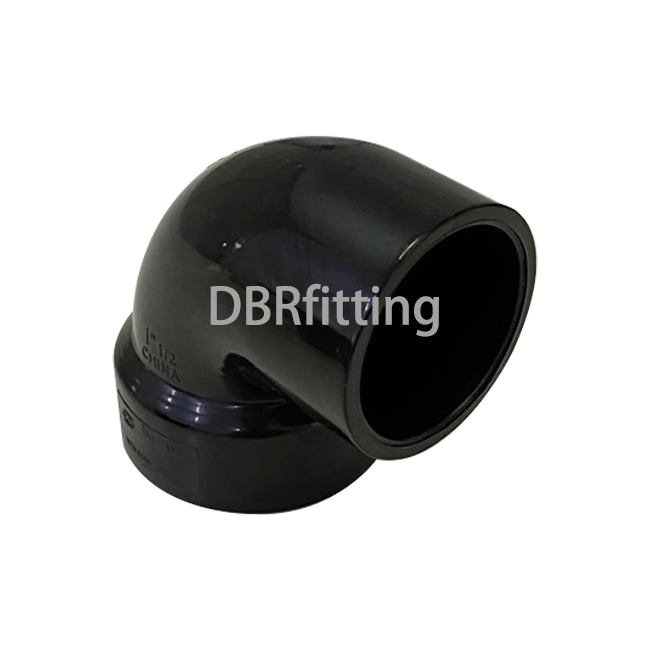

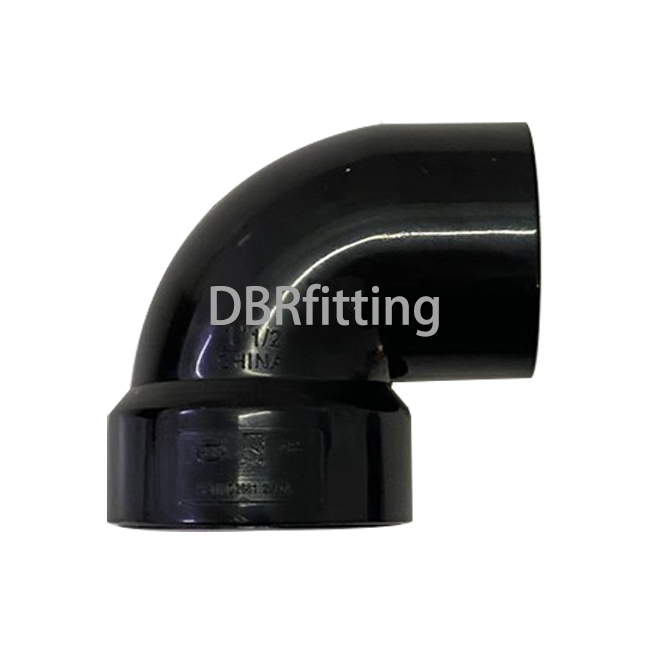

2880C ABS 90 Degree Short Turn Street Elbow

DBRfittings' PVC Short Turn Street Elbow is a specialized fitting used in plumbing and piping systems. It is designed to connect two pipes at a 90-degree angle while minimizing the space required for the turn. Unlike a standard elbow, a street elbow has one threaded end and one socket end, allowing it to fit directly into another fitting or pipe without the need for additional couplings. This makes it particularly useful in tight spaces where a standard elbow might not fit.

Key Features of PVC Short Turn Street Elbows:

1. Space Efficiency: The "short turn" design reduces the overall length of the fitting, making it ideal for confined spaces.

2. Material: Typically made from PVC (Polyvinyl Chloride), which is lightweight, durable, and resistant to corrosion and chemicals.

3. Applications: Commonly used in plumbing, irrigation, and industrial piping systems where tight turns are necessary.

4. Installation: The threaded end allows for easy connection to other fittings, while the socket end can be glued (solvent-welded) to a pipe, ensuring a secure and leak-proof joint.

5. Cost-Effectiveness: Reduces the need for additional couplings, saving both space and material costs.

Comparison with Standard Elbows:

• Standard Elbows: Require a straight pipe segment between fittings, which can increase the overall length of the run.

• Street Elbows: Eliminate the need for extra pipe segments, making them more compact and efficient for tight installations.

Common Challenges:

• Software Limitations: Some design software, like AutoCAD MEP, may not fully support the automatic placement of street elbows, requiring manual adjustments or additional tools.

• Leak Potential: Improper installation can lead to leaks, especially if the fitting is not securely glued or threaded.
