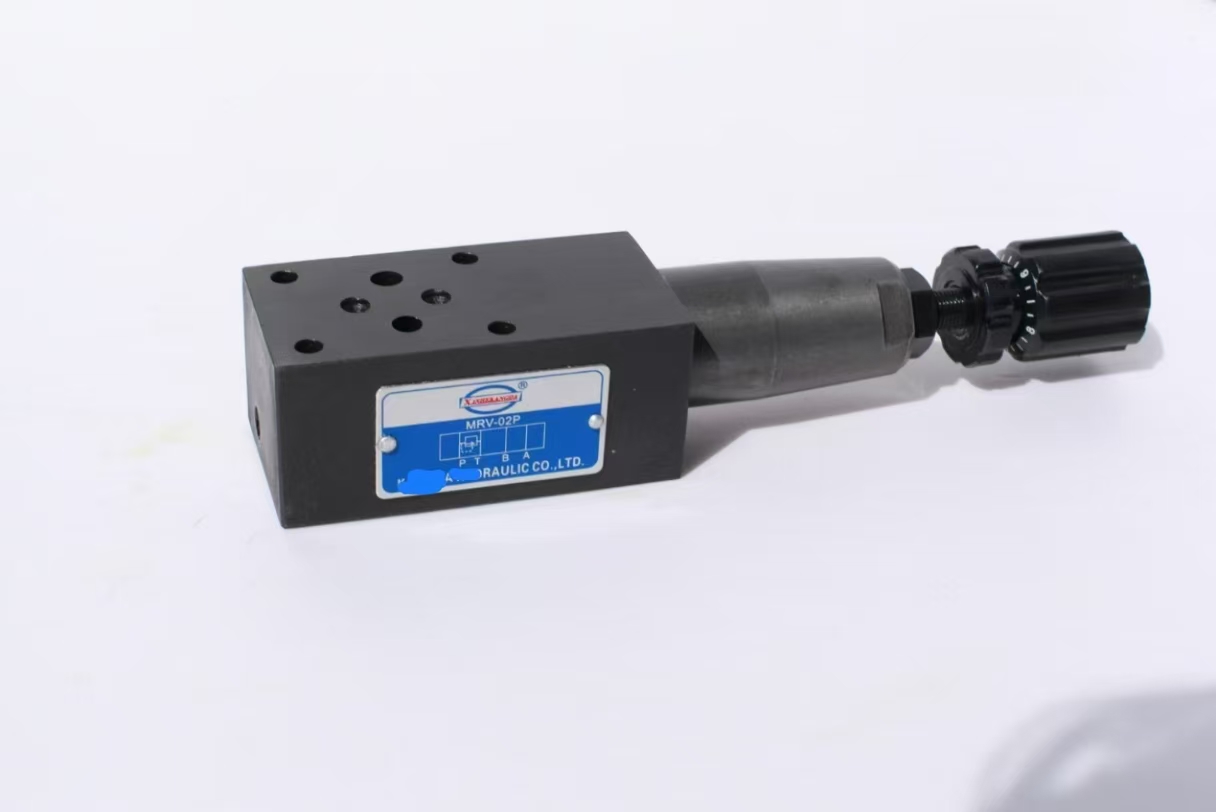

MRV-02P hydraulic valve

3 week ago

1 0 

3 year

Product details

1. Core Definition and Functions

The MBRV 02P is astackable pressure-reducing valve, designed for hydraulic systems to control oil pressure. Its primary function is to regulate the pressure of hydraulic fluid by adjusting the position of the spool, thereby controlling fluid flow and enabling precise control of hydraulic systems.

2. Technical Parameters

【表格】

Parameter Typical Value Remarks

Nominal Diameter 6-10mm Common specification

Rated Pressure 31.5MPa Maximum working pressure

Temperature Range -15℃~70℃ Operating temperature range

Material Carbon steel Valve body material

Connection Method Stackable (ISO/CETOP standards) No piping required, direct stack installation

Max Flow Rate 02:40L/min Varies by size and pressure differential

Applicable Medium Hydraulic oil

3. Structural Features

1. Stackable Design:

• No piping required, directly stacks on a manifold block, simplifying installation.

• Enhances system reliability and facilitates routine inspection and maintenance.

2. Spool and Adjustment Screw:

• The spool controls the fluid path, and the adjustment screw changes the spool position.

• Clockwise rotation increases pressure, counterclockwise rotation decreases pressure.

3. Internal Sealing:

• Employs precision sealing structures to ensure no leakage between the spool and valve body.

Model NO.

MBRV-02P

Drive

Hydraulic

Type

Pilot-Operated Type

Maximum Work Pressure

315 Bar

Flow Range

0.05 to 6,0.25 to 32 L/Min

Minimum Pressure Difference

18 Bar

Working Medium

Minerals, Phosphates

Temperature Range

-20~80 Celsius

Transport Package

Carton and Wooden Box

Specification

Depending on Model

Production Capacity

20000

Origin

China
