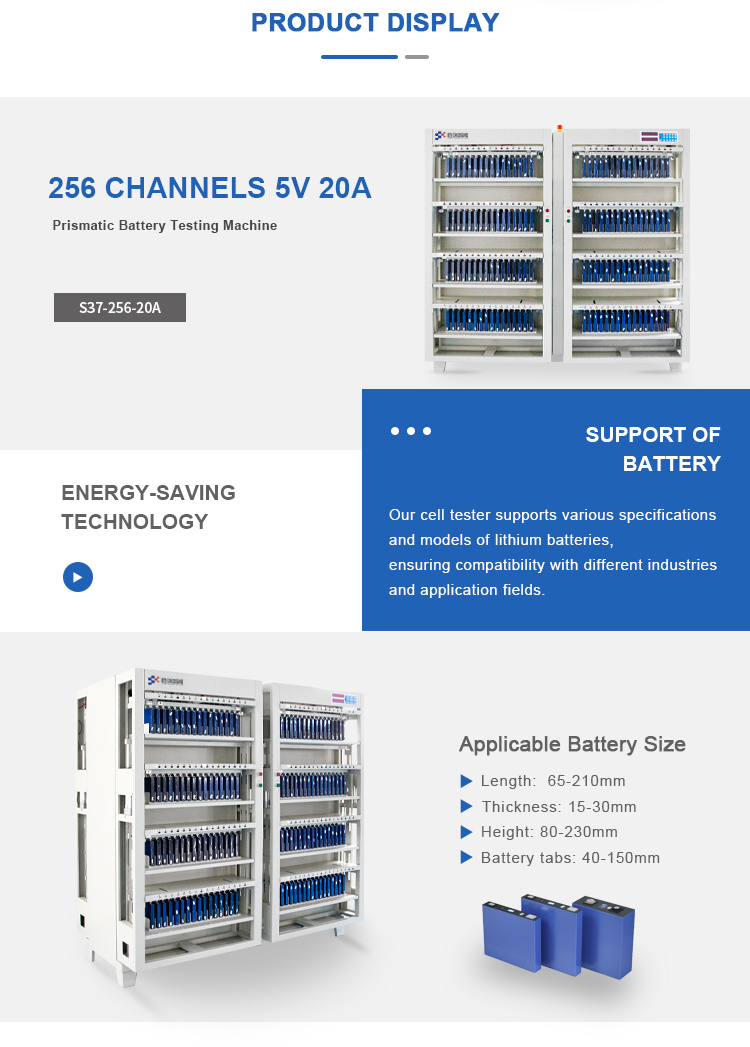

S37-256-20A Energy-Saving and Regenerative Capacity Sorting Equipment.

Equipment Features.

The Li Ion Battery Capacity Tester is defined by the 256 independent channel control capacity - serving as both precision capacity testing equipment and advanced formation rig, its function is to serve as an ideal Equipment For Lithium-Ion Cell Formation in high-throughput production lines. It accepts batteries with lengths of 65-220mm, widths of 16-30mm, height of 90-230mm and tab spacing of 45-160mm. It is able to charge and discharge by either current range of 20mA-10A/40mA-20A. It integrated energy regeneration and contact impedance detection technologies, thus made it appropriate for large scale production, energy storage testing, and as an R&D verification system in laboratory usage.

Core Advantages

Ultra-High Density Design

256 channel with a fixture spacing of 40mm, 256-channel parallel control, redefining how production processes and production line utilization function previously. Next-gen Battery Charge Discharge Test Equipment with a Modular Fixture design and Space Utilization Design save space - estimated 40% improvement of single-machine production capacity against pre-existing equipment and approximately 50% space utilization increase.

Electric push-up loading allows for quick model change.

Contact Impedance Compensation.

This is real-time monitoring of contact impedance and uses a four-wire connection for the reference to detect it.

Intelligent Energy Management.

Utilizes bidirectional inverter technology which achieve 70% discharging efficiency.

80 % charging efficiency with up to 30 % annual electricity cost savings.

Power Factor ≥0.99, Harmonics <5%.

Exacting Control System.

1mV/1mA voltage/current control accuracy.

Current response of ≤50ms.

Supports six modes - Constant Current, Constant Voltage, Constant Power, Constant Resistance.

Intelligent Production Adaptation.

Ability of up to 32 steps / 256 cycles for complicated processes and automatically generating capacity voltage correlation curves.

Seamless connection to a MES system for data traceability.

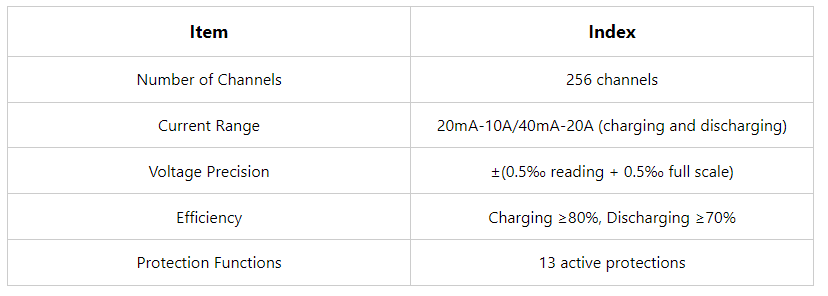

Technical Parameters

Application Fields.

Mass production testing of batteries for new energy vehicle battery.

Battery consistency testing for energy storage systems.

R&D/Process optimization of low-internal-resistance batteries.

Improvement project use to improve yield from battery production.

This equipment as mentioned with it high density channel layout, integration of contact impedance detection technology, with intelligent energy management serves as high-precision, high-efficient testing equipment for power battery production, all standard to provide sync detection of 256 channels plus an adjustable response service of 72 on hold connected and stable for production lines.
