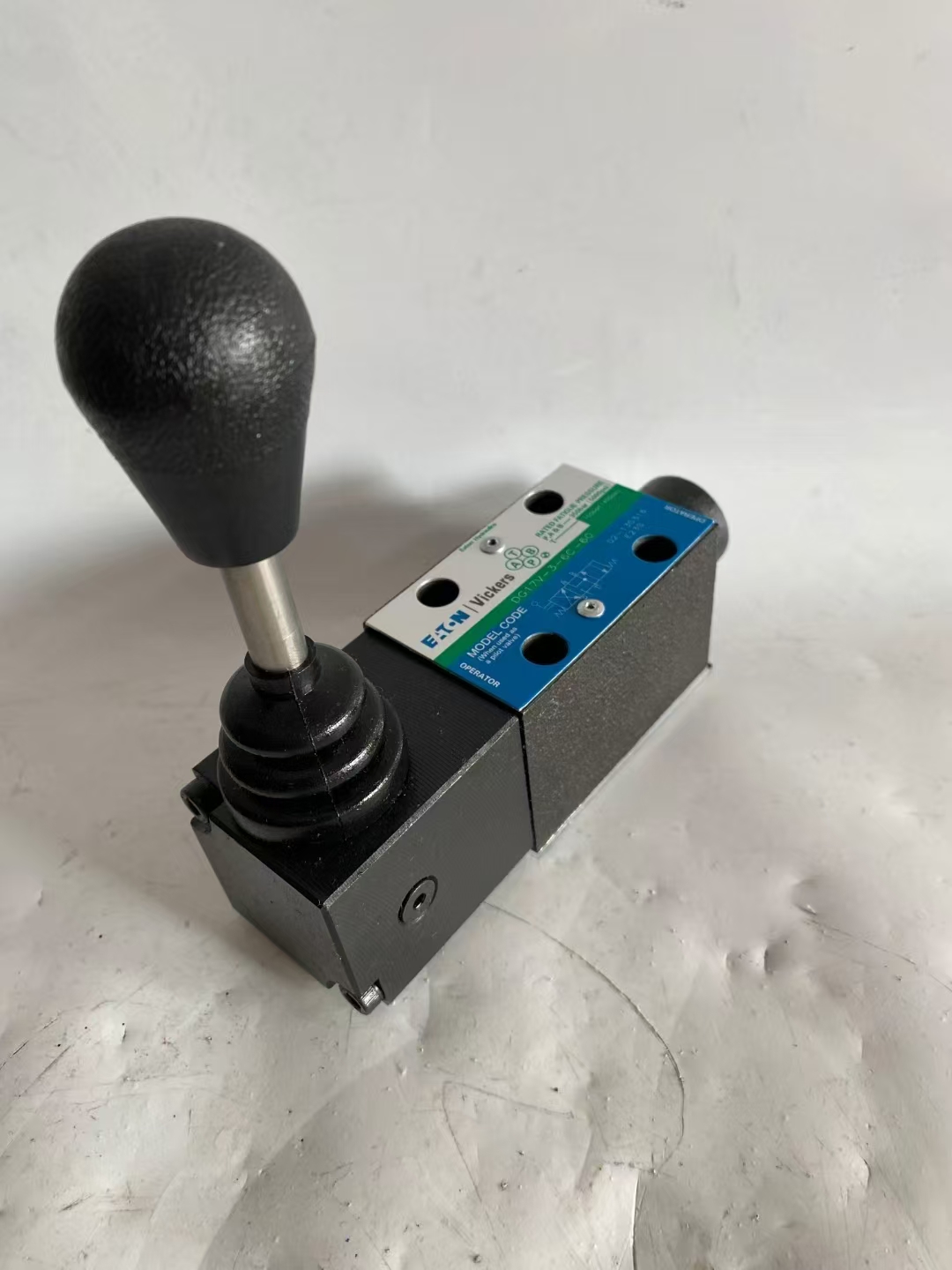

DG17V-3-6C-60 eaton vickers valve

3 week ago

1 0 

3 year

Product details

Technical Overview of DG17V-3-6C-60 Eaton Vickers Valve

I. Product Overview

This valve is adirect-acting proportional directional control valvefrom Eaton Vickers series, primarily used fordirectional controlin industrial hydraulic systems with high-pressure and high-flow capabilities. The model code denotes:

• DG17V: Series identifier (direct-acting directional valve)

• 3: Nominal diameter (10mm)

• 6C: Control cover type (with spring-centered return)

• 60: Design sequence (specific pressure rating and flow characteristics)

II. Key Technical Specifications

【表格】

Parameter Specification

Nominal Pressure 35 MPa (also noted as 5000 psi in some references)

Maximum Flow Rate 20 GPM (approx. 75.7 L/min)

Compatible Media Hydraulic oil (supports explosion-proof wear-resistant hydraulic oil grades 42~48)

Temperature Range -30℃ to 120℃ (suitable for high-temperature operating conditions)

Connection Type Subplate mounting (ISO 4401 standard interface compliant)

Material Cast iron body (rust-proof treated, Viton high-temperature resistant seals)

Return Mechanism Spring-centered return (ensures valve spool stability)

Below is Some Model Code

DG4V-3-2A-M-U-H7-60
DG4V-3-0B-M-U-D6-60
DG4V-3S-6C-M-U-H5-60
DG4V-3-2C-M-U-H7-60
DG4V-3-2C-M-U-B6-6
DG4V-3-22A-M-U-H7-60
DG4V-5-6CJ-M-U-H6-20
G4V-3-0B-M-U-D6-60
DG4V-3S-6C-M-U-H5-60
DG4V-3-6C-M-U-H7-60/ DG4V-3-6C-VM-U-H7-60
DG4V-3-2C-M-U-H7-60
DG4V 3 2N M U H7 60
DG4V-3-2AL-M-UI-H-7-52
DG4V-3-2A-M-U-H7-60
DG4V-3-2A-M-U-B6-60
DG4V-3-2AL-M-U-H7-60
DG3V 3 2N 7 B 60
