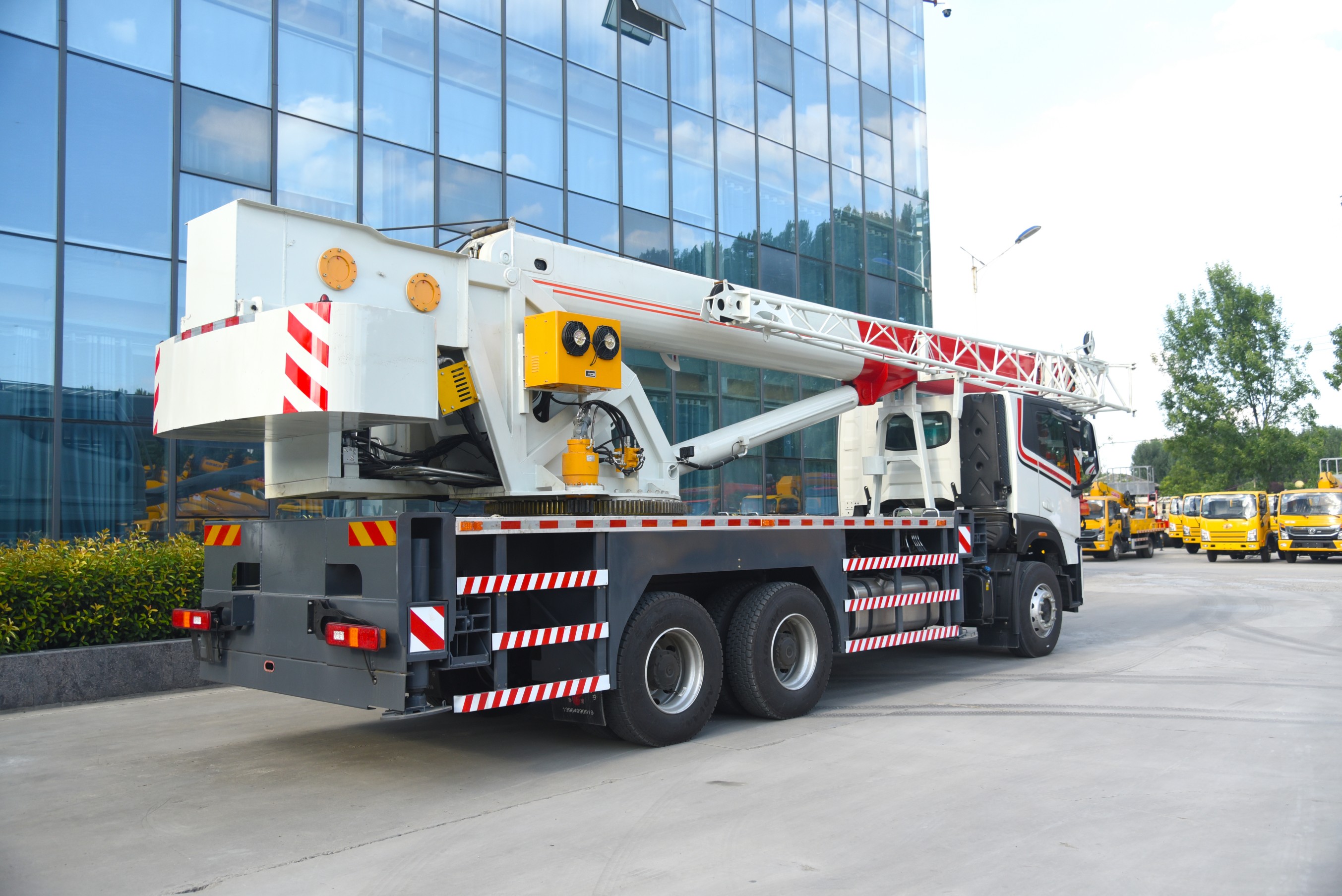

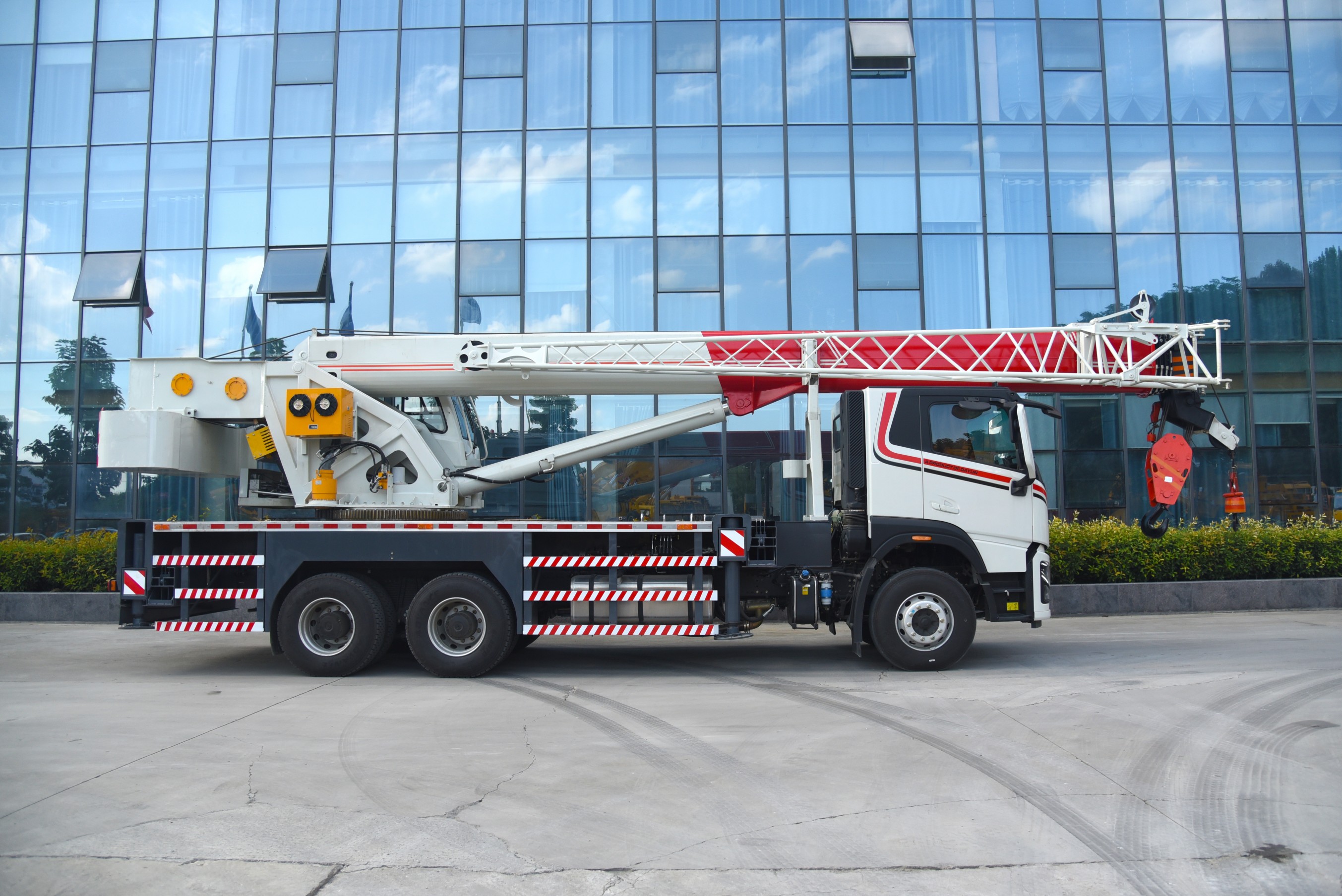

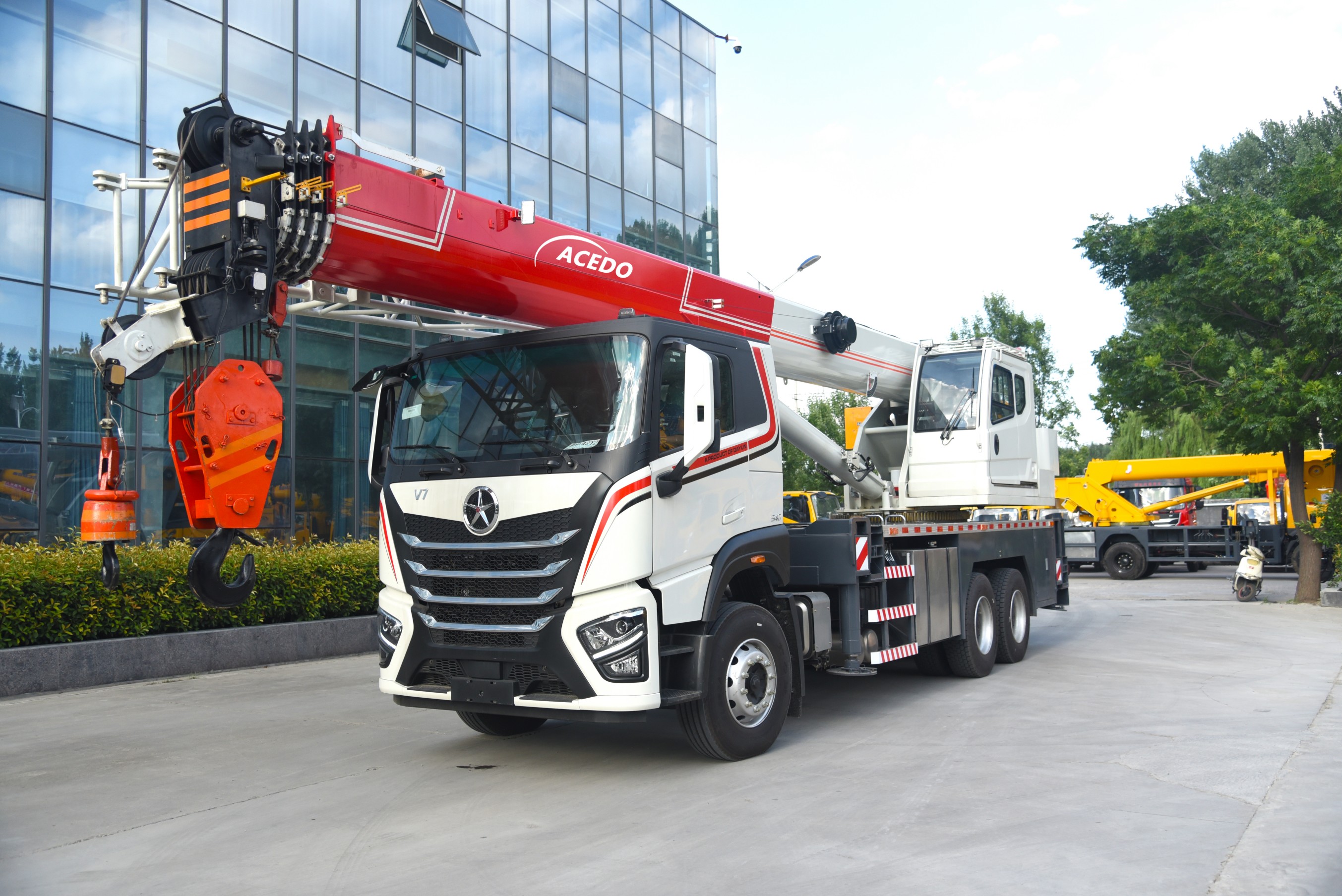

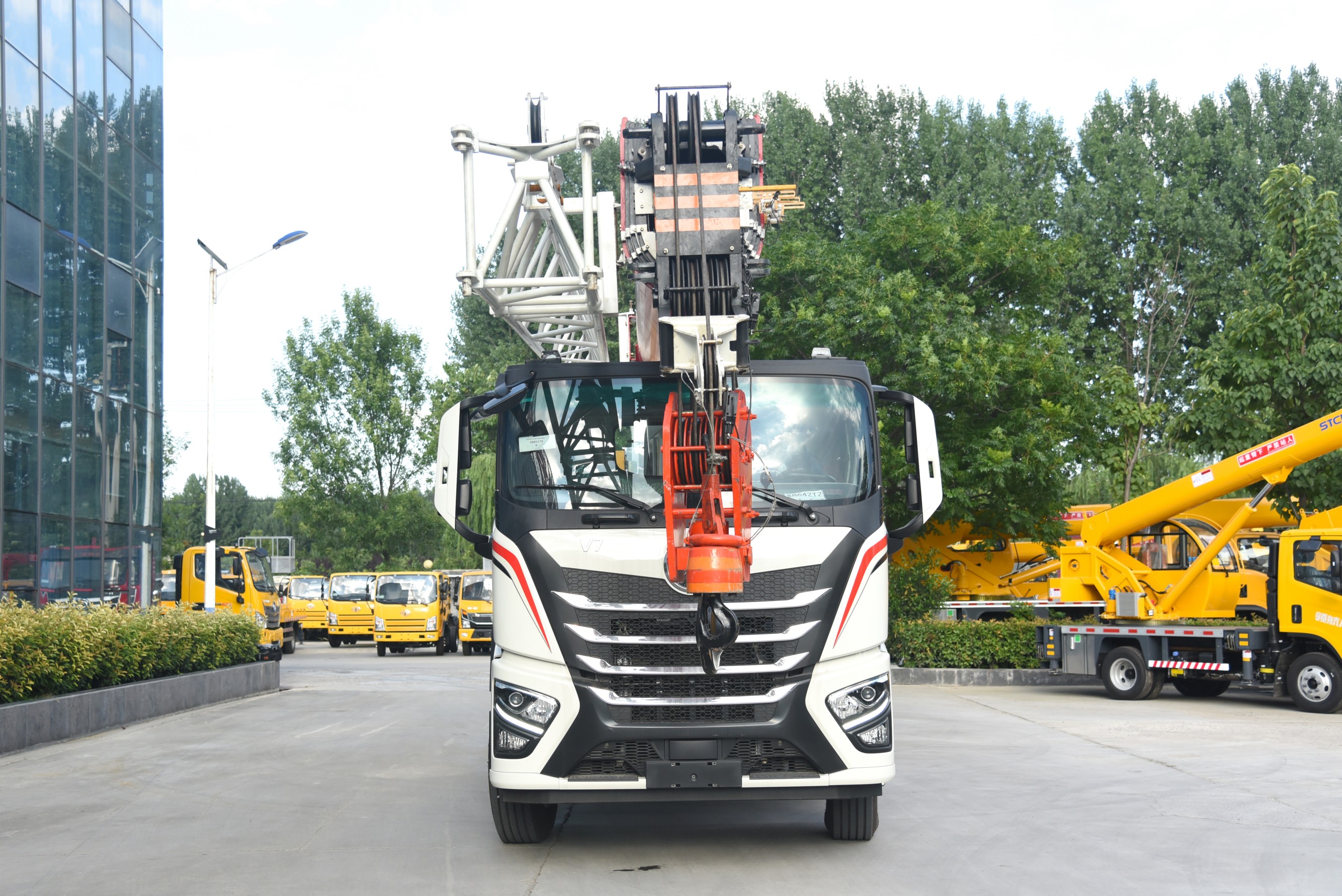

25Ton Truck Crane
2 week ago
|
Catalog |
Item |
Unit |
Value |
|
Dimension |
Overall dimensions (length*width*height) |
mm |
12080*2550*3830 |
|
Weight parameter |
Dead weight in travel state |
kg |
30545 |
|
Front axle |
kg |
6270 |
|
|
Rear axle |
kg |
24150 |
|
|
Travel parameter |
Max.travel speed |
km/h |
86 |
|
Minimum turning radius |
m |
≤11 |
|
|
Minimum ground clearance |
mm |
300 |
|
|
Approach Angle |
° |
18.5° |
|
|
Departure angle |
° |
12.6° |
|
|
Maximum grade |
% |
44 |
|
|
Chassis |
Model |
|
X1341D5W8CUB47-01 |
|
Engine model |
|
WP8.340E51 |
|
|
Engine manufacturer and origin |
|
Weichai Power Co., Ltd. |
|
|
Engine rated power |
|
250/2100 |
|
|
Engine rated torque |
|
1400/1200-1600 |
Main technical parameters in lifting state
|
Category |
Item |
Unit |
Value |
|
|
Main performance parameters |
Max.total rated lifting load |
Kg |
25000 |
|
|
Max.load torque |
Base boom |
kN.m |
1110 |
|
|
Full-extended boom |
kN.m |
588 |
||
|
Full-extended boom+jib |
kN.m |
336 |
||
|
Outrigger span |
Longitudinal |
m |
6.175 |
|
|
Lateral |
m |
6.12 |
||
|
Lifting height |
Base boom |
m |
11.4 |
|
|
Full-extended boom |
m |
39.1 |
||
|
Full-extended boom+Jib |
m |
47.3 |
||
|
Boom length |
Main boom |
m |
10-38 |
|
|
|
Main boom elevation |
° |
-2-80 |
|
|
Working speed parameters |
Luffing time |
S |
36 |
|
|
Telescoping time |
S |
100 |
||
|
Max.swing speed |
r/min |
0-2 |
||
|
Horizontal outrigger full extension/retraction time |
s |
30/25 |
||
|
Vertical outrigger full retraction/extension time |
s |
20/25 |
||
|
Max.hoisting speed(main winch) |
m/min |
120(the fourth) |
||
The truck crane is an indispensable "all-around king" in modern engineering, which perfectly combines the lifting function of the crane with the high mobility of the car, and can quickly complete the lifting task in a variety of complex environments. Its retractable boom design allows flexible length and Angle adjustment according to operation requirements, making it easy to lift heavy equipment and construction materials. At the construction site, the truck crane can quickly lift the prefabricated components to the designated location, providing support for the construction of high-rise buildings; In ports, it can efficiently load and unload cargo and improve logistics efficiency.
The high mobility of the truck crane is one of its significant advantages. It can not only drive at high speed on the highway, but also move quickly on the construction site and quickly arrive at the designated position for operation. The operation of this crane is also very simple, the intelligent control system equipped with the cab can display the operating status of the equipment in real time, and the operator can complete the complex lifting operation by simple buttons and handles. The safety performance of the truck crane has also been fully guaranteed, and it is equipped with a variety of safety devices to ensure the safety of equipment and operators under various working conditions. Truck crane with its strong lifting capacity, high mobility and good safety, has become an indispensable important equipment in modern engineering, providing strong support for engineering construction.
