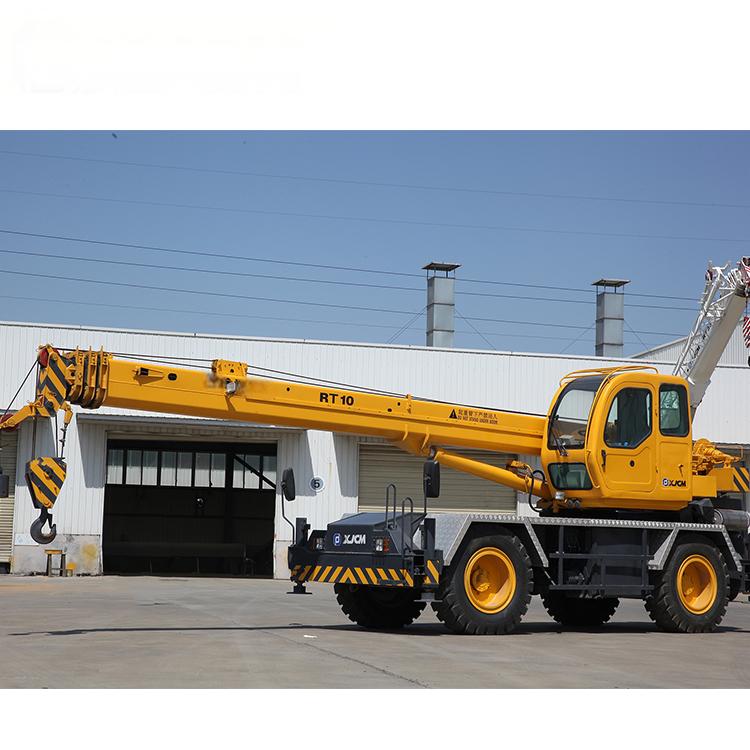

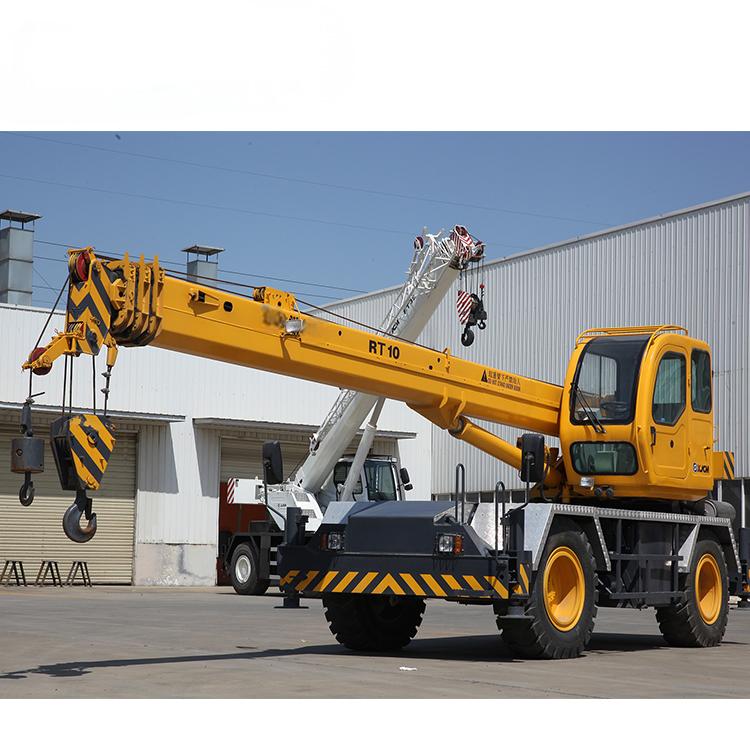

10Ton Rough Terrain Crane

class	project		unit	parameter	Allowance range
size parameter	The whole length		mm	9750	±1％
	Full width of the whole machine		mm	2240	±1％
	The whole machine is all high		mm	3100	±1％
	wheel base		mm	3350	±1％
	tread		mm	1750	±1％
weight parameter	Driving weight of the machine		Kg	11500	±3％
	axle weight	epipodium	Kg	5300	±3％
		aft shaft	Kg	6200 0	±3％
go parameter	Maximum driving speed		Km/h	50	≤
	minimum turning radius		m	3.75	±3％
	Minimum ground clearance		mm	280	±1％
	approach angle		°	22	±1°
	departure angle		°	21	±1°
	Brake distance (vehicle speed: 30 Km/h)		m	≤7.7	≤
	maximum gradability		%	50	≥
motive power parameter	engine type			D04-064	/
	engine power rating		Kw/(r/min)	89/2400	/
	Engine maximum torque		N.m(r/min)	414/1800-2000	/
	Engine emission standards			country Ⅲ	/
Drive type				4×4	/
tyre size				12.00-20(18PR)	/

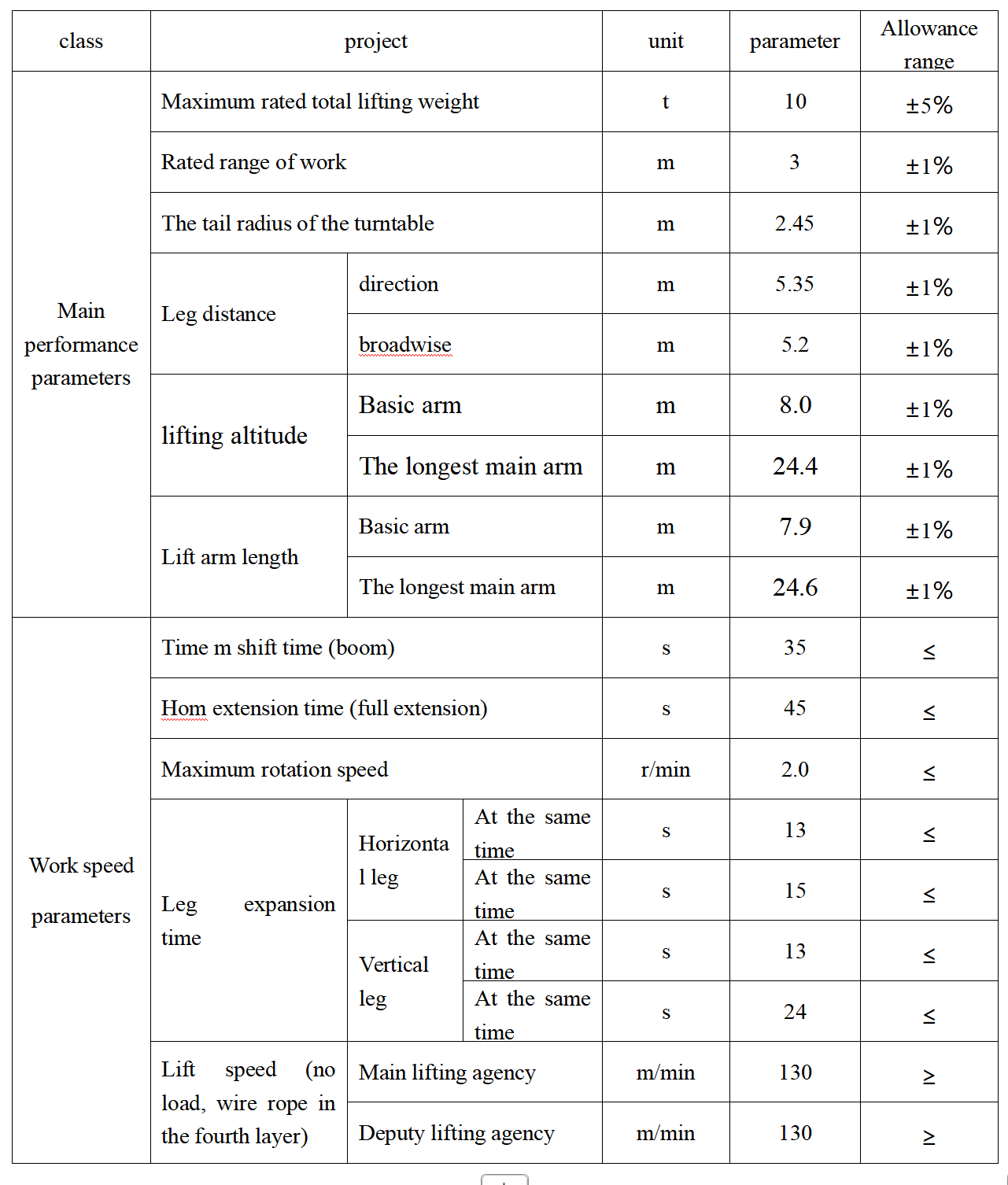

class	project			unit	parameter	Allowance range
Main performance parameters	Maximum rated total lifting weight			t	10	±5％
	Rated range of work			m	3	±1％
	The tail radius of the turntable			m	2.45	±1％
	Leg distance	direction		m	5.35	±1％
		broadwise		m	5.2	±1％
	lifting altitude	Basic arm		m	8.0	±1％
		The longest main arm		m	24.4	±1％
	Lift arm length	Basic arm		m	7.9	±1％
		The longest main arm		m	24.6	±1％
Work speed parameters	Time m shift time (boom)			s	35	≤
	Hom extension time (full extension)			s	45	≤
	Maximum rotation speed			r/min	2.0	≤
	Leg expansion time	Horizontal leg	At the same time	s	13	≤
			At the same time	s	15	≤
		Vertical leg	At the same time	s	13	≤
			At the same time	s	24	≤
	Lift speed (no load, wire rope in the fourth layer)	Main lifting agency		m/min	130	≥
		Deputy lifting agency		m/min	130	≥

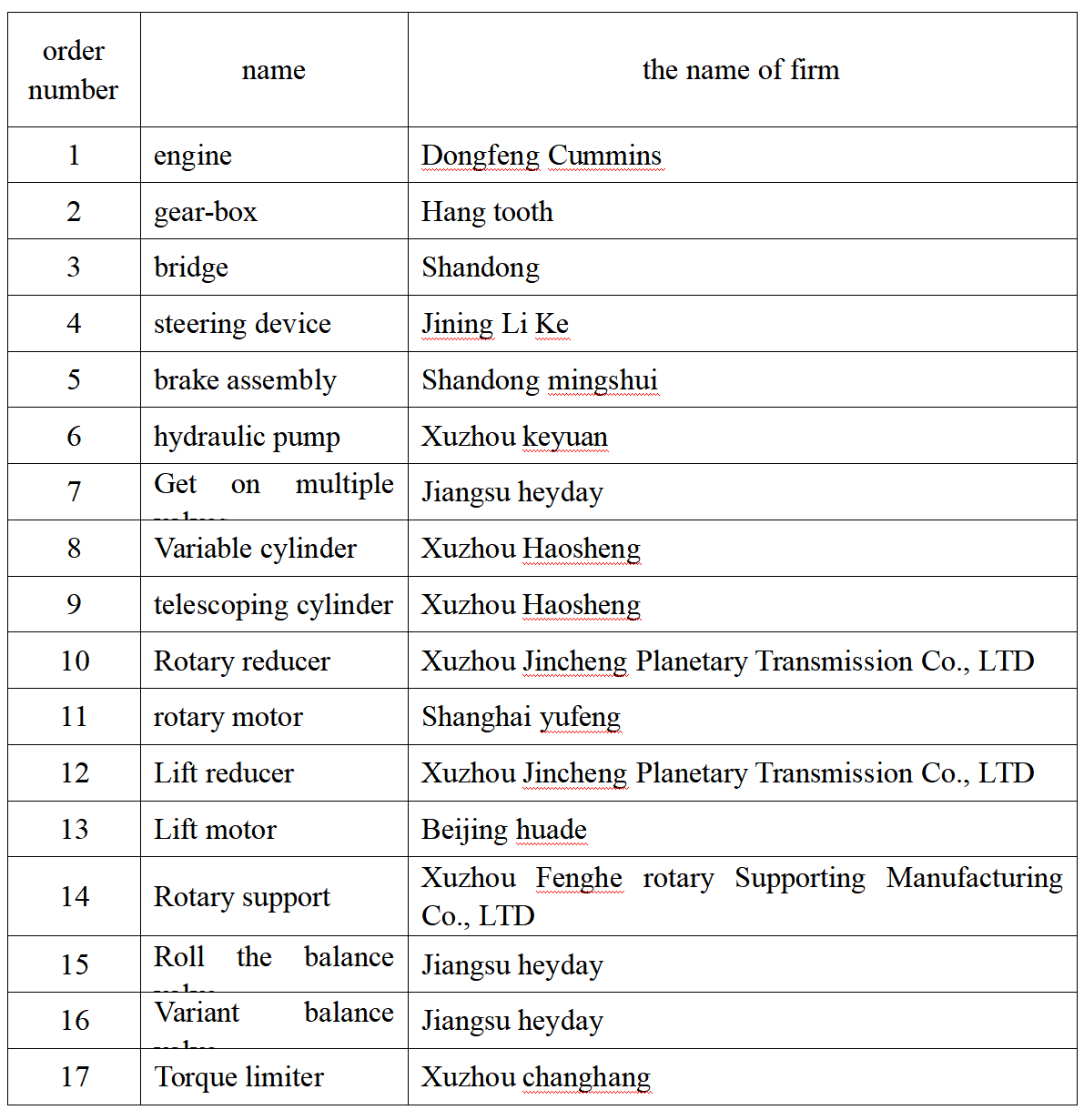

order number	name	the name of firm
1	engine	Dongfeng Cummins
2	gear-box	Hang tooth
3	bridge	Shandong
4	steering device	Jining Li Ke
5	brake assembly	Shandong mingshui
6	hydraulic pump	Xuzhou keyuan
7	Get on multiple valves	Jiangsu heyday
8	Variable cylinder	Xuzhou Haosheng
9	telescoping cylinder	Xuzhou Haosheng
10	Rotary reducer	Xuzhou Jincheng Planetary Transmission Co., LTD
11	rotary motor	Shanghai yufeng
12	Lift reducer	Xuzhou Jincheng Planetary Transmission Co., LTD
13	Lift motor	Beijing huade
14	Rotary support	Xuzhou Fenghe rotary Supporting Manufacturing Co., LTD
15	Roll the balance valve	Jiangsu heyday
16	Variant balance valve	Jiangsu heyday
17	Torque limiter	Xuzhou changhang

                                                                             RT10 Off-road tyre Crane: an efficient solution for complex conditions
​
In the field of engineering operations, the RT10 off-road tire crane has attracted much attention for its unique advantages. It is designed to handle difficult terrain and a variety of lifting tasks, with excellent off-road performance. The special chassis, combined with all-wheel drive and steering system, enables it to travel freely in muddy, rugged construction sites, or field oil fields and other environments, and easily cross obstacles to reach the operation point, passing far more than ordinary cranes. Lifting capacity can not be underestimated, although the maximum lifting weight is not clear, but from the characteristics of the same type of product inferred, enough to cope with common medium-sized heavy lifting. The boom can be flexibly telescoped and varied, and can adjust the scope of operation according to the needs of the operation, whether it is for equipment installation in narrow streets or for loading and unloading in open areas, it can be accurately operated. The mobility of the crane is also extremely prominent, although the driving speed is not fast compared with the general transport vehicle, it can quickly transfer the station in the working area and reduce the auxiliary working time. At the same time, its structure is compact, the turning radius is small, and it can also turn flexibly in the space limited site to carry out lifting operations. In order to ensure safe and efficient operation, it is equipped with advanced safety protection devices to guard the safety of the operation at all times. RT10 off-road tire crane with excellent performance, become a construction site, field operations, logistics and other scenes of the right hand.
