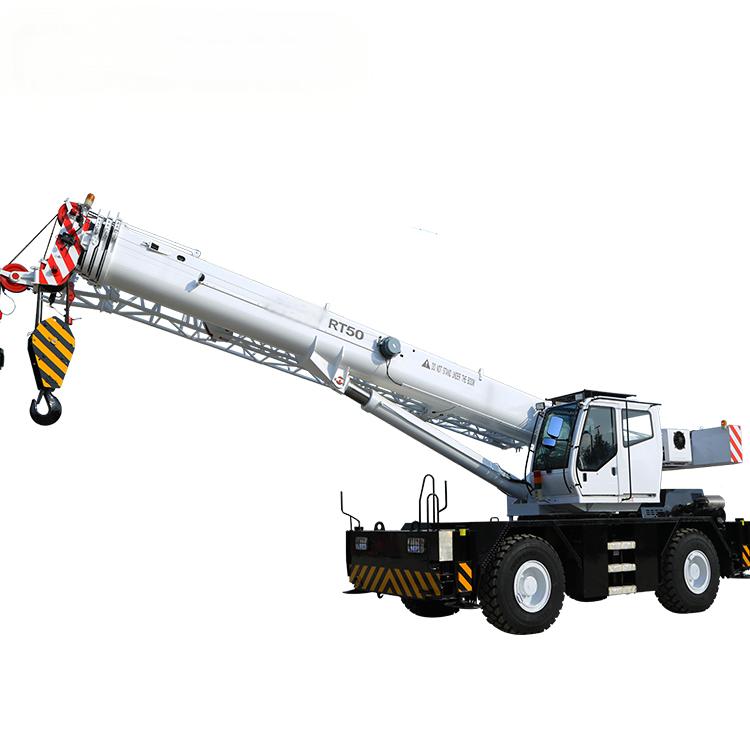

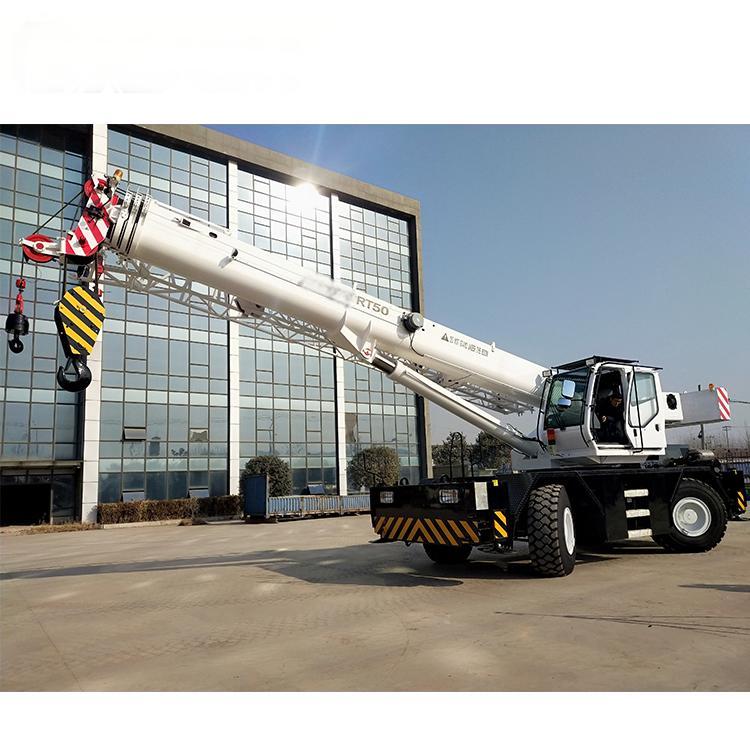

50Ton Rough Terrain Crane

2 week ago

1 0 

3 month

Product details

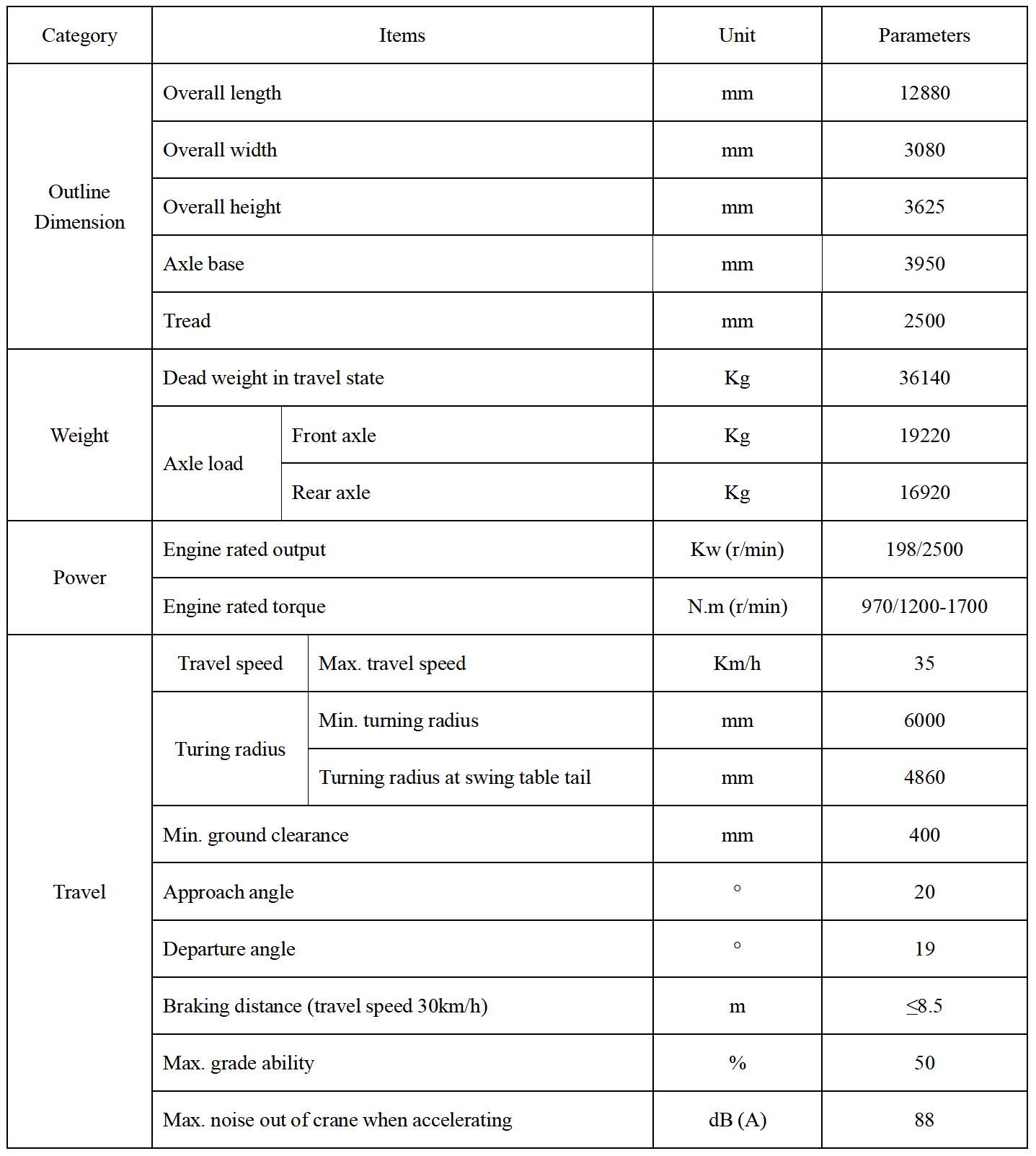

RT50 Main technical parameters table in travel state

Category	Items			Unit	Parameters
Outline Dimension	Overall length			mm	12880
	Overall width			mm	3080
	Overall height			mm	3625
	Axle base			mm	3950
	Tread			mm	2500
Weight	Dead weight in travel state			Kg	36140
	Axle load	Front axle		Kg	19220
		Rear axle		Kg	16920
Power	Engine rated output			Kw (r/min)	198/2500
	Engine rated torque			N.m (r/min)	970/1200-1700
Travel	Travel speed		Max. travel speed	Km/h	35
	Turing radius		Min. turning radius	mm	6000
			Turning radius at swing table tail	mm	4860
	Min. ground clearance			mm	400
	Approach angle			°	20
	Departure angle			°	19
	Braking distance (travel speed 30km/h)			m	≤8.5
	Max. grade ability			%	50
	Max. noise out of crane when accelerating			dB (A)	88

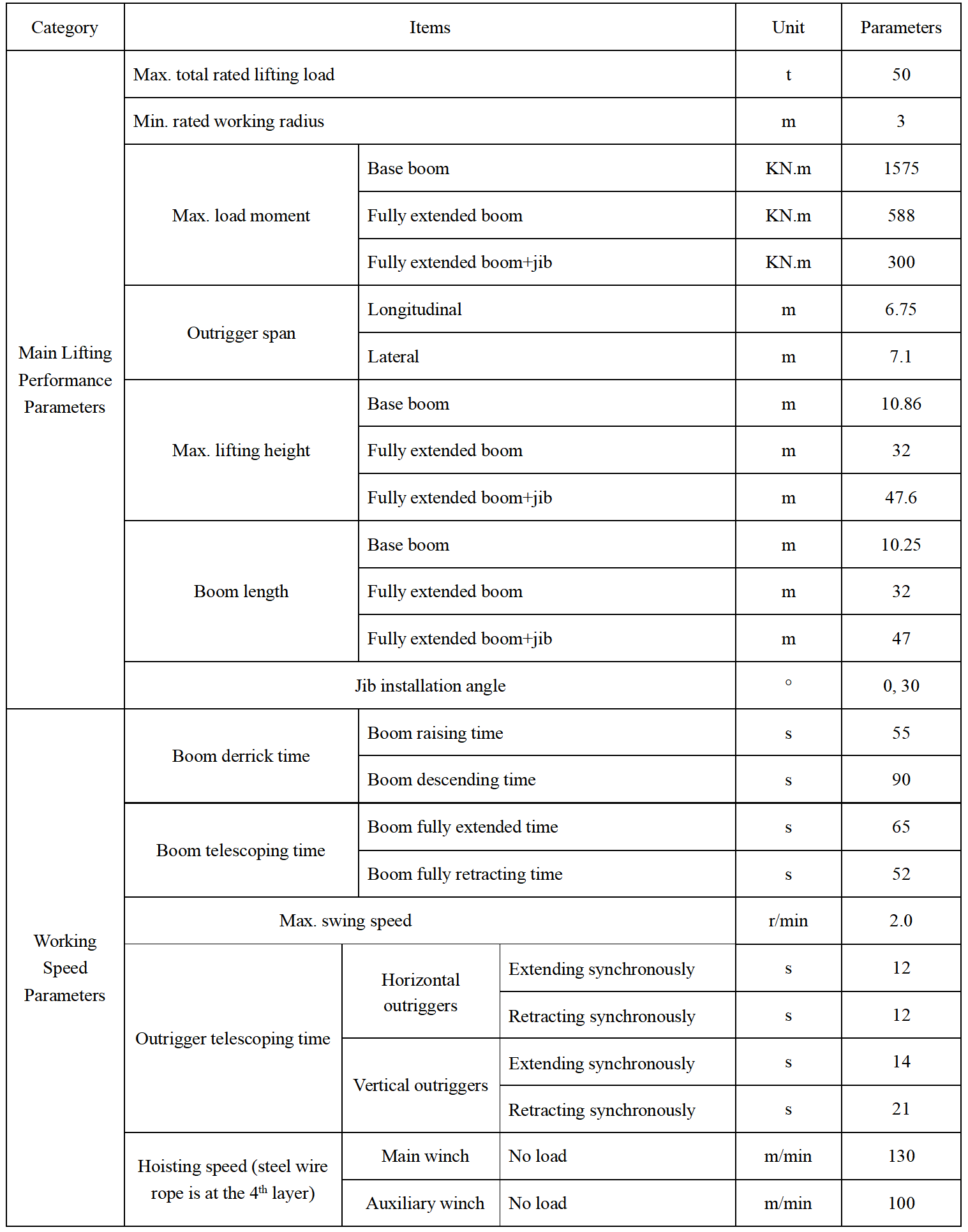

RT50 Main Technical Parameters Table in Lifting State

Category	Items				Unit	Parameters
Main Lifting Performance Parameters	Max. total rated lifting load				t	50
	Min. rated working radius				m	3
	Max. load moment		Base boom		KN.m	1575
			Fully extended boom		KN.m	588
			Fully extended boom+jib		KN.m	300
	Outrigger span		Longitudinal		m	6.75
			Lateral		m	7.1
	Max. lifting height		Base boom		m	10.86
			Fully extended boom		m	32
			Fully extended boom+jib		m	47.6
	Boom length		Base boom		m	10.25
			Fully extended boom		m	32
			Fully extended boom+jib		m	47
	Jib installation angle				°	0, 30
Working Speed Parameters	Boom derrick time		Boom raising time		s	55
			Boom descending time		s	90
	Boom telescoping time		Boom fully extended time		s	65
			Boom fully retracting time		s	52
	Max. swing speed				r/min	2.0
	Outrigger telescoping time	Horizontal outriggers		Extending synchronously	s	12
				Retracting synchronously	s	12
		Vertical outriggers		Extending synchronously	s	14
				Retracting synchronously	s	21
	Hoisting speed (steel wire rope is at the 4^th layer)	Main winch		No load	m/min	130
		Auxiliary winch		No load	m/min	100

RT50 Total rated lifting load for boom

Radius (m)	Full-extend outriggers, 360°swing
	Base boom length 10.25m	Boom length 15.688m	Boom length 21.125m	Boom length 26.563m	Full-extend boom length 32m
	Lifting load (kg)	Lifting load (kg)	Lifting load (kg)	Lifting load (kg)	Lifting load (kg)
3	50000
3.5	45000
4	40000
4.5	33500	21000
5	30000	21000
5.5	25000	20000
6	20000	19000	14000
6.5	17000	17500	13200
7	14800	15000	12500	9800
8	12600	12000	11300	8700
9		9800	10300	7900	6400
10		8200	8400	7200	5500
12		7000	7000	6000	4800
14			5500	5000	4200
16			4500	4300	3500
18				3600	3100
20				3100	2500
22				2700	1900
24					1800
26					1600
28					1300
30					1000
Rate	10	6	4	3	2
Hook standard	For 50t
Hook weight	360Kg

RT50 Total rated lifting load for boom

Radius (m)	Without outriggers, 360° swing
	Base boom length10.25m	Boom length 14.6m	Boom length 18.95m	Boom length 23.3m
	Lifting load (kg)	Lifting load (kg)	Lifting load (kg)	Lifting load (kg)
3	8000	7040
3.5	6240	6000	5760
4	5280	5120	5200
4.5	4480	4400	4480	4560
5	3880	3760	3840	3920
5.5	3360	3360	3440	3440
6	2960	2960	3040	3040
6.5	2560	2640	2720	2720
7	2240	2320	2400	2480
8		1840	1920	2000
9		1520	1600	1600
10			1280	1360
11			1040	1120
12				880
Rate	3	2	2	2
Hook standard	For 50t
Hook weight	360Kg

RT50 Total rated lifting load for boom

Radius (m)	Without outrigger, travel with load, traveling speed with load:≤2km/h
	Base boom length 10.25m	Boom length 14.6m	Boom length 18.95m	Boom length 23.3m
	Lifting load (kg)	Lifting load (kg)	Lifting load (kg)
3	10000	8800
3.5	7800	7500	7200
4	6600	6400	6500
4.5	5600	5500	5600	5700
5	4850	4700	4800	4900
5.5	4200	4200	4300	4300
6	3700	3700	3800	3800
6.5	3200	3300	3400	3400
7	2800	2900	3000	3100
8		2300	2400	2500
9		1900	2000	2000
10			1600	1700
11			1300	1400
12				1100
Rate	3	2	2	2
Hook standard	For 50t
Hook weight	360Kg

RT50 Total rated lifting load for jib

Boom angle (°)	360°swing
	Jib installation angle (°)		Jib installation angle (°)
	Jib 8.4m		Jib length 15m
	0°	30°	0°	30°
	Lifting load (kg)	Lifting load (kg)	Lifting load (kg)	Lifting load (kg)
78	3200	2000	2300	1000
75	3200	2000	2200	980
72	3000	1600	2000	900
70	2500	1500	1800	850
65	2000	1100	1600	760
60	1500	1000	1200	570
55	900	600	750	350
50	350		240
Hook weight	68Kg

10Ton to 160Ton Rough Terrain Crane Specification

Item	unit	RT10	RT20	RT30	RT35	RT50	RT55	RT60	RT75	RT80	RT100	RT130	RT160
Max.toal rated lifting load	t	10	20	30	35	50	55	60	75	80	35	130	160
Min.working radius	m	3	3	3	3	3	3	3	3	3	3	3	3
Engine power	Kw	89	140	169	169	198	198	198	198	228	228	228	228
Max.travel speed	Km/h	50	40	40	40	40	40	35	40	38	38	35	35
Base boom length	m	7.9-24.6	9.9-31.2	9.9-31.2	10-31.5	10.25-32	9.6-35	11.6-43.6	10.23-37	12-46	12.5-46.5	13.2-50	13.5-50.5
Jib length	m			7.3	15	8.4-15	9.0-15	10.5-18.5	9.35-16.05	10.5-18.5	10.5-18.5	12.5-22.5	12.5-22.5
Max.lifting height	m	24.2	30.7	36	46	47.6	51	62.69	52.6	63.5	65	72	73
Max.working radius	m	20	28	29	30.05	30	31.49	37	32.8	38	38.4	44	44.5

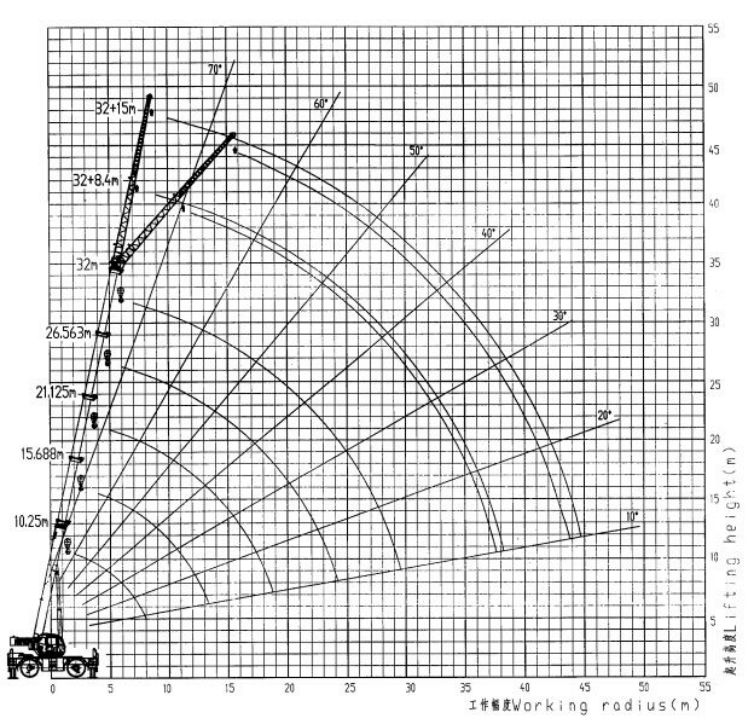

Lifting height curves of RT50

RT50 Crane: An efficient and reliable lifting solution

1. High load capacity: easy to handle heavy lifting tasks
Xugong RT50 cranes stand out for their superior lifting capabilities, which can easily handle a variety of complex lifting tasks. With a rated lifting capacity of 50 tons, the RT50 is easily capable of lifting large building components or heavy equipment to meet a variety of lifting needs. This high carrying capacity makes the RT50 perform well in construction sites, mines, ports and other scenarios, greatly improving construction efficiency and safety.

2. Strong flexibility: efficient operation in complex terrain
The RT50 crane uses a full-time all-wheel drive all-wheel steering system, and the configuration of four-wheel drive and four-wheel steering makes it extremely maneuverable and flexible. Whether on a small construction site or in difficult terrain conditions, the RT50 is flexible and can easily complete the task. Its all-wheel steering system supports a variety of steering modes, including four-wheel steering, front-wheel steering, rear-wheel steering and crab line function, which allows the crane to operate more flexibly in narrow Spaces and complex terrain, greatly improving work efficiency.

3. Easy to control: humanized design to enhance the operating experience
Xugong RT50 crane control console with user-friendly design, equipped with adjustable seats, joysticks and intuitive buttons, easy to operate and intuitive. This design not only improves operator productivity, but also effectively reduces the risk of incorrect operation

4. Safe and reliable: all-round security
The RT50 crane is equipped with advanced systems and is equipped with multiple safety protections such as overload protection, height limiters and overturning protection. These devices can effectively ensure the safe and reliable operation of the crane, providing a full range of safety guarantees for operators and equipment. The advanced hydraulic system ensures a smooth and accurate lifting process, while the electrical system provides efficient power transmission and control. These advanced technologies enable the RT50 to maintain optimum performance in all operating conditions, ensuring safety and reliability.

5. Easy maintenance: modular design and perfect after-sales
The RT50 crane adopts modular design, which makes the connection between each component module compact and easy to disassemble and assemble. This design makes maintenance and repair easier and significantly reduces downtime.
The RT50 crane, with its high load capacity, strong flexibility, easy handling, reliable safety and easy maintenance, is the ideal choice for a variety of lifting operations. It not only improves the construction efficiency, but also provides a solid and reliable guarantee for engineering construction. Whether it is a large construction project, mining or port logistics, the RT50 can meet the diverse needs of users with its excellent performance and reliability, and become a useful assistant in modern engineering operations.
