Manufacture Helical Anchor Screw Pile Foundation Steel Shafts for Solar Power System

2 week ago

1 0 

10 year

Product details

Round Helical Pile

Yokelink helical pile, also known as a screw pile, is a deep - foundation solution for supporting structures. It consists of a steel shaft with helical bearing blades welded to it. It's installed by rotating it into the ground, which compacts the surrounding soil, providing high bearing capacity. It has advantages like fast installation, suitability for various soil conditions, little soil disturbance, and easy removal and reuse. It's widely used in construction, solar energy projects, and more

Features:

Time-proven, technically sound system

Limited excavation; minimal under-digging of building

Light equipment can be tailored to specific job needs

Shafts/columns for assorted load requirements

Enhanced foundation strength for new homes or buildings

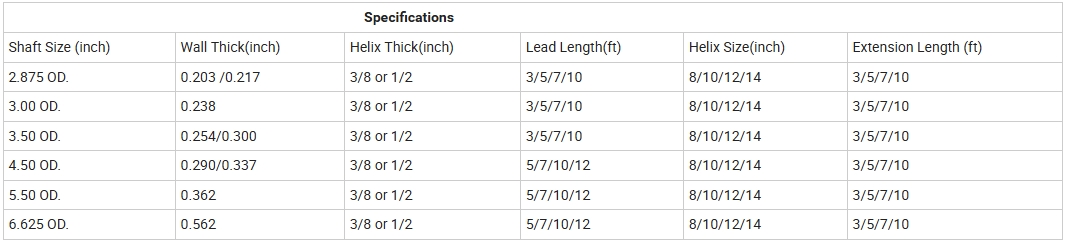

Round Helical Pile Specification

Application For Helical Pile

1.Construction and Building Foundations

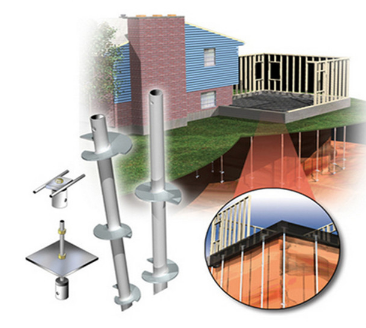

Residential Buildings: For new homes, especially in areas with challenging soil conditions such as soft clay or loose sand, helical piles can provide a stable foundation. They can support the weight of the structure and resist settlement.

2. Bridge and Infrastructure Projects

Bridge Abutments: Helical piles can be used to support bridge abutments, providing the necessary lateral and vertical support. They are suitable for both small and large bridges.

3. Solar Energy Installations

Solar Farms: With the increasing demand for solar energy, helical piles are used to support solar panel arrays. They offer a quick and efficient way to install the support structures, and their adaptability to different soil types makes them ideal for various locations.

Buy Helical Pile From Yokelink

Yokelink are able to produce various types of lead sections for the pile or anchors shaft and varied size of helical steel plates, which means the steel grade, length, thickness, diameter of the pile shaft and number of helices, their diameter, pitch angle, steel plate thickness, position on the pile shaft can be customized according to customers' drawing or sample.
