bent tempered glass
2 week ago
| Glass Thickness |
4+4mm, 5+5mm, 6+6mm, 8+8mm, 10+10mm, 12+12mm, 15+15mm, etc. |
| Available Size |
Curved Glass furnace 1: For 5mm and 6mm glass, mini radius 450mm, thickness over 8mm, radius should be over 800mm, max arc length 1650mm, max height 2440mm So we almost could produce your any design curved glass |
| Color | Clear, ultra clear, euro bronze, golden bronze, dark blue, ford blue, F-green, dark green, euro grey, dark grey, black, etc. |

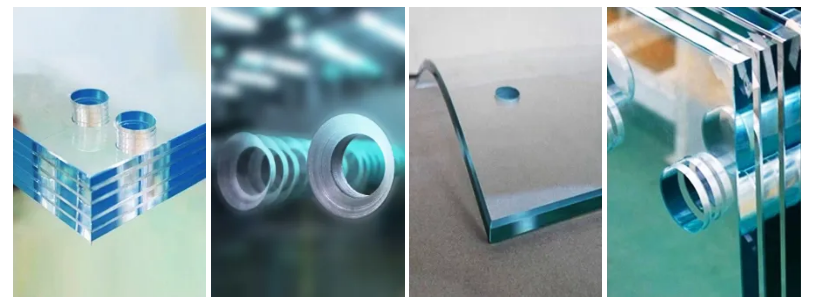

| Processing | Custom cut to size, drill holes, cut notches, sandblasting, digital printing, silkscreen printing, etching, etc. other customized design could be produced |
| Type | Clear curved Laminated Glass, color curved laminated glass, solar reflective curved laminated glass, sandblasted laminated curved glass, silkscreen laminated curved glass, heat soaked curved Tempered Laminated Glass, heat strengthened double curved glass, digital printing curved tempered laminanted glass, etc. |
| Quality |
Meet with CE EN12600 & EN14449, ISO 9001 and SGCC ANSI Z97.1 certificate, to match the below quality standard: Zero delamination |

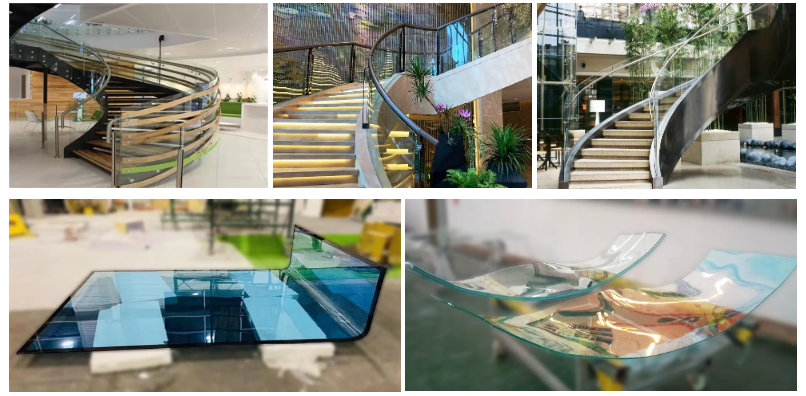

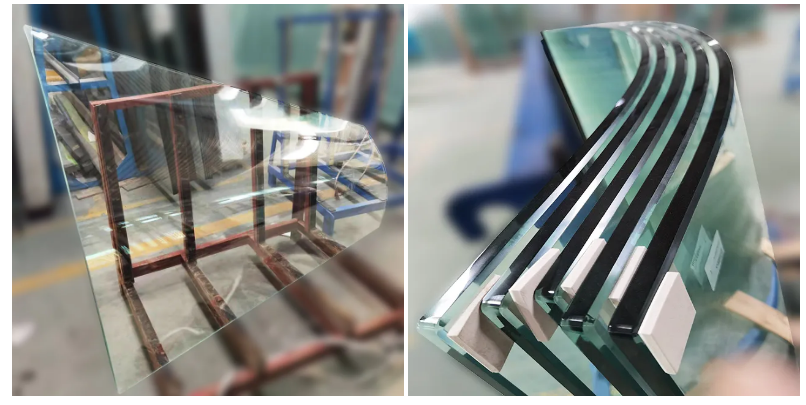

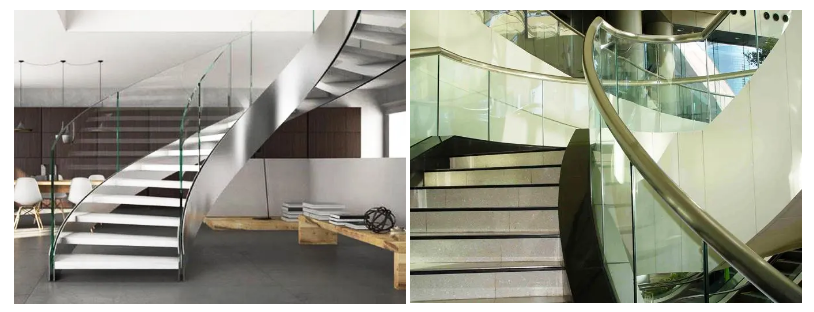

Curved Tempered Glass is curved to shape by fast cooling down. It's available for different shape, but also can meet the stress requirement. It has double curved tempered and single curved Tempered Glass.
The following is the available production size range, pls check out!
Tempered Line 1： 1. Horizontal shaft tempered line Maximum size：Arclength 2500*Height 2500mm Minimum size：Arclength 400 *Height 300mm Minimum radius：900mm Thickness：4-25mm 2. Vertical shaft tempered line Maximum size：Arclength2440*Height6200mm Minimum size：Arclength500*Height300mm Minimum radius：1000mm Unlimited maximum radius. Thickness：6-25mm
Tempered Line 2 (Multi-curve tempering): Maximum size：Arclength2440mm*Height5000mm Minimum size:Arclength400mm*Height400mm Thickness: 6-15mm Any shape is available. Maximum arc height：360mm

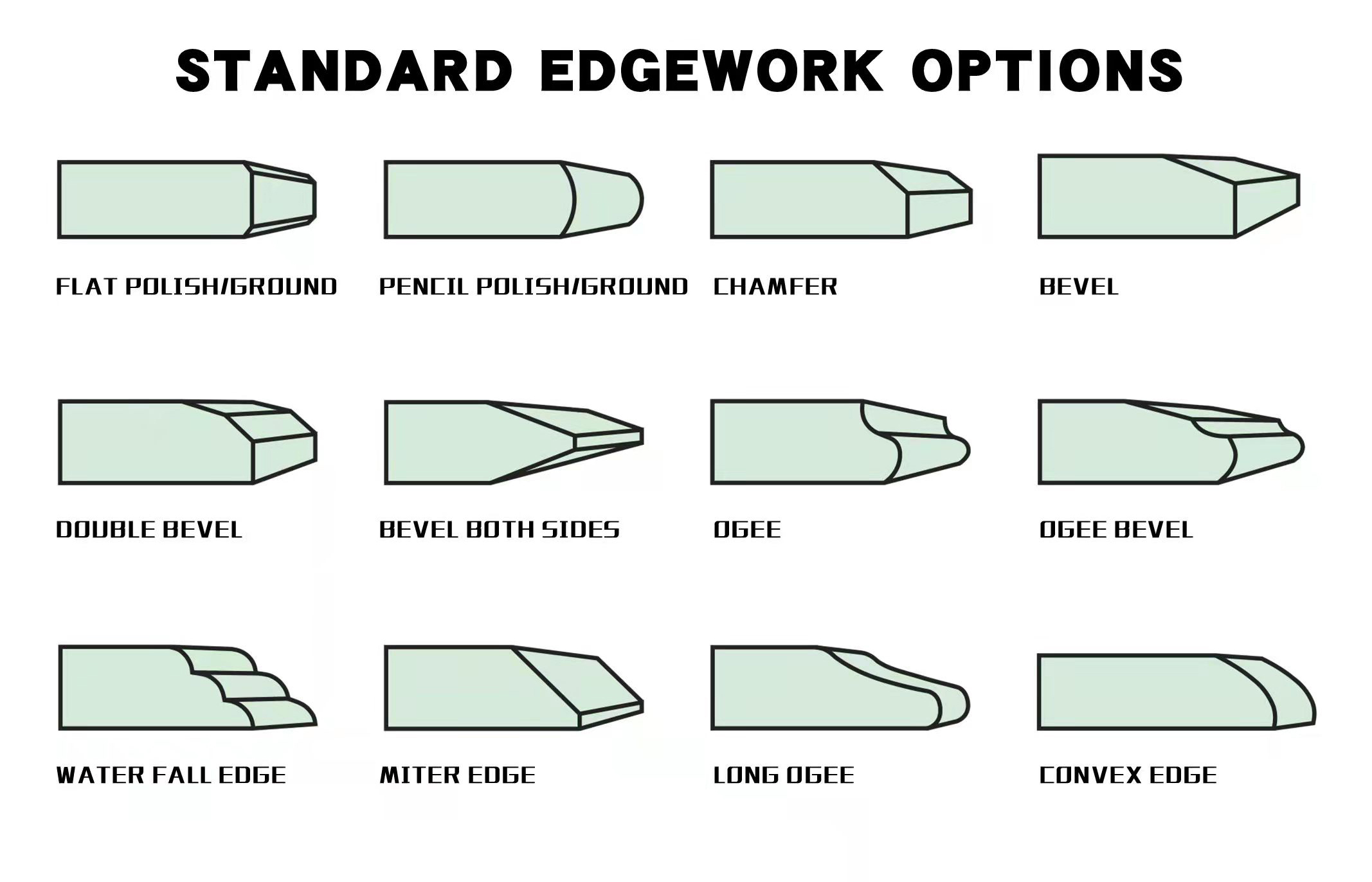

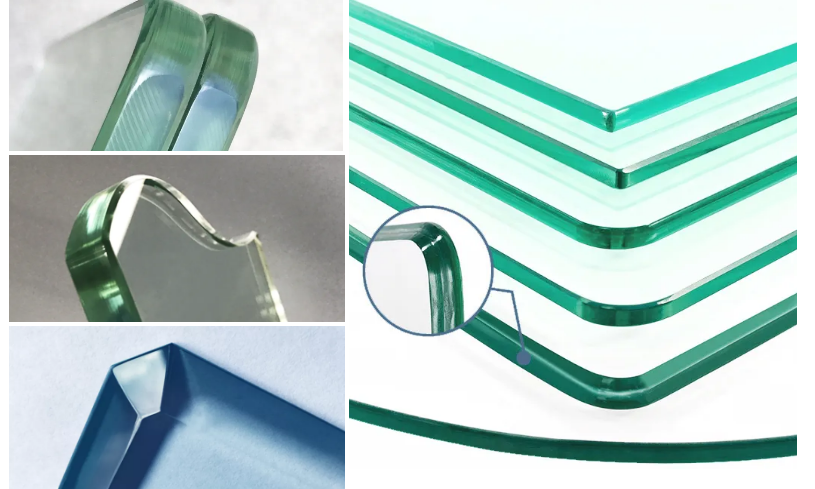

Edges We Can Do
