In-line LED lamp beads
4 year ago

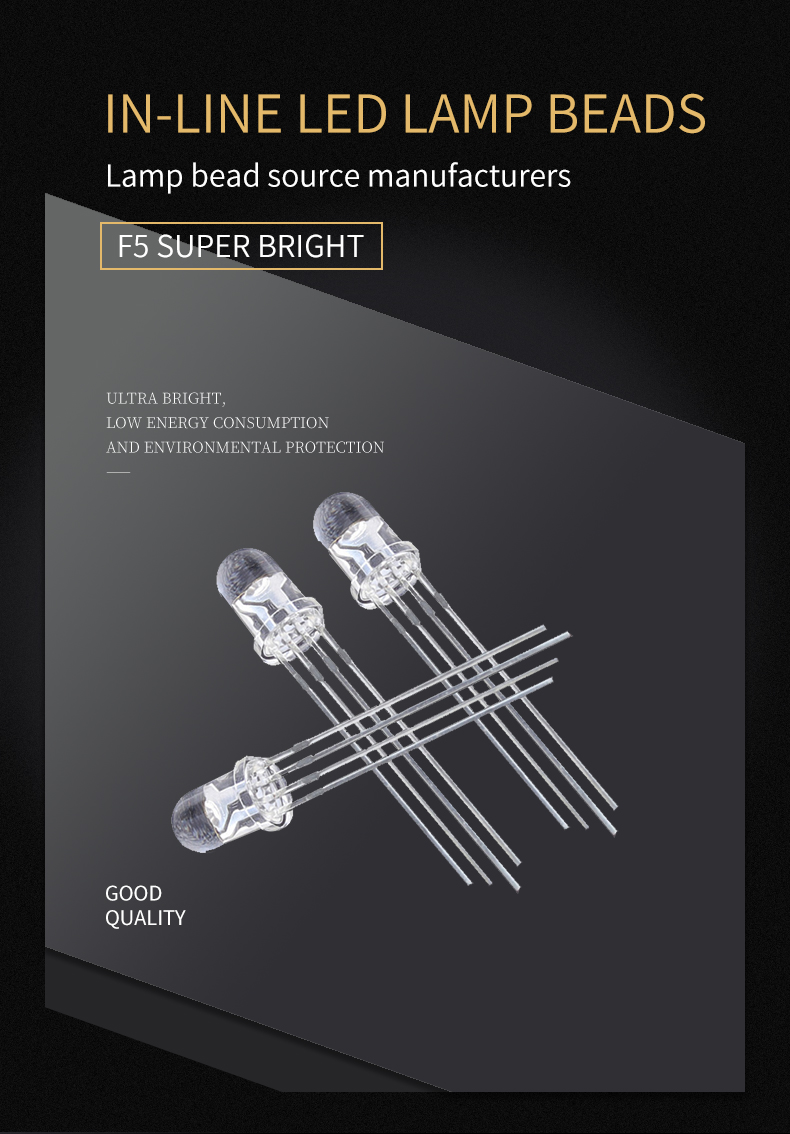

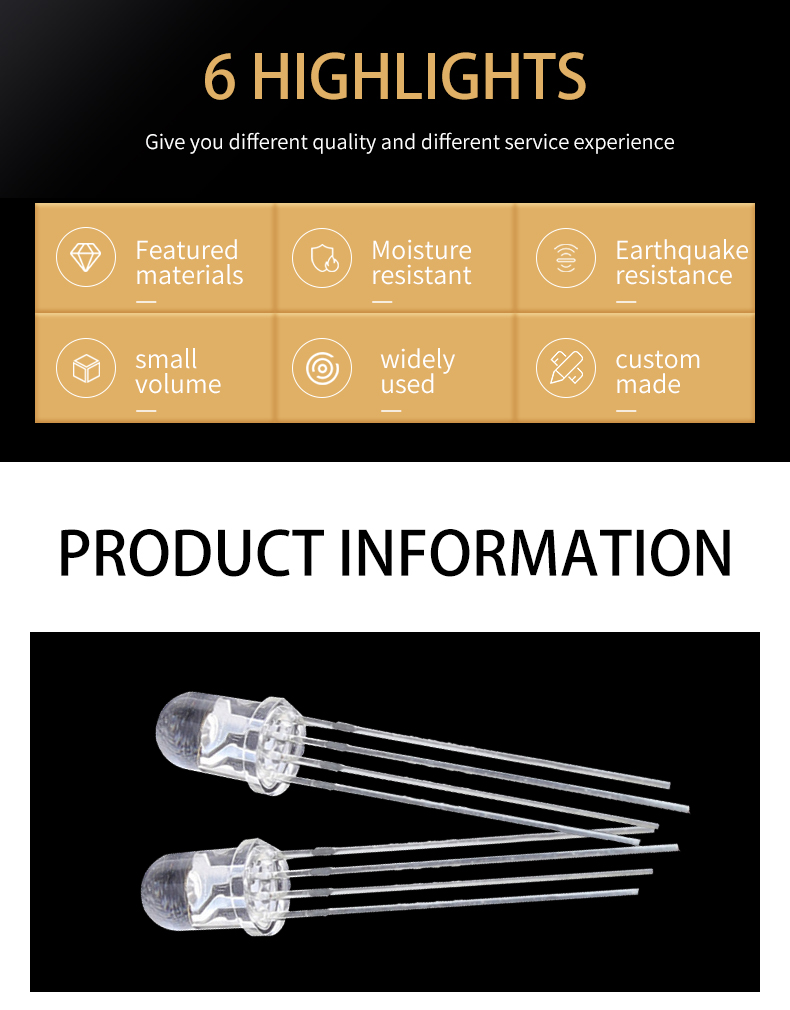

F5 super bright colorful in-line LED lamp beads
1. The meaning of limit parameters
(1) Allowable power consumption Pm: The maximum value of the product of the forward DC voltage and the current flowing through it. If this value is exceeded, the LED will heat up and be damaged LED light string.
(2) Maximum forward direct current IFm: the maximum allowable forward direct current. Exceeding this value can damage the diode In-line lamp beads.
(3) Maximum reverse voltage VRm: the maximum allowable reverse voltage. Above this value, the LED may be damaged by breakdown In-line LED lights.
(4) Working environment topm: the ambient temperature range where the light-emitting diode can work normally. Below or above this temperature range, the light-emitting diode will not work normally and the efficiency will be greatly reduced.
Origin: Guangdong
Export or not: Yes
Order No.: 12458794
Brand: XiGe
Article No.: 5897619
Model: 1206
Size：1206
Power: 0.5 (W)
Color rendering index: 80
Luminous flux: 10 (LM)
Forward voltage: 12 (V)
Reverse voltage: 12 (V)
ESD：12（V）
Rated current: 10 (a)
Chip brand: San'an
Chip size: 5 (MIL)
Phosphor brand: customizable

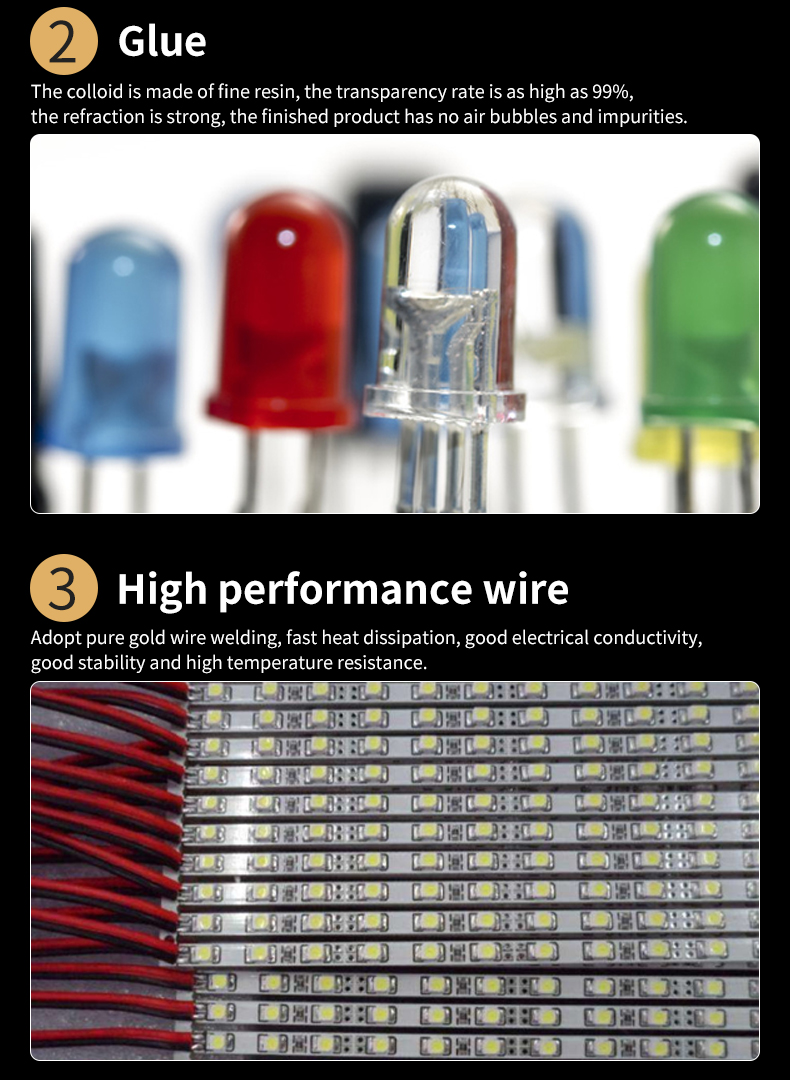

Glue brand: customizable
Wire material: gold wire

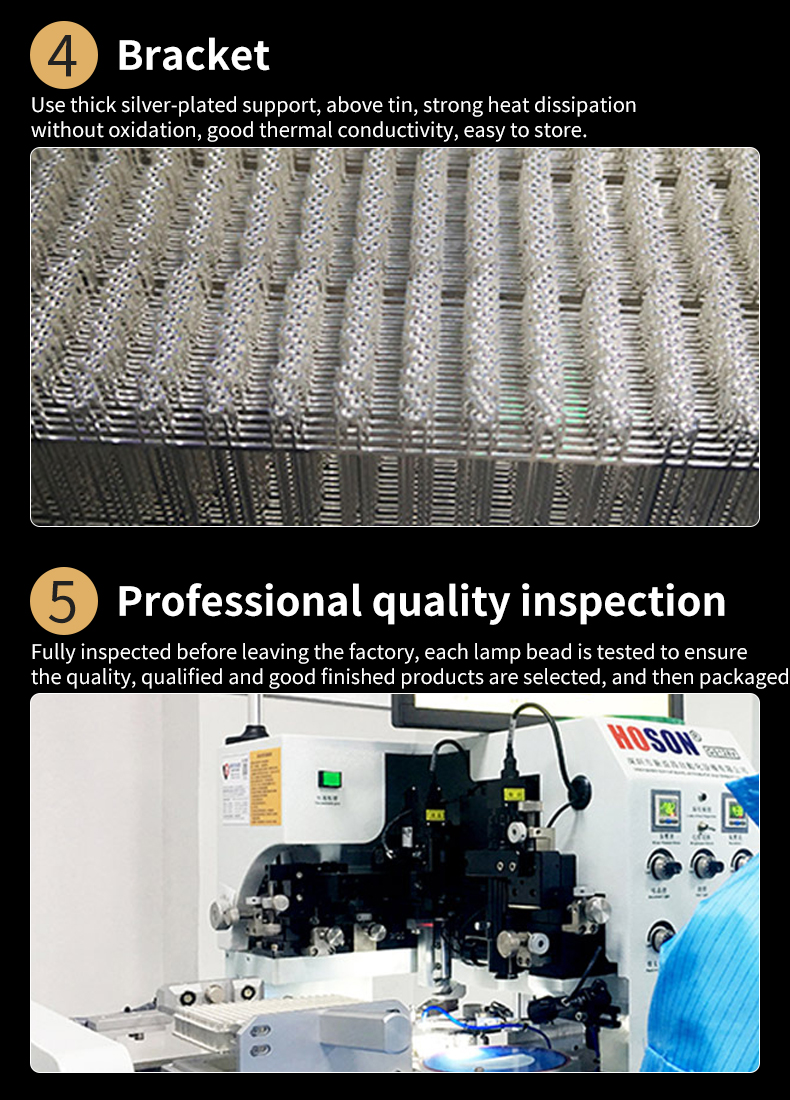

Bracket material: Copper
Luminous angle: 15 (°)
Luminous efficiency: 100 (LM / W)
Thermal resistance: ≤ 50 (° / W)
Maximum allowable junction temperature: 100 (°)
Voltage temperature coefficient: 5 (MV / ℃)
1000 hours conventional aging: 85%
6000 hours conventional aging: 20%
Lm-80 test passed: Yes

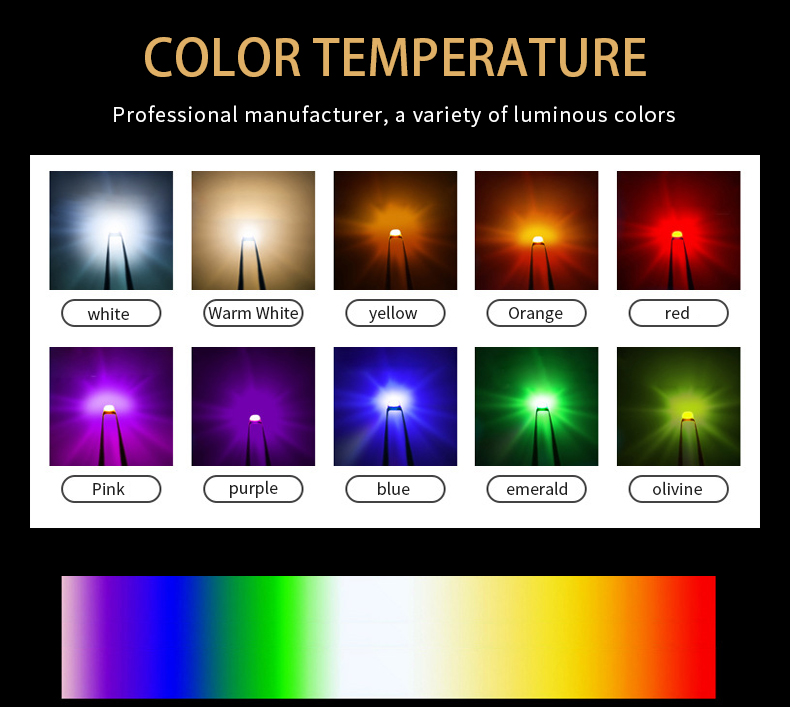

Color temperature range: 10 (k)
Cross border export source: Yes
