Sulphur Grinding Mill.mp4

LNIST Inert Gas Protected ACM Mill

We use inert gas (nitrogen) to do atmosphere protection, and strictly control the oxygen content within the system to the safe range, so as not to specify the conditions of the explosion.
The whole system is closed, nitrogen recycling, small replenishment, low production cost。
Passive explosion-proof system, in case of flash explosion, will not cause damage to the
manpower, as small as possible to damage the equipment。

Our crushing system for sulfur powder characteristics and the rest angle test, the use of numerical simulation software to do a special flow field design to reduce dead ends and eddy currents, reduce adhesion and plugging. Static electricity is also caused by sulfur adhesion plugging the main reason, our sulfur grinder to do a lot of electrostatic treatment, the maximization of electrostatic export to ensure that the equipment running normally. Contact with the material parts are 304 stainless steel mirror polishing treatment, smooth inner wall, not only not easy to adhere to materials, anti-corrosion performance, the local did the adhesive coating.

We use classifying impact mill to mill, grinder built-in turbine airflow classifier, crushing particle size evenly adjustable, the most fine can reach 1250 mesh. Can produce all kinds of fineness requirements of sulfur powder.

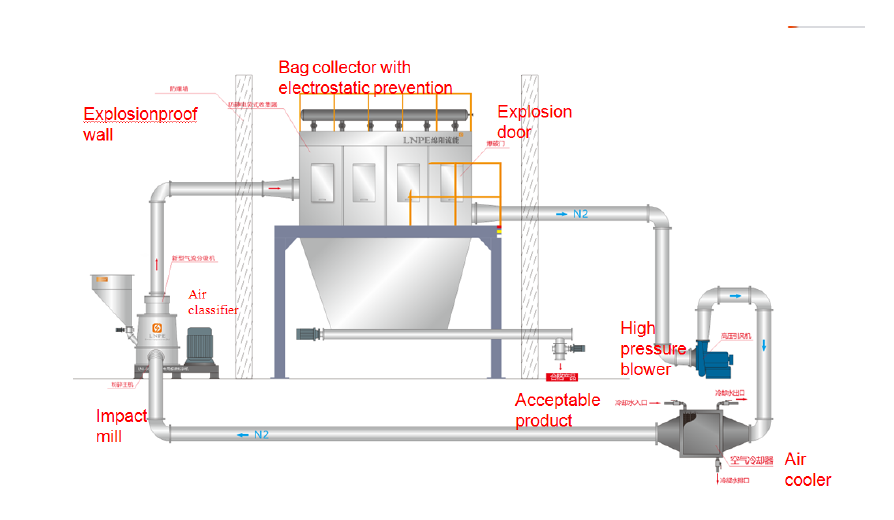

LNIST Flow Sheet:

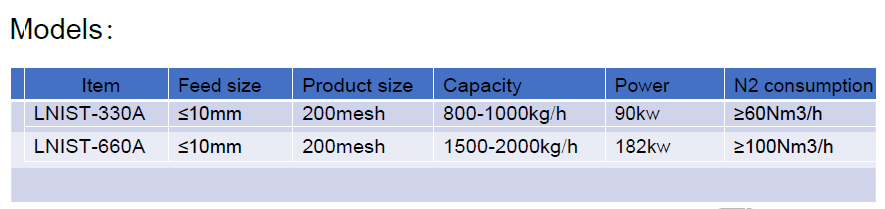

Technical Data
