Product details

TH-2004AB1   Epoxy dispensing machine

The TH-2004AB machine Adapt to a variety of two-component AB glue 1:1-1:3.1:3. Widely used in the relay, energy saving lamps, LED, capacitor, etc. dispensing, potting operations.

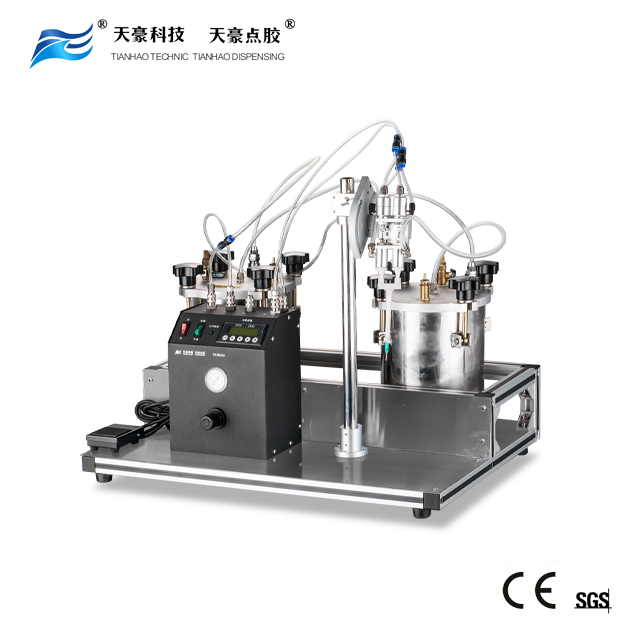

Product pictures:   label doming machine

 IMG_4118




Sales Points/Focus

1. TH-2004AB1 function is automatic mix/meter and quantity dispensing,

2. Have a big capability cartridge, no need to transfer material, avoids waste.Feed tank using a special material handling non-stick glue

3. Adopted with the TH-700J pneumatic double-liquid valve can interrupt the flow quickly without dripping.

3. Static mixer is used, can mix liquid evenly. Mix evenly and quickly. Easy to Maintain.

4. The auto-cycling function can reduce the labor intensity and increase the production.

5. Integrated microcomputer, imported parts, stable performance, the dispensing time can be set through the digital dial.

6. The pedal /ring/inductive switches can be chosen.

7. Can be complete with an accessory from the dispensing kit.


Main specification:

Standards:                        CE approved

Control:                        E-pneumatic Liquid ratio: Automatic

Mixing method:            static mixer

Feed system:               1gallon tank (Other capacity can be chosen)

Cleaning way:              automatic cleaning function can select

Operating Model:         Manual, Timer/cycles

Start way:                     Foot Pedal, Finger Switch

Air Output:                    0.1bar-7bar

Valve:                           TH-700J

Dispensing time:           0.001S-9.999S

Cycles (interval) time:   0.1S-9.9S

Repeatability:               +/-0.01%

Leak-proof function:    valve with Vacuum device

    Air Input:                       >5 bar Dry air without lubrication

    Input voltage:               110V/220V 50Hz(Internal conversion)

   Internal Voltage:           24 VDC

   Power:                           < 300W




Complete with an accessory dispensing kit

NO

Name

QTY

1

Frame

1pcs

2

Controller TH-2004AB

1pcs

3

Valve 700J

1pcs

4

Tank TH-100Y

2pcs

5

Air tube with tank 6X4mm

2pcs

6

Air tube with controller 8X5mm

1pcs

7

Air tube with valve 6X4mm

2pcs

8

Glue tube 8X6mm

1pcs

9

Tee

1pcs

10

STATIC MIXER

1pcs

11

Dispensing tip

10pcs

12

220V power cable

1pcs

13

Foot  pedal

1pcs



Package:

Items per Carton:

1 Units / Carton

Package Measurements:

85X75X78 CM

Gross Weight:

56 KG



Delivery in 3 workdays after received your payment


Shipping ways by TNT.ups,dhl.fedex


Loading port: Ningbo or shanghai


Our Service: Your satisfactory, our pursuit!


1, Your inquiry will be replied in 24 hours.


2, Offer free spare parts and service within one year of warranty,


3, Technology Support Provide Demo operation video for training; If you have time, welcome to our company, Will arrange engineers to show you the operation.


4, Professional after-sales service team.


5, Give great discount to AGENCY to ensure agents profit.


Our product can help you to achieve the goal:


  • Increase production efficiency
  • Promotion processing precision control
  • Improve product quality
  • lower production costs, reduce rejected product
  • Eliminate material waste



Quality guarantee

We provide 1years warranty of product and shipment with one set fitting to you

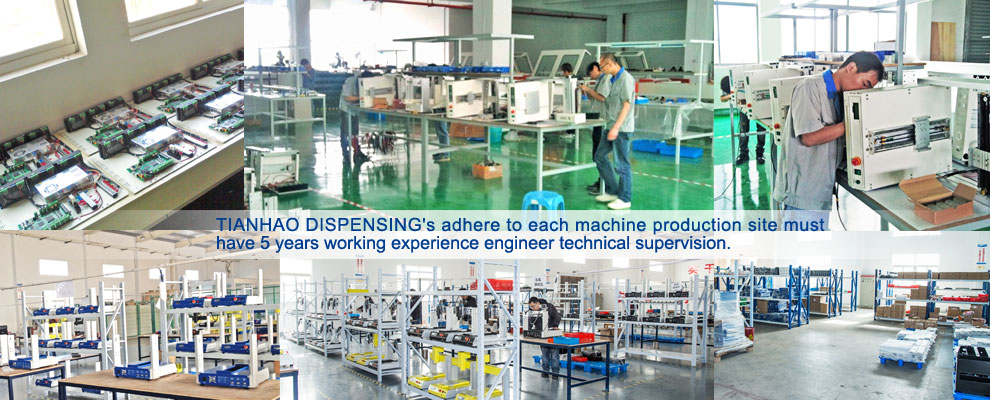

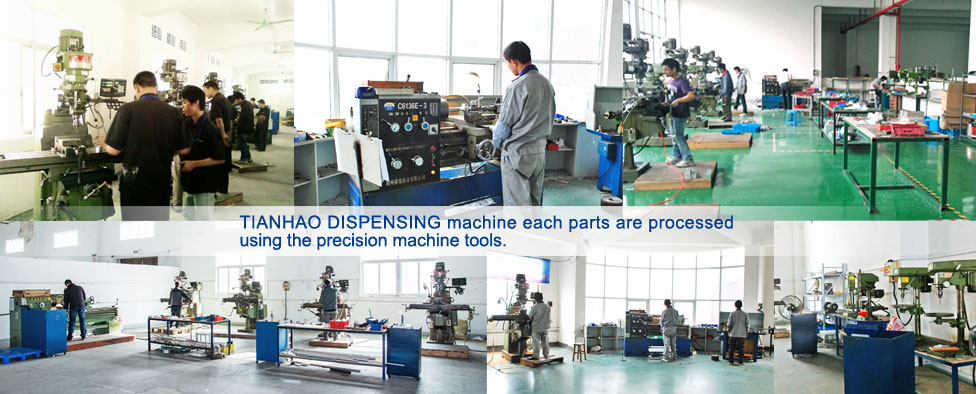

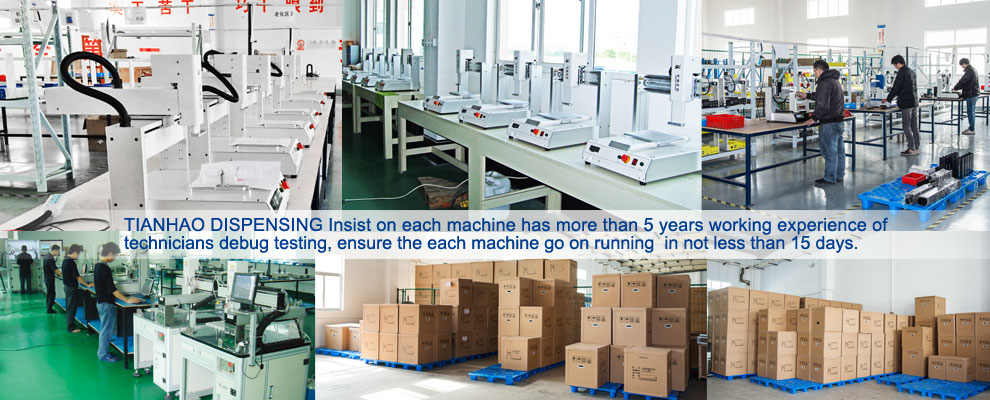

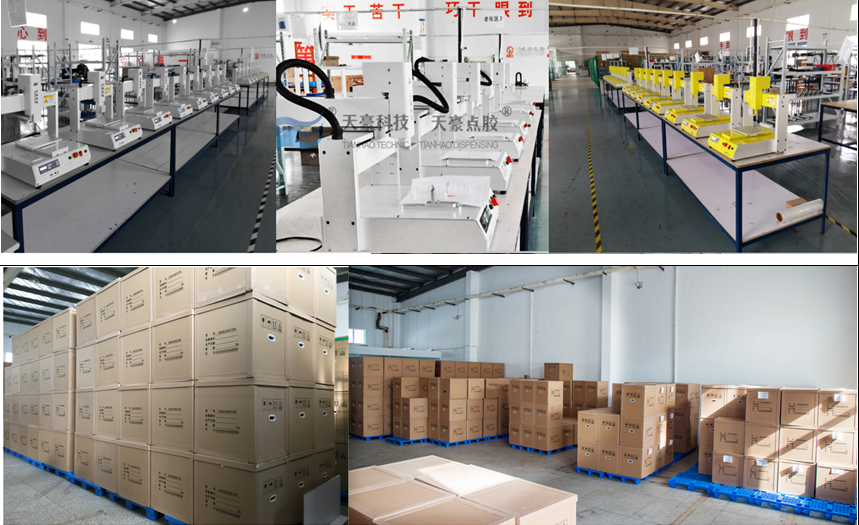

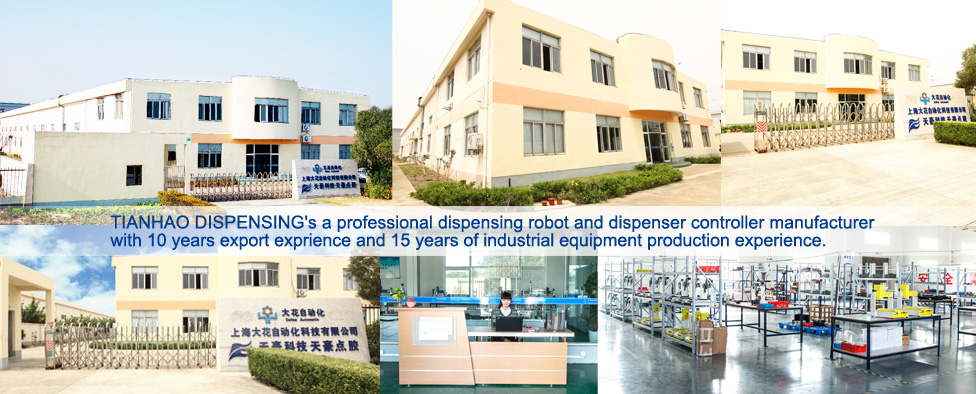

Factory Picture


Our advantages:


1. Original Manufacturer/factory

2. High reputation around the China

3. 10 years' experience of glue dispensing machine

4. Best quality and good work

5. High grade components

6. Special dispensing software, both Chinese and English interface

7. Professional service and technology support

8. All models with CE approved.

9. OEM services accepted


Our product:

  • 4 Axis dispensing robot.XYZ dispensing robots- for full automated and high precision, high efficiency production processes control
  • Dispenser. Mix/meter dispensing system - for manual assembly processes
  • Threadlocking adhesives coating machine-suitable for thread coating processes
  • Rotary table Dispensing machine- for dispensing circular beads on circular, semi-circular, oval, product
  • Valve, tank-for automated production lines
  • Highest quality dispensing tips, syringe barrels
  • Other disposable components


Customizable:


1.Input /Output Singal

2.xyz work range

3.add pick and place function
