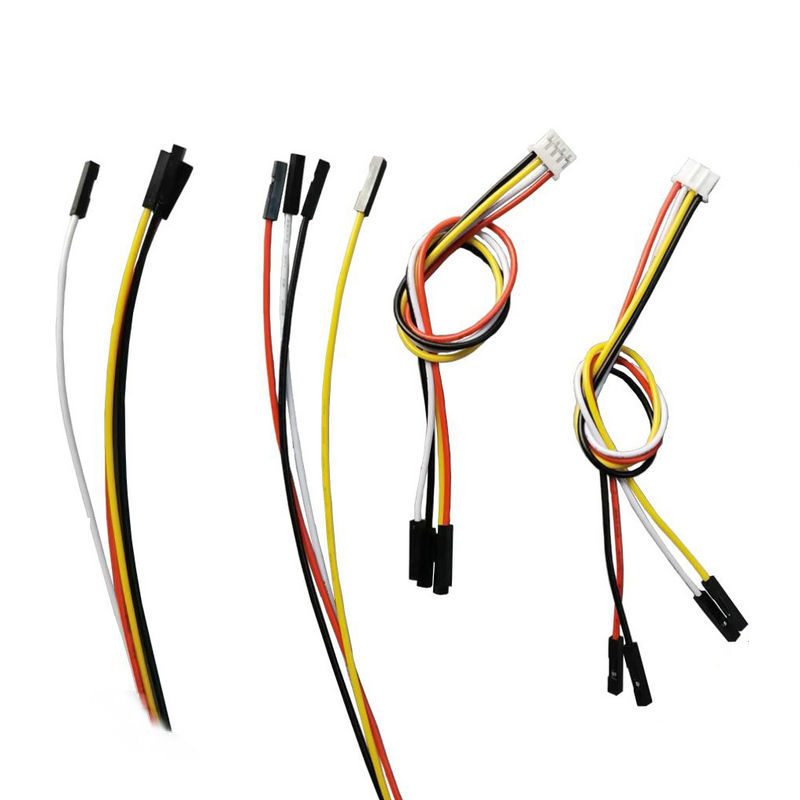

2.54 pitch fast wiring terminal wire

Terminal cable, also known as Flexible Flat Cable (FFC) can arbitrarily select the number of wires and spacing, making it easier to connect the line, greatly reducing the volume of electronic products, reduce production costs, improve production efficiency, the most suitable for moving parts and the motherboard, PCB board to PCB board, miniaturized electrical equipment for data transmission cables used. Common specifications are 0.5mm, 0.8mm, 1.0mm, 1.25mm, 1.27mm, 1.5mm, 2.0mm, 2.54mm and other spacing flexible cable wire.

Commonly used models are as follows.
Type A: the two ends are connected and the reinforcement plate is pasted on the insulating tape.
Type B: the reinforcement plates are crossed and directly pasted on the insulating tape.
Type C: the two ends of the reinforcement plate directly on the conductor.
Type D: the two ends of the reinforcement board are crossed and directly attached to the conductor.
Type E: one end of the reinforcement plate is pasted on the insulating tape and the other end is directly soldered.
Type F: the two ends of the reinforcement board are directly affixed to the insulation tape, with the inner half peeled off.
Type G: both ends are directly soldered.

Connectors are an indispensable part of electronic equipment. Our main products are: Round connector, square pin row female connector, board to board connector, board to board connector, board to wire connector, New energy connector, round hole pin row connector, female connector, Cabinet Light connector, four policy pin row connector, female connector, Jane Ox connector, Ox horn connector, wire to board connector, top connector, flat cable, DuPont flat cable, wiring harness, IDC socket
