Stainless Steel Knurling Disc Spring, Serrated Safety Washers

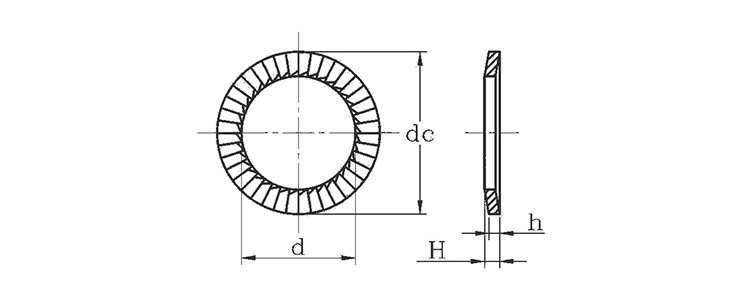

| Size | d | dc | h | H | |
| max | min | ||||
| φ1.6 | 1.7 | 3.2 | 0.5 | 0.75 | 0.55 |
| φ2 | 2.2 | 4 | 0.5 | 0.75 | 0.55 |
| φ2.5 | 2.7 | 4.8 | 0.5 | 0.95 | 0.55 |
| φ3 | 3.2 | 5.5 | 0.5 | 0.95 | 0.55 |
| φ4 | 4.3 | 7 | 0.7 | 1.2 | 0.75 |
| φ5 | 5.3 | 9 | 0.7 | 1.2 | 0.75 |
| φ6 | 6.4 | 10 | 0.7 | 1.2 | 0.75 |
| φ8 | 8.4 | 13 | 1 | 1.6 | 1.2 |
| φ10 | 10.5 | 16 | 1 | 1.6 | 1.1 |
| φ12 | 13 | 18 | 1.3 | 1.85 | 1.3 |
| φ14 | 15 | 22 | 1.5 | 2.3 | 1.65 |
| φ16 | 17 | 24 | 1.5 | 2.3 | 1.75 |
| φ18 | 19 | 27 | 1.8 | 2.6 | 2.05 |
| φ20 | 21 | 30 | 1.8 | 2.8 | 2.15 |
| φ22 | 23 | 33 | 1.8 | 3 | 2.3 |
| φ24 | 25.6 | 36 | 2 | 3.1 | 2.35 |
| φ27 | 28.6 | 39 | 2.5 | 3.6 | 2.85 |
| φ30 | 31.6 | 45 | 2.5 | 4.1 | 3.1 |
| φ36 | 38 | 54 | 3 | 4.7 | 3.7 |
