Laser cutting machine CTK-C7-LN

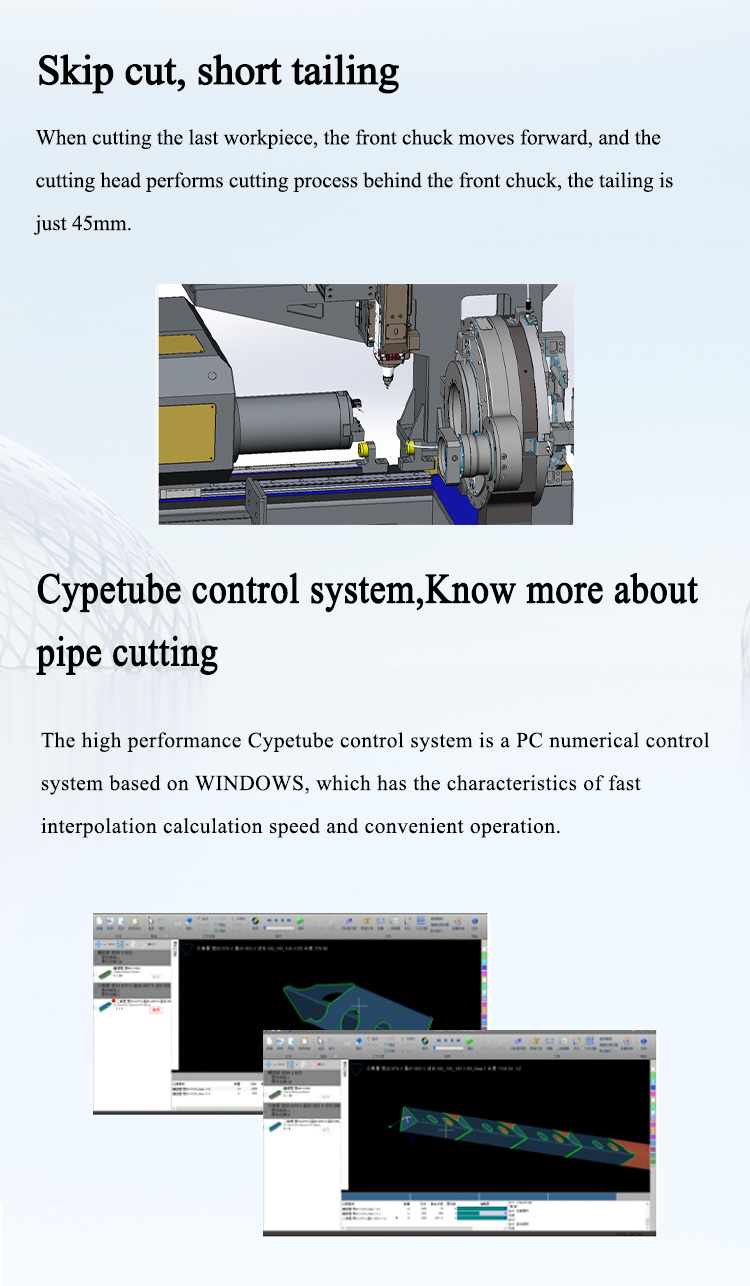

1. Material saving: 45mm ultra-short tail material, breaking industry records and increasing material utilization
2. This laser pipe cutting machine has high range compatibility: Ф12~220mm diameter, compatible with round, square, elliptical, special-shaped, etc., with obvious advantages for thin-walled pipes.
3. Laser cutter has the high-precision chuck: fast two-speed adjustment of the jaws, long-term accuracy.

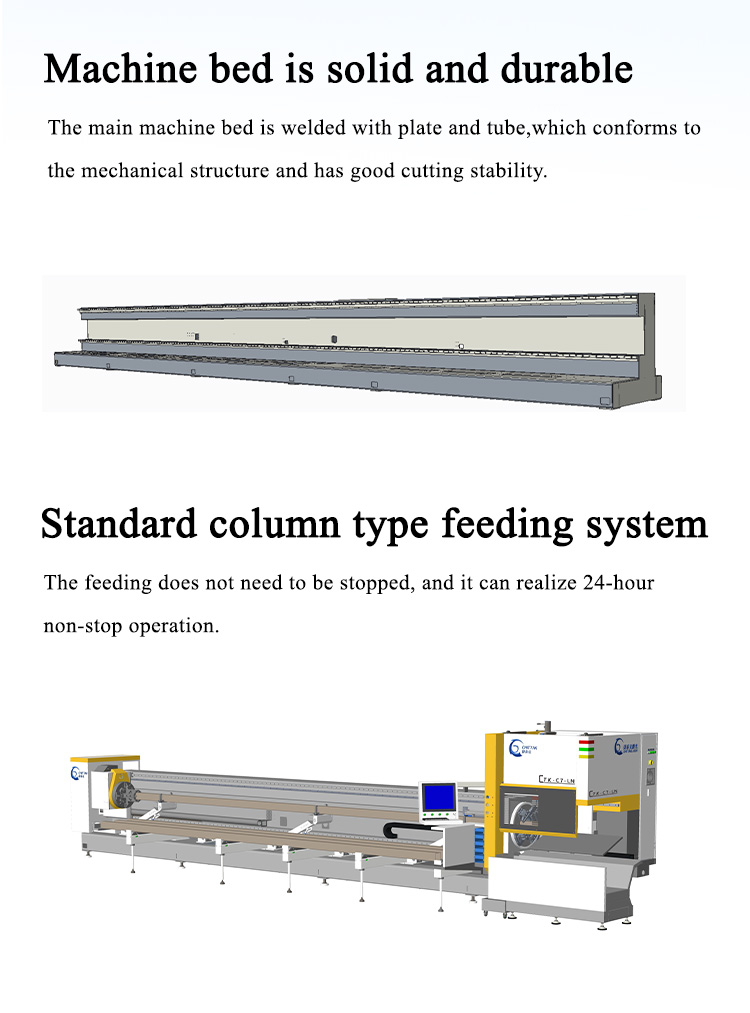

4.Automatic feeding of the metal pipe cutter: The structure of the side-mounted machine tool is equipped with a semi-automatic feeding machine as standard. The feeding does not need to be stopped, and it can realize 24-hour non-stop operation.
5.The machine diameter:
Whole weight（T） 6.3T
Full power consumption of the whole machine(KW） 20～25
Operating temperature（℃） 0-40
Processing stroke（mm） Round tube：φ12-φ220
Square tube:side length 12 mm-160 mm
Cutting seam width（mm） 0.1-0.2
Chuck one-time clamping stroke（mm） φ10-φ120（φ120-φ220 Shift one gripper）
Y/X/Z/U axis stroke （mm） 7000/150/250/infinite spin
Chittak has many other pipe processing products:Automatic 3D Laser Pipe Cutting Machine, Handheld Laser Welding Machine, Saw Blade Pipe Cutting Machine, Pipe Bending Machine, Pipe Chamfering Machine,Metal Plate Cutting Machine and Accessories like saw blade etc.. Welcome your enquiry and hope build the business relationship with you !
