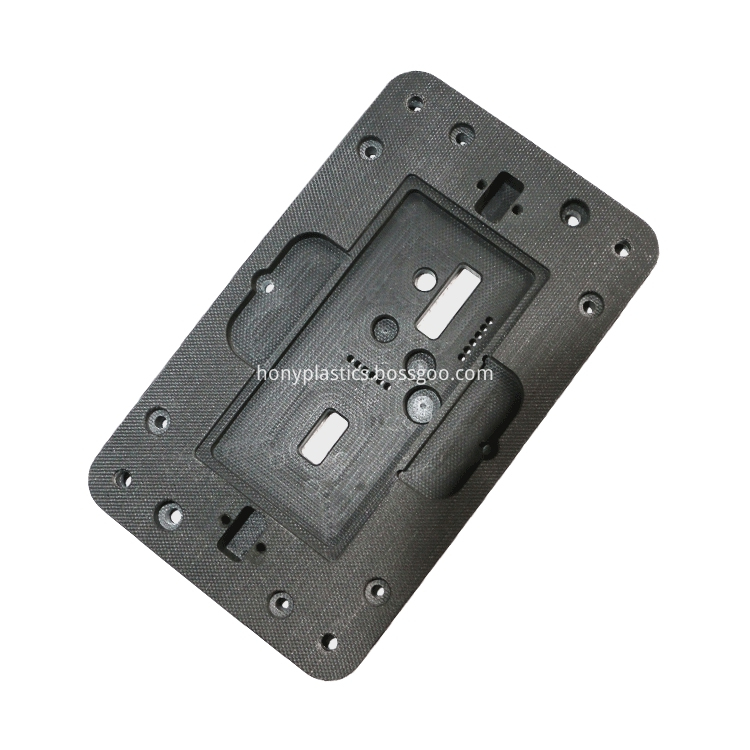

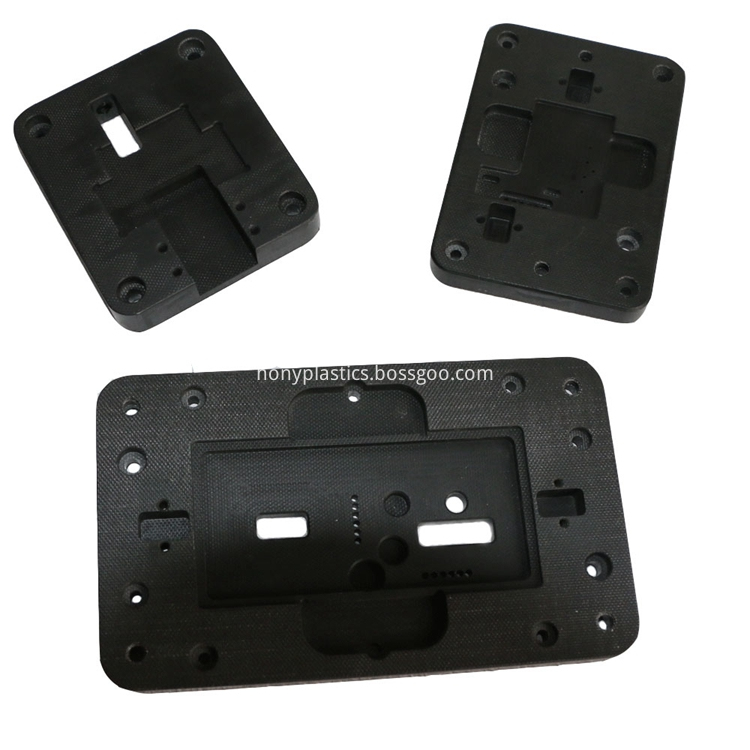

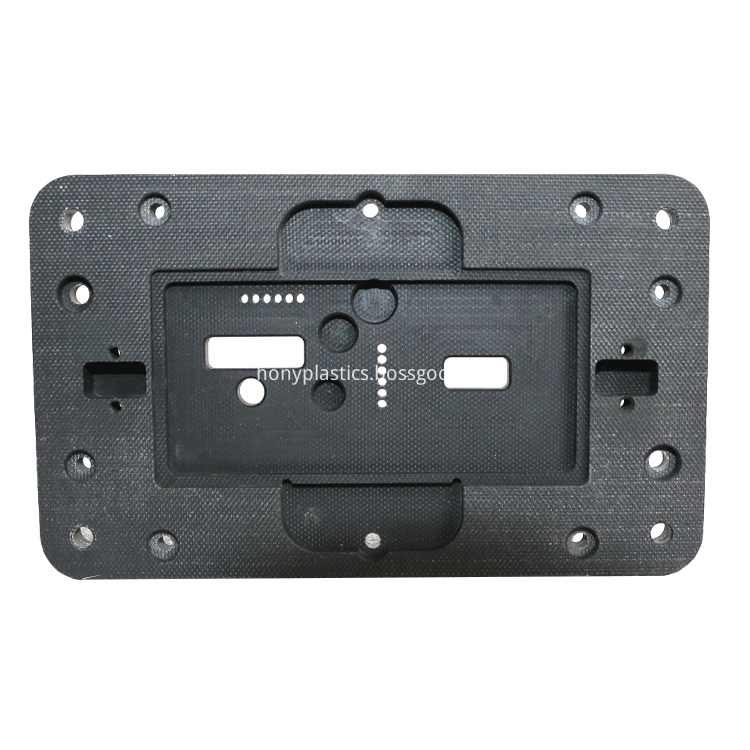

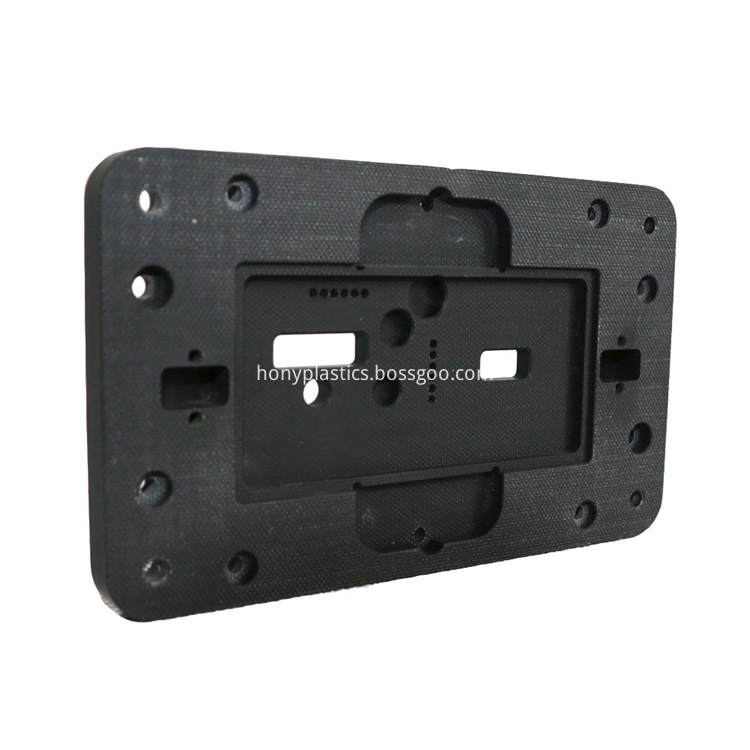

Wave Solder Pallet
3 year ago
HONY®6mm Matte Phenolic Black Bakelite Sheet for Stage Floor Plate Backed by a team of highly experience and expert professionals, we have been able to provide a wide range of quality assured Bakelite Sheet to the clients. Manufactured using premium quality raw material and cutting edge technology, offered fabric base is used in textile industry for making silent gears.
Features : High pressure temperature-resistant insulation bakelite sheet is strong, rigid and very economical. it has good electrical insulating properties and it's used in a wide range of electrical installations, in equipment where rigid electrical insulation is required.
The impact strength of temperature-resistant insulation bakelite sheet is not as high as materials in other groups and it's not usually chosen where toughness,bearing properties or high stress carrying capabilities are required. However, the lowest cost grades in this group represent excellent value as rigid non-metallic materials and it's used in a very wide range of less demanding. These materials offer an economic solution to engineering applications where good mechanical strength coupled with light weight and useful electrical resistance is required.

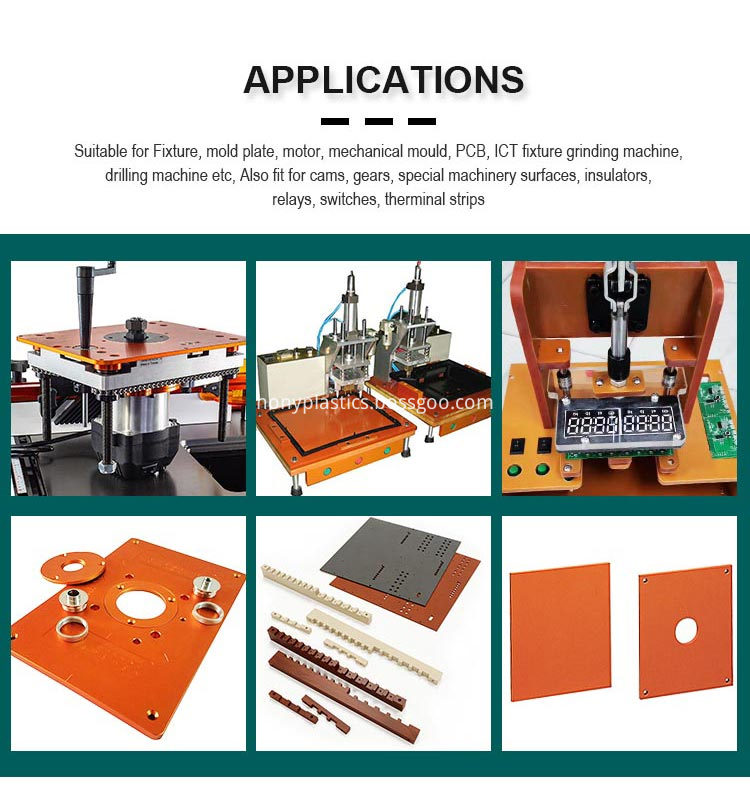

Laminate Bakelite Sheet Applications: Suitable for Fixture, mold plate,motor, mechanical mould, PCB, ICT fixture, grinding machine, drilling machine etc. Also fit for cams, gears, special machinery surfaces, insulators, relays, switches, terminal strips.
Product features: good mechanical strength, anti-static, intermediate electrical insulation, non-absorbent, non-conductive, high temperature resistance
Scope of application: mechanical transmission parts, precision mechanical parts, water-resistant parts, electronic and electrical parts, etc.
Application field: The product is suitable for insulating structural parts in motors and electrical equipment with high mechanical performance requirements, and can be used in transformer oil. With good mechanical strength, it is suitable for drilling backing plates, power distribution boxes, jig boards, mold splints, high and low voltage wiring boxes, packaging machines, combs, etc. in PCB industry. Suitable for motors, mechanical molds, PCBs, ICT fixtures. Forming machine, drilling machine, table polishing pad.
Phenolic Resin Laminate Color: black, red, etc.
Specification: Plate: thickness × width × length 3-100mm×1000mm×2000mm
Bar: Diameter×Length 8-100mm×1000mm
We are confidents to provide with CUSTOMIZED high quality bakelite products by our professional manufacturing team, manufacturing lines and experienced CNC router operators who have been engaged in this industry for more than 10 years.
HONY®Bakelite Properties Data Sheet
| Item | Unit | Value |
| Density | g/cm3 | 1.25-1.4 |
| Water absorption | mg | 180-197 |
| Flexural strength at perpendicular lamination | MPa | ≥120 |
| Dielectric stength at perpendicular lamination(Transformer oil at 90℃) | KV/mm | ≥15.80 |
| Breakdown voltage at parallel lamination (Transformer oil at 90℃） | KV | ≥35 |
| Dielectric constant(50Hz) | - | ≤5.5 |
| Proof tracking index(PTI) | - | ≥100 |
| Thermal index | - | 120 |

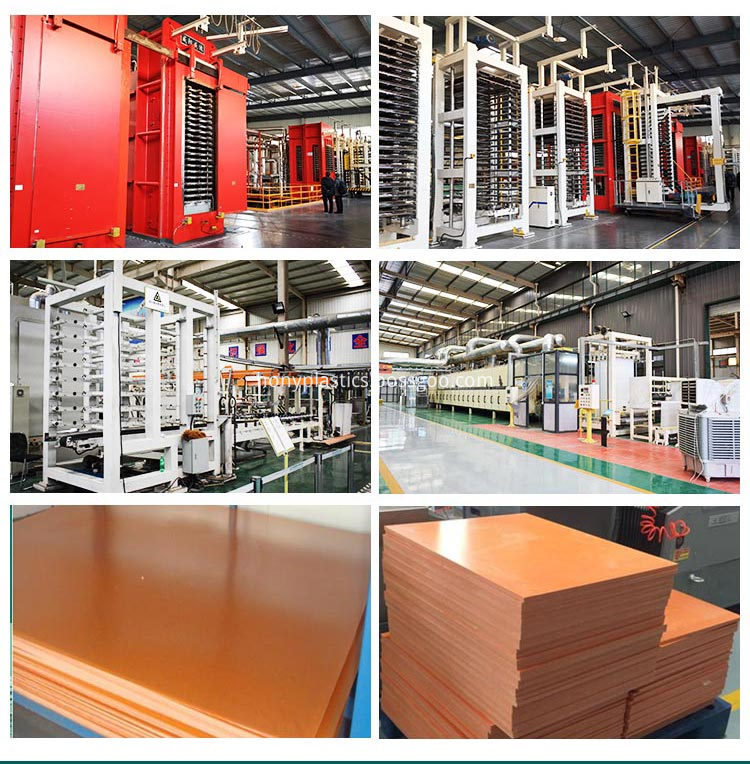

Bakelite Main Production
Machine
Package
