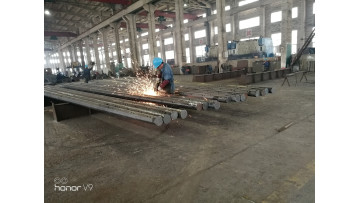

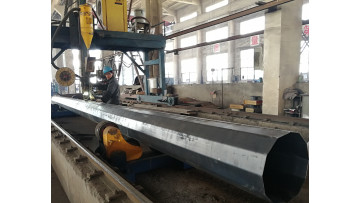

Manual Welding
2 year ago
|
Type |
Straight Pole ,Tensile Pole ,Turn Pole |
|
Suit for |
Electricity Network |
|
Shape |
polygonal |
|
Material |
Steel |
|
Torlance of dimenstion |
+- 2% |
|
Power |
10 KV ~550 KV |
|
Safety Factor |
Safety factor for conducting wine : 8 |
|
Design Load in Kg |
300~ 1000 Kg appliced to 50cm from the top pole |
|
Marks |
Name plate through rivert or glue ,engrave ,emboss as per customer requirement |
|
Surface treatment |
Hot dip galvanized with ASTM A 123, color as client required. |
|
Joint of Poles |
Insert mode,innerflange mode,face to face joint mode |
|
Design of pole |
Against earthquake of 8 grade |
|
Wind Speed |
160 Km/Hour . 30 m /s |
|
Minimum yield strength |
355 mpa |
|
Minimum ultimate tensile strength |
490 mpa |
|
Max ultimate tensile strength |
620 mpa |
|
Standard |
ISO 9001 |
|
Length of per section |
Within 14m once forming without slip joint |
|
Welding |
Welding Standard :AWS ( American Welding Society ) D 1.1 |
|
Thickness |
2.5 mm to 30 mm |
Besides these poles, our factory also produces 50FT-120FT Transmission poles, Steel Lighting Poles, Traffic Signal Poles, Substation Structures, Steel Crossarm, Steel Towers and other steel components.
To design the practical poles for customers use, normally we need customer to provide us some parameter, like as following :
- Pole top design load
- Where is the position of the load (the distance from the top)
- The wind Speed
- How will the wire distribute
- Pole type with Burial Type or Base Plate type
- The connections mode , use slip joint or flange
- and others we can further more discuss when we need.
