hydraulic grapple atv log wood timber crane loader
3 year ago
factory directly supply Palm fruit crane grabber
forestry machine Hydraulic log grab/timber crane grab trailer 4.2/4.7/5.5/6.5/7m timber crane log trailer
Hydraulic log grab/timber grab trailer timber crane with log trailer is an attachment that allows you to grab tree trunks,branches, wood waste and transport them both lengthwise and crosswise. This makes it possible to pass through narrow places also with long logs and enables loading on trailer or on a pile in any direction. Timber grab is available either with a hydraulic rotator or as freely rotating version. The grab with hydraulic rotator is equipped with an electric solenoid valve for selection between grab opening/closing and rotator.

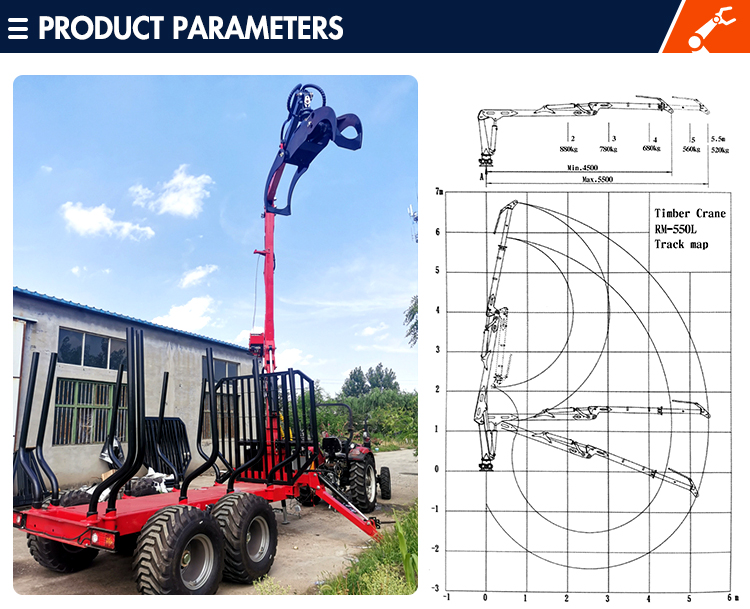

Product Parameter
| Timber Crane | |||||||
| Model | RM/TC420 | RM/TC470 | RM/TC550L | RM/TC650L | RM/TC700Z | RM/TC760 | RM/TC780Z |

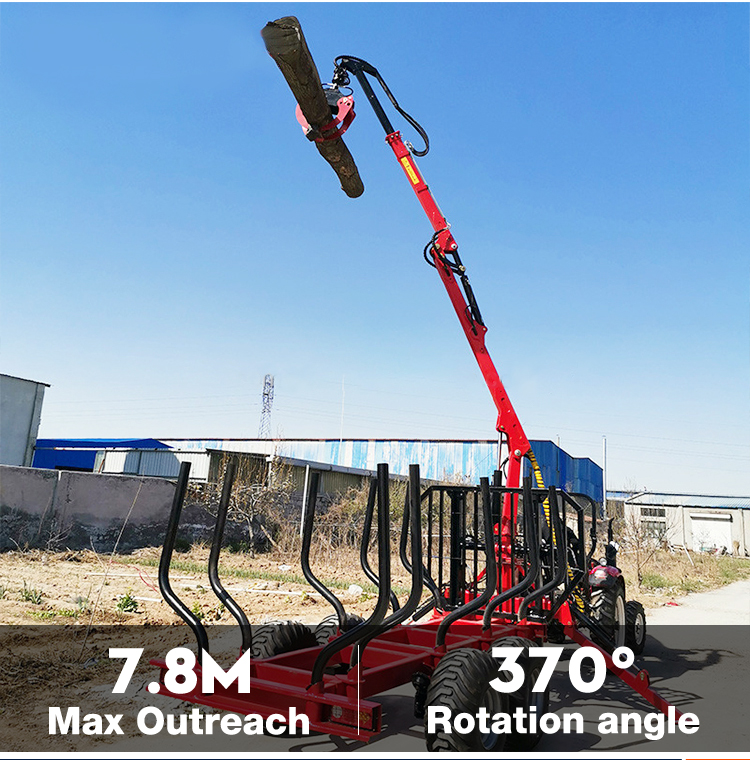

| Max Outreach(M) | 4.2 | 4.7 | 5.5 | 6.5 | 7 | 7.6 | 7.8 |
| Slewing torque(KNm) | 8 | 8 | 10 | 10 | 22 | 24 | 24 |
| Rotation angle(°) | 370° | 370° | 370° | 370° | 370° | 370° | 370° |
| Number of rotating cylinders | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Lifting capacity at 4 m(KG) | 500 | 580 | 680 | 930 | 1650 | 1020 | 1650 |
| Lifting capacity at full reach(KG) | 480 | 510 | 520 | 550 | 860 | 450 | 580 |
| Telescopic arm(M) | none | none | 1 | 1.3 | 2.1 M (two sections ) | 2.5 M (two section s) | 2.5 M (two sections ) |
| Hydraulic oil flow(L/min) | 15-35 | 20-40 | 25-50 | 30-50 | 40-60 | 35-60 | 40-80 |
| Working pressure(mpa) | 18 | 18 | 18 | 18 | 18 | 18 | 18 |
| Rotary motor | GR-10(1T) | GR-10(1T) | GR-30(3T) | GR-30(3T) | GR-30(3T) | GR-30(3T)/GR35F(3.5T) | GR-30(3T)/GR35F(3.5T) |
| Grab | TG16 | TG16 | TG18 | TG18 | TG20 | TG20 | TG26 |
| Total weight( without support, gripping tool and valve),KG | 480 | 505 | 636 | 700 | 1020 | 1020 | 1150 |
| type outriggers weight( KG) | 175 | 175 | 175 | 175 | 195 | 225 | 225 |
| A type outriggers weight( KG) | 160 | 165 | 170 | 170 | 195 | 215 | 215 |
| M type outriggers weight(KG) | 270 | 270 | 270 | 270 | 290 | 310 | 310 |
