AW3000-02 Pneumatic Filter Regulator
3 year ago
FRL FRC AW Series Air Filter Regulator Lubricator
To protect the system and equipment, it is recommended that all pneumatic systems have one or more air preparation components installed. BRANDO offers air filters, air regulators, and air lubricators for all pneumatic systems.
A pneumatic Filter/Regulator combination unit is an excellent choice for air preparation applications that require accurate pressure regulation and high moisture removal efficiency in a compact solution.
BRANDO’s combined Filter/Regulator designs - remove rust, scale, condensed water and other debris, and regulates to provide controlled and constant pressure in compact unit.
Specification of AW series Filter Regulator Lubricator:
| Model | AC1010 | AC2010 | AC3010 | AC4010 | AC4010-06 | |
|
Combination Equipment |
Filter Regulator | AW1000 | AW2000 | AW3000 | AW4000 | AW4000-06 |
| Lubricator | AL1000 | AL2000 | AL3000 | AL4000 | AL4000-06 | |
| Port Size | M5 |
1/8'' 1/4'' |
1/4'' 3/8'' |
1/4'' 3/8'' 1/2'' |
3/4'' | |
| Gauge Port Size | 1/16'' | 1/8'' | 1/8'' | 1/4'' | 1/4'' | |
| Fluid | Air | |||||
| Proof Pressure | 1.5 MPa | |||||
| Max Operating Pressure | 1.0 MPa | |||||
| Set pressure range | 0.05 to 0.7 MPa | 0.05 to 0.85 MPa | ||||
| Flow (L/MinANR) | 90 | 500 | 1700 | 3000 | 3000 | |
| Ambient And Fluid Temperature | -5 to 60 ℃ (Non-freezing) | |||||
| Filtration | 5μm | |||||
| Recommand Lubricant | Turbin oil class (ISO BG32) | |||||
| Bowl Material | Polycarbonate | |||||
| Construction/Regulator | Relieving style | |||||

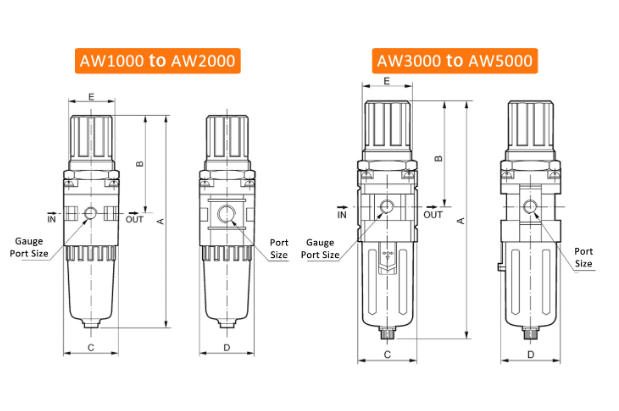

Dimension of AW series Filter Regulator Lubricator:
Combinations of AW series Filter Regulator Lubricator:
|
Model
|
Port Size
|
A
|
B
|
C
|
D
|
E
|
|
AW1000
|
M5
|
109.5
|
50.5
|
25
|
28
|
28
|
|
AW2000
|
G1/8'', G1/4''
|
164
|
78
|
40
|
40
|
34
|
|
AW3000
|
G1/4'', G3/8''
|
211
|
92.5
|
53
|
53
|
40
|
|
AW4000
|
G3/8'', G1/2''
|
262
|
112
|
70
|
70
|
54
|
|
AW4000-06
|
G3/4''
|
267
|
114
|
70
|
70
|
54
|
|
AW5000
|
G3/4'', G1''
|
338
|
116
|
90
|
90
|
54
|
Other Pneumatic Products BRANDO supply:

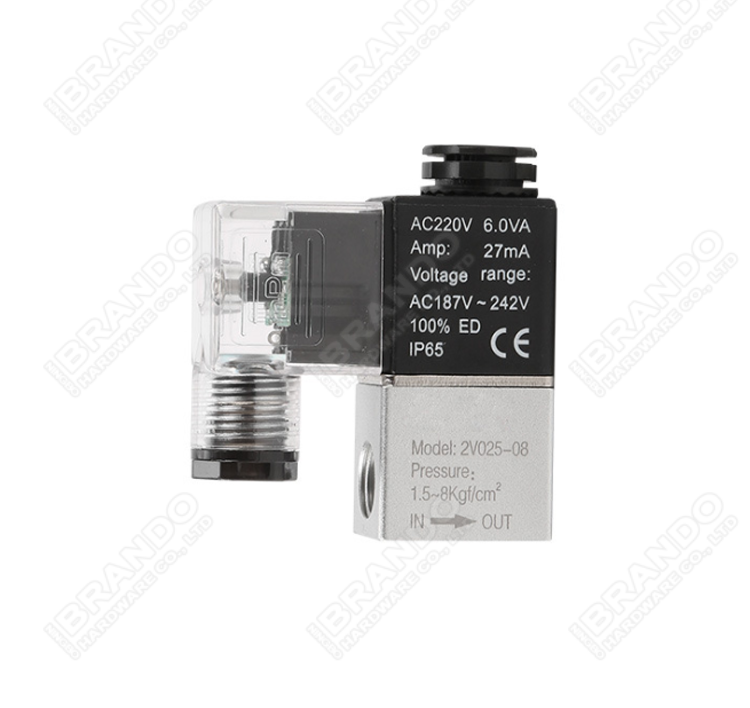

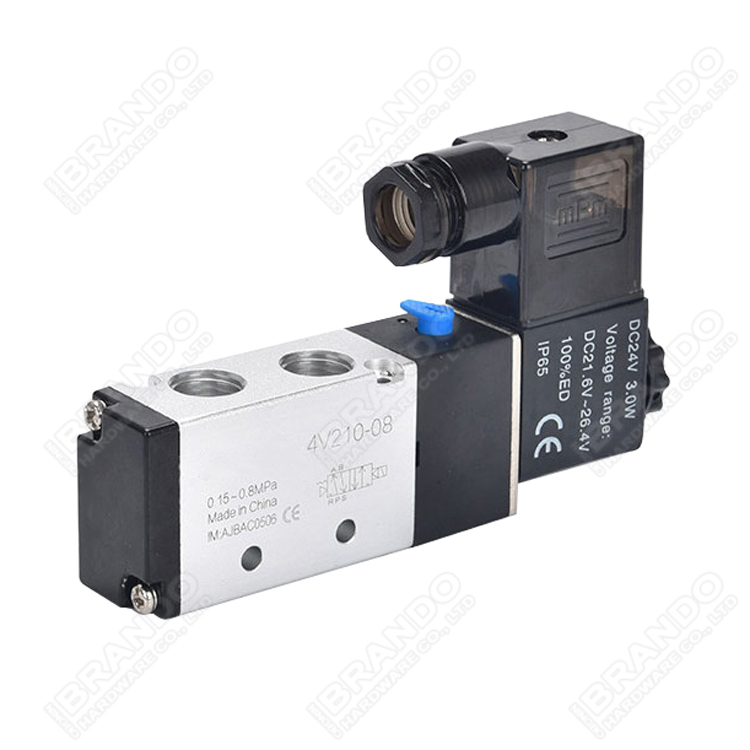

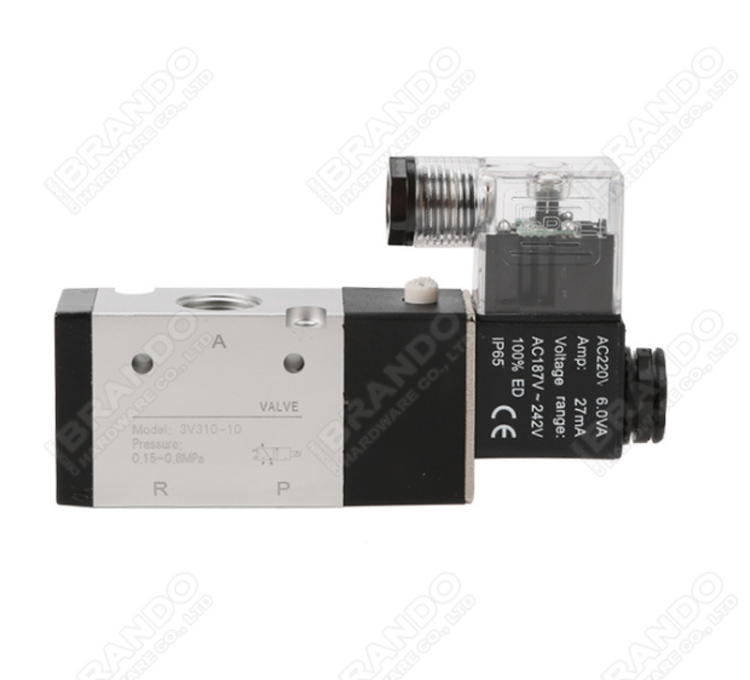

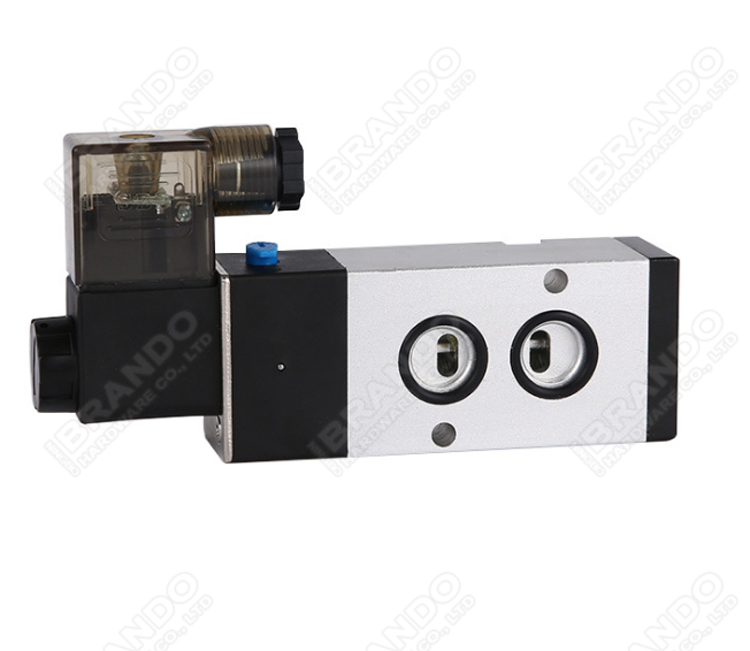

| 2/2 Way Pneumatic Valves | 3/2 Way Pneumatic Valves | 5/2 Way Pneumatic Valves | 5/3 Way Pneumatic Valves |
|
|
|
|

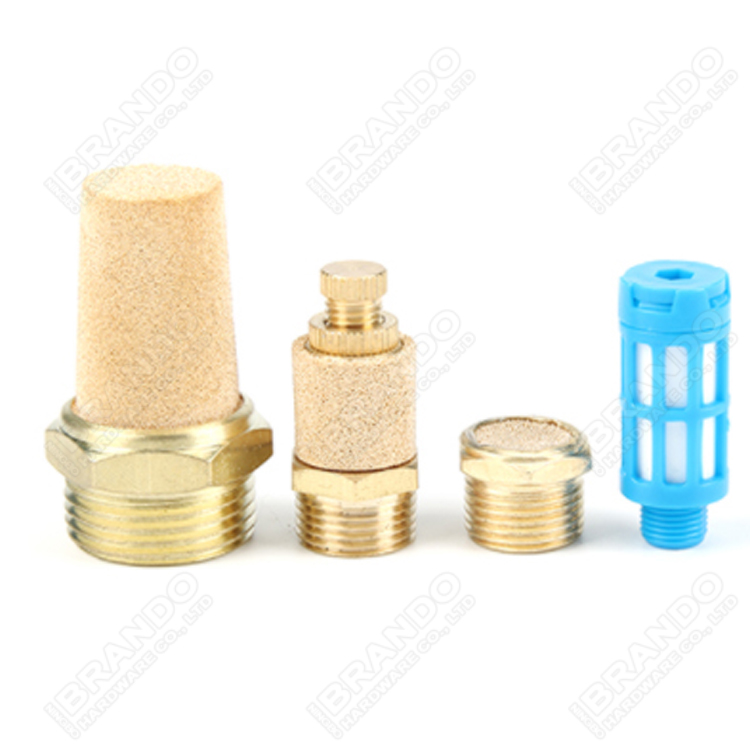

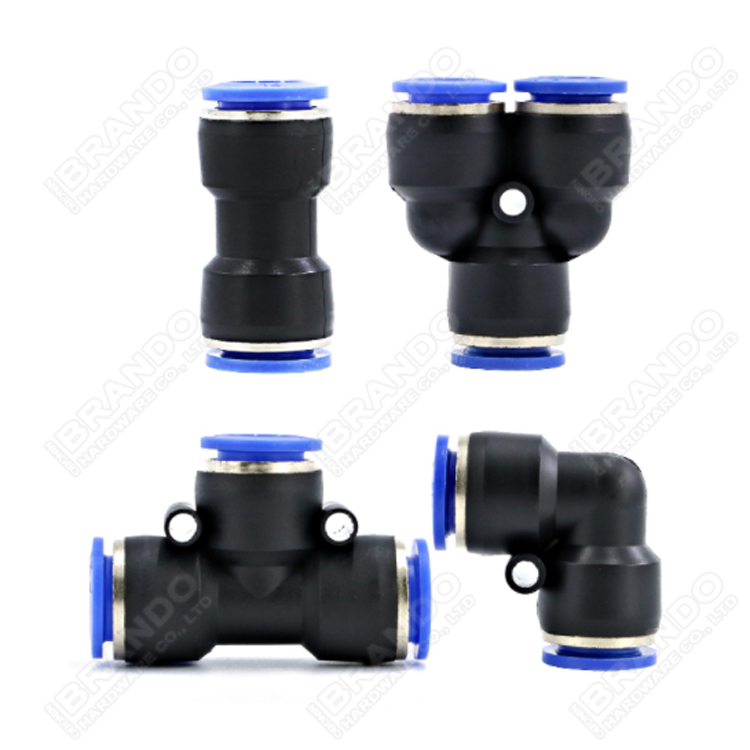

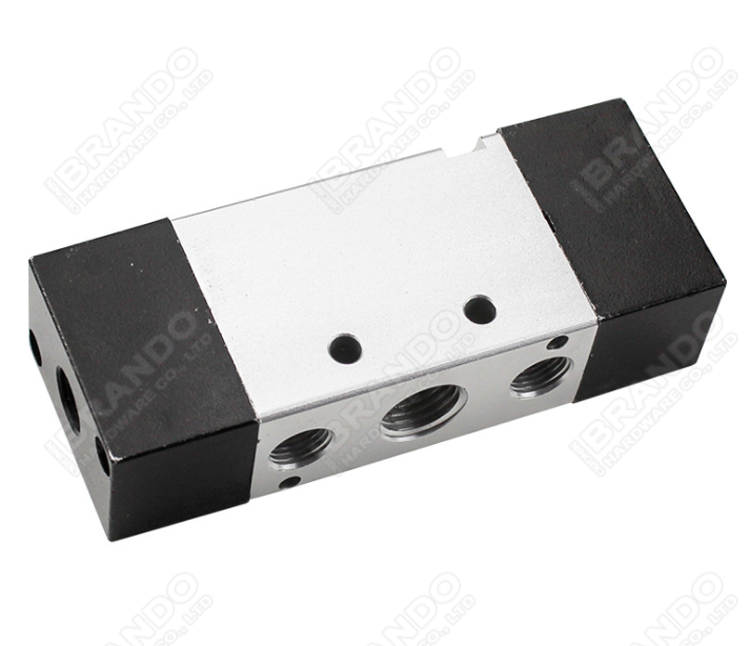

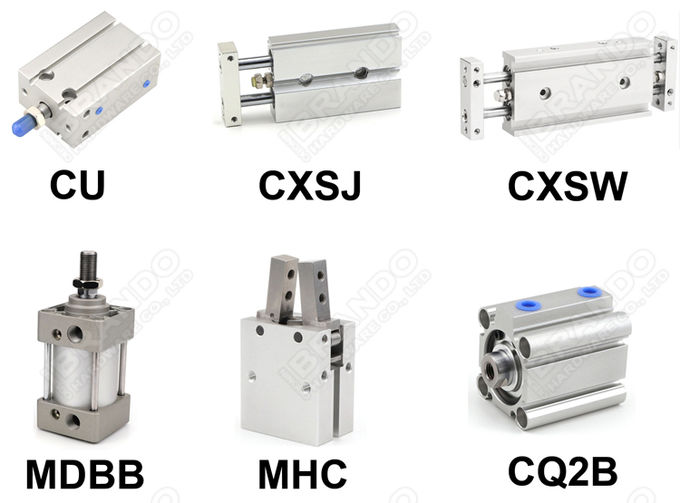

| Namur Solenoid Valves | Air Pilot Valves | Pneumatic Cylinders | Silencers and Fittings |
|
|
|

|
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
