BC2000-02 Pneumatic Filter Regulator Lubricator
3 year ago
Airtac Type BC2000 Series Air Filter Regulator Lubricator
Product Featres of AC, BC series FRL Unit:
1. The structure is delicate and compact, which is convenient for installation and application.
2. The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
3. The pressure loss is low and the efficiency of water separating is high.
4. The quantity of oil dripping can be directly observed through transparent check-dome.
5. In addition to standard type, lower pressure type is optional (The highest adjustable pressure is 0.4MPa).
Specification of AC, BC series Filter Regulator Lubricator:
| Model | AC1500 | AC2000 | BC2000 | BC3000 | BC4000 | |
| Fluid | Air | |||||
| Port Size | 1/8'' | 1/4'' | 1/4'' | 3/8'' | 1/2'' | |
| Filtering Grade | 40μm or 5μm | |||||
| Pressure Range |
Semi-auto and automatic drain: 0.15 to 0.9 MPa (20 to 130 psi) Manual drain: 0.5 to 0.9 MPa (7 to 130 psi) |
|||||
| Max Pressure | 1.0 MPa (145 psi) | |||||
| Proof Pressure | 1.5 MPa (215 psi) | |||||
| Temperature Range | -5 to 70℃ (unfreeze) | |||||
| Capacity of drain bowl | 15CC | 60CC | ||||
| Capacity of oil bowl | 25CC | 90CC | ||||
| Recommand lubricant | ISO VG 32 or equivalent | |||||
| Constitute | Filter | AF1500 | AF2000 | BF2000 | BF3000 | BF4000 |
| Regulator | AR1500 | AR2000 | BR2000 | BR3000 | BR4000 | |
| Lubricator | AL1500 | AL2000 | BL2000 | BL3000 | BL4000 | |
Ordering Code of AC, BC series Filter Regulator Lubricator:

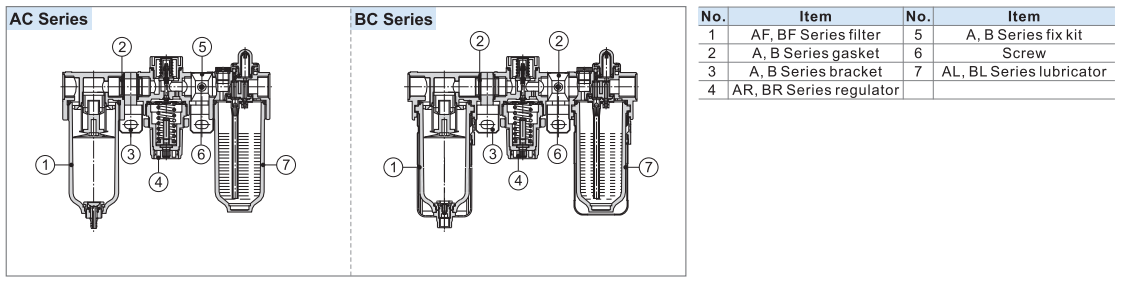

Inner Structure of AC, BC series Filter Regulator Lubricator:

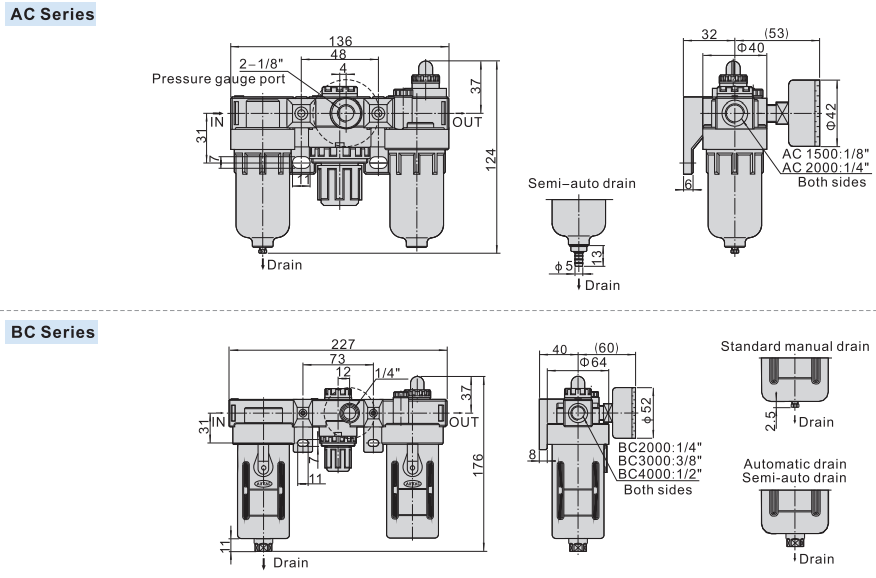

Dimension of AC, BC series Filter Regulator Lubricator:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
