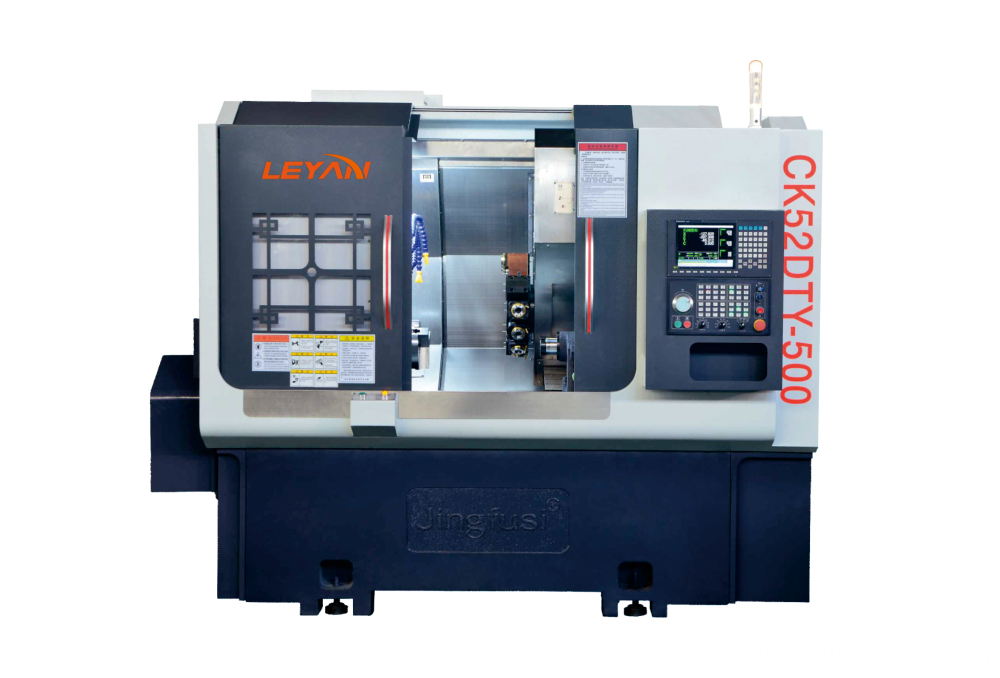

CK52DTY-500 High-speed Turrent Turning and Milling machine
Purpose of Cnc Auto Lathe machine tool design: High-stability, high-speed and high-standard Automatic Turning Machine tool is the only purpose, and turning product surface has mirror highlights (turning mirror lighting)and cutter grinds find and smooth, reaching the state of no grain which is invisible with the naked eyes. The stability of Automatic Lathe machine tool enables the cutter to become obviously durable, and the damage to the cutting edge slows down. The Cnc Lathe machine tool is designed with the principle of imported Lathe Machining tool; it can be used only by changing part of vulnerable parts and will not be strapped other several decades.
Specification：
ITEM
SPECIFICATIONS
UNIT
CK76DTY-500
Capacity
Max.swing
mm
Ø700
Swing over cross slide
mm
Ø75
Spindle
Type of spindle nos
/
A2-8
Through spindle hole diameter
mm
Ø86
Spindle speed range
rpm
3200
Spindle motor type
rpm
1～2000
Feedrate
X-axis travel
mm
230
Z-axis travel
mm
600
Y-axis travel
mm
150
Y-axis travel
mm
60+60=120
Rapid traverse
m/min
24
Rapid traverse
m/min
16
Rapid traverse
m/min
15
Guide way
mm
40
Guide way
mm
35
Guide way
mm
45
Turret
Center height of turret
mm
100
Number of tool stations
/
12 or 16
Spindle motor (30min/cont) KW(HP)
Spindle motor (30min/cont) KW(HP)
KW
15
Const torque
NM
29Nm (1500 r/min)
X/Z/Y-axis feed motor
KW
2.9
Max. spindle torque
NM
18.6
Tailstock
Tailstock movement
mm
520
Quill stroke
mm
100
Quill inside taper
MK
5#
Distance between tip and chuck
mm
690
Machine dimensions(L*W*H
m
2.5x1.9x2.12
Mass of machine
KG
4850
Power supply
kw
20
Average power consumption
kw/h
3
Repeatability (PS) X 、Y 、Z
x-axis
mm
0.003
z-axis
mm
0.003
y-axis
mm
0.004
Main parts brand:
Product
Place of origin
Brand
System
TAIWAN
SYNTEC 21TB CNC Controller
magnet ring encoder
TAIWAN
SYNTEC
Spindle Bearing
Japan
NSK
Tool turret
TAIWAN
SWIFT
Ball screw
TAIWAN
HIWIN/PMI
Ball screw bearing
TAIWAN
HIWIN/PMI
Linear guideway
TAIWAN
HIWIN/PMI
Hydraulic parts
TAIWAN
ZHANG PIN
Main electricity parts
FRANCE
Schneider
Optional configuration:
- Automatic chip conveyor
- Automatic bar feeder
